ASCO™ Series 055 Isolation Valves

Contact Sales

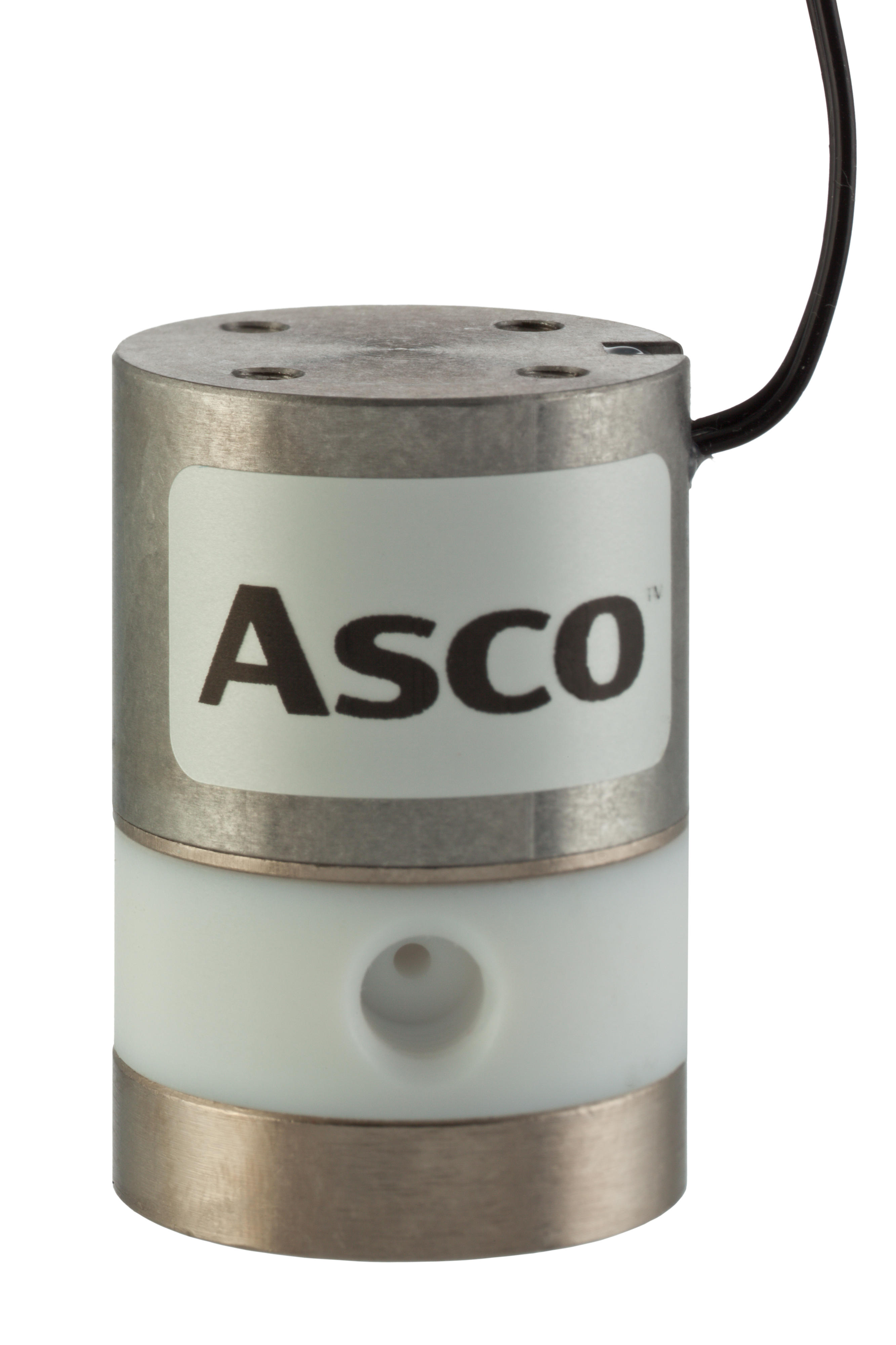

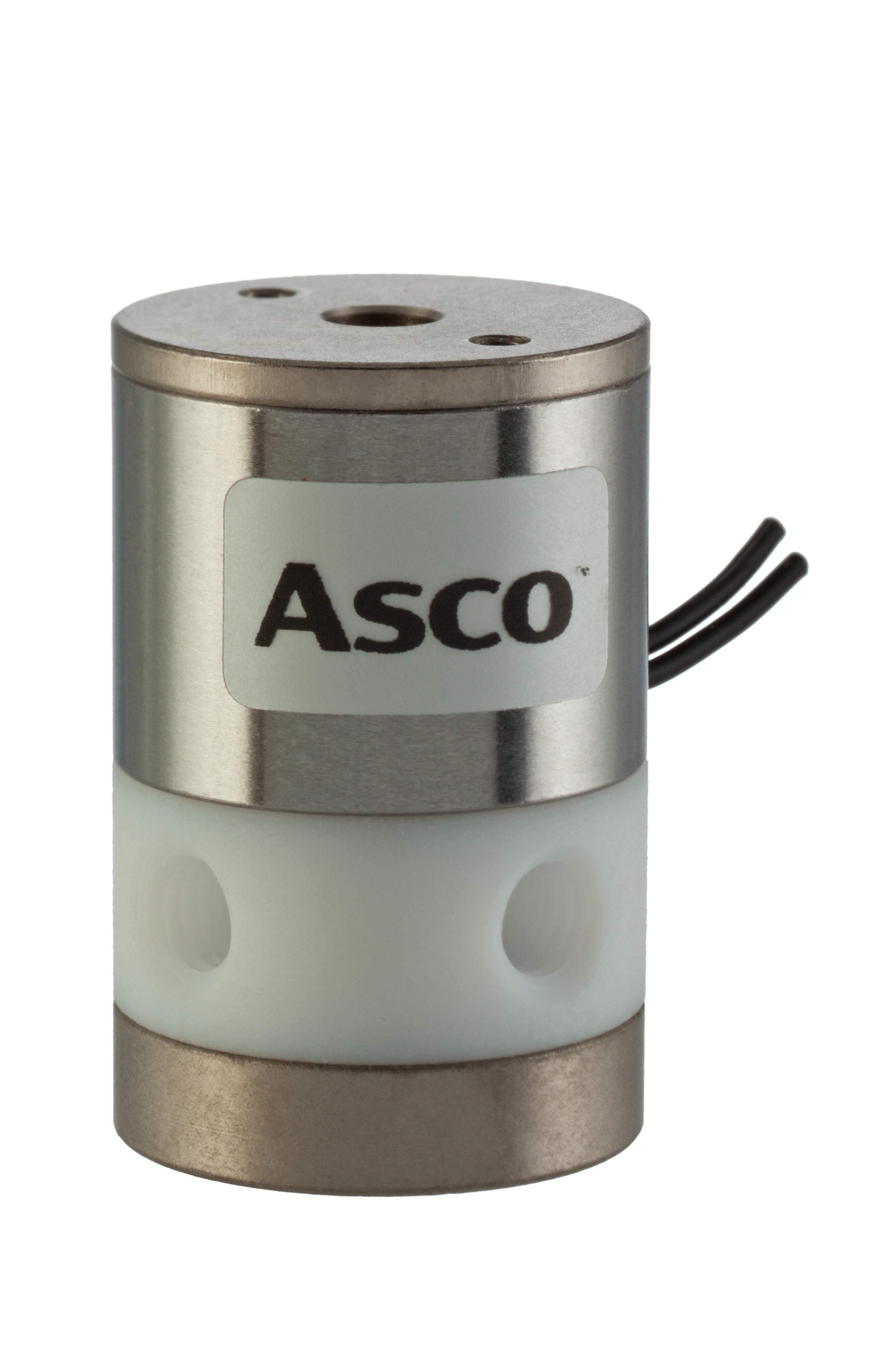

The ASCO Series 055 are PTFE fluid isolation valves designed for use with highly aggressive liquids. The PTFE body and diaphragm isolate the internal solenoid components from the media resulting in a virtually impervious valve. Typical applications include chromatography, solvent selection/diversion, sample preparation, and DNA sequencing.

Specifications

Valve ActuationSolenoid - Direct Acting
Body Material
MediaAggressive Liquids/Gases
Pipe / Port Size10-32 "; 1/4-28 "
Function2 way - 2/2 Normally Closed; 2 way - 2/2 Normally Open; 3 way - 3/2 Universal
FlowLess than .05 Cv; From .05-.1 Cv; 0.1 Cv to 0.5 Cv
Voltage12 DC; 24 DC
Max Differential / Max Operating PressureVacuum to 150 PSIG
