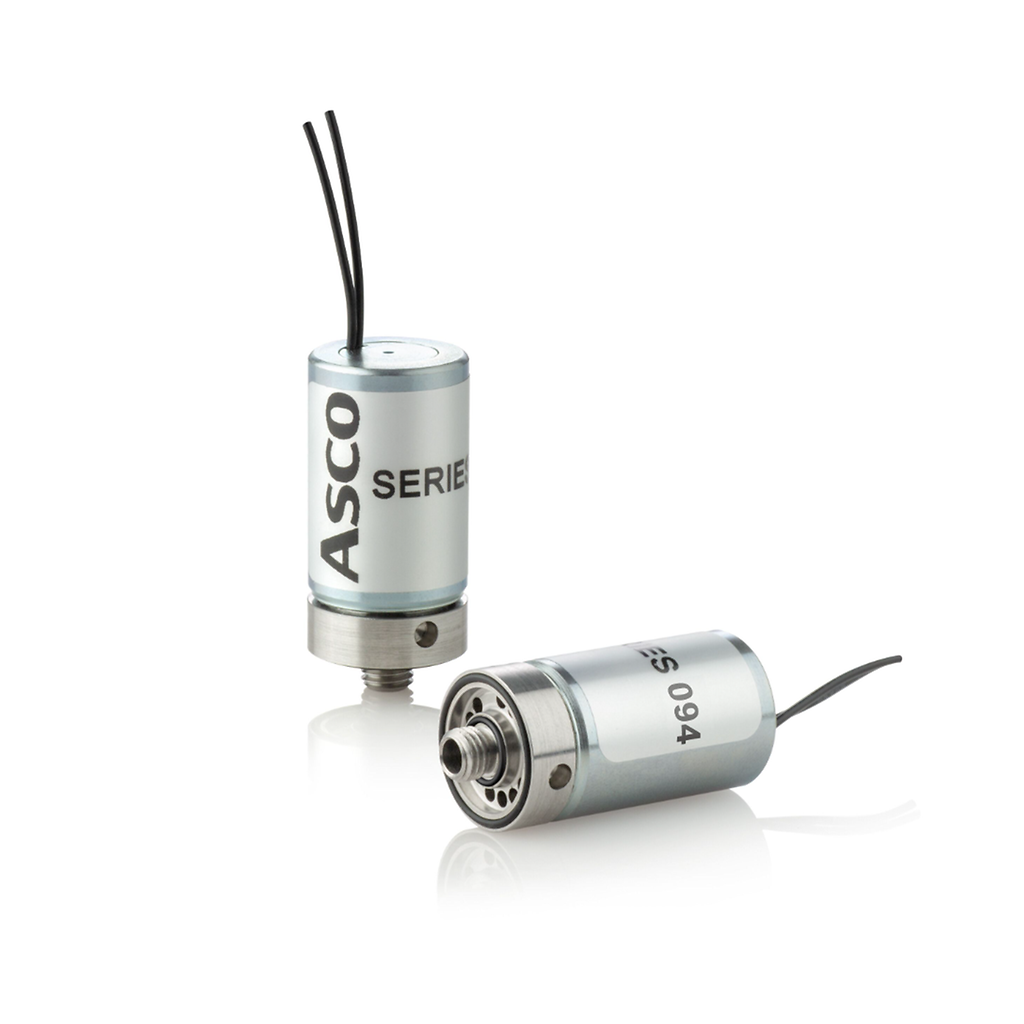

ASCO™ Series 094 Miniature Solenoid Valves

The ASCO Series 094 solenoid valves are designed for use with air and inert gases. Their compact, light weight architecture and low power consumption make them extremely-suited for multiple disciplines. The valves are engineered for long service life of hundreds of million cycles. The 094 series valves provide high flow rates, easy assembly and reliable performance. Typical applications include respiratoty therapy, patient monitoring, therapeutic support surfaces, and industrial gas analyzers.

Specifications

Valve ActuationSolenoid
MediaAir, Inert Gas
Body MaterialStainless Steel
Function2 way- 2/2 Normally Closed, 3 way- 3/2 Normally Closed, 3 way- 3/2 Universal
Pipe / Port SizeM5, 10-32, 1/4"-28 manifold
Port TypeManifold, In-Line
Voltage12 VDC, 24 VDC
FlowFrom 0.014 to 0.289 Kv (0.016 to 0.325 Cv)
Max Differential / Max Operating PressureVacuum to 6.9bar (100 psi)
Operating EnvironmentIndoor, Corrosive
