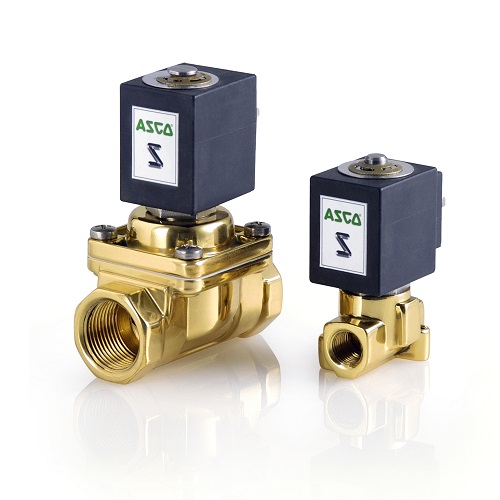

ASCO™ 240 Steam and Hot Water Solenoid Valves

The ASCO Series 240, also known as 8240, is a line of 2-way normally-closed and normally-open, pilot-operated and direct-acting valves designed to handle the challenges of high-temperature fluids such as steam and hot water. Available in AC voltages, with brass bodies, these valves are suitable for commercial kitchen, laundry, and heating equipment applications.

Specifications

Valve ActuationSolenoid; Solenoid - Direct Acting
Body MaterialBrass
MediaHot Water; Steam
Pipe / Port Size1/2 "; 3/4 "; 3/8 "; 1 "
Port TypeNPTF
Function2 way - 2/2 Normally Closed; 2 way - 2/2 Normally Open
FlowFrom 0.1 Cv to 0.5 Cv; From 2.0 Cv to 6.0 Cv; From 6.0 Cv to 14.0 Cv
Voltage110 AC; 24 AC; 120 AC; 220 AC; 12 DC; 24 DC; 115 AC; 208 AC; 480 AC | 50; 50/60; 60
Max Differential / Max Operating PressureVacuum to 10.3 Bar; Vacuum to 150 PSIG
Operating EnvironmentIndoor
Standards / RegulationsCSA; UL
