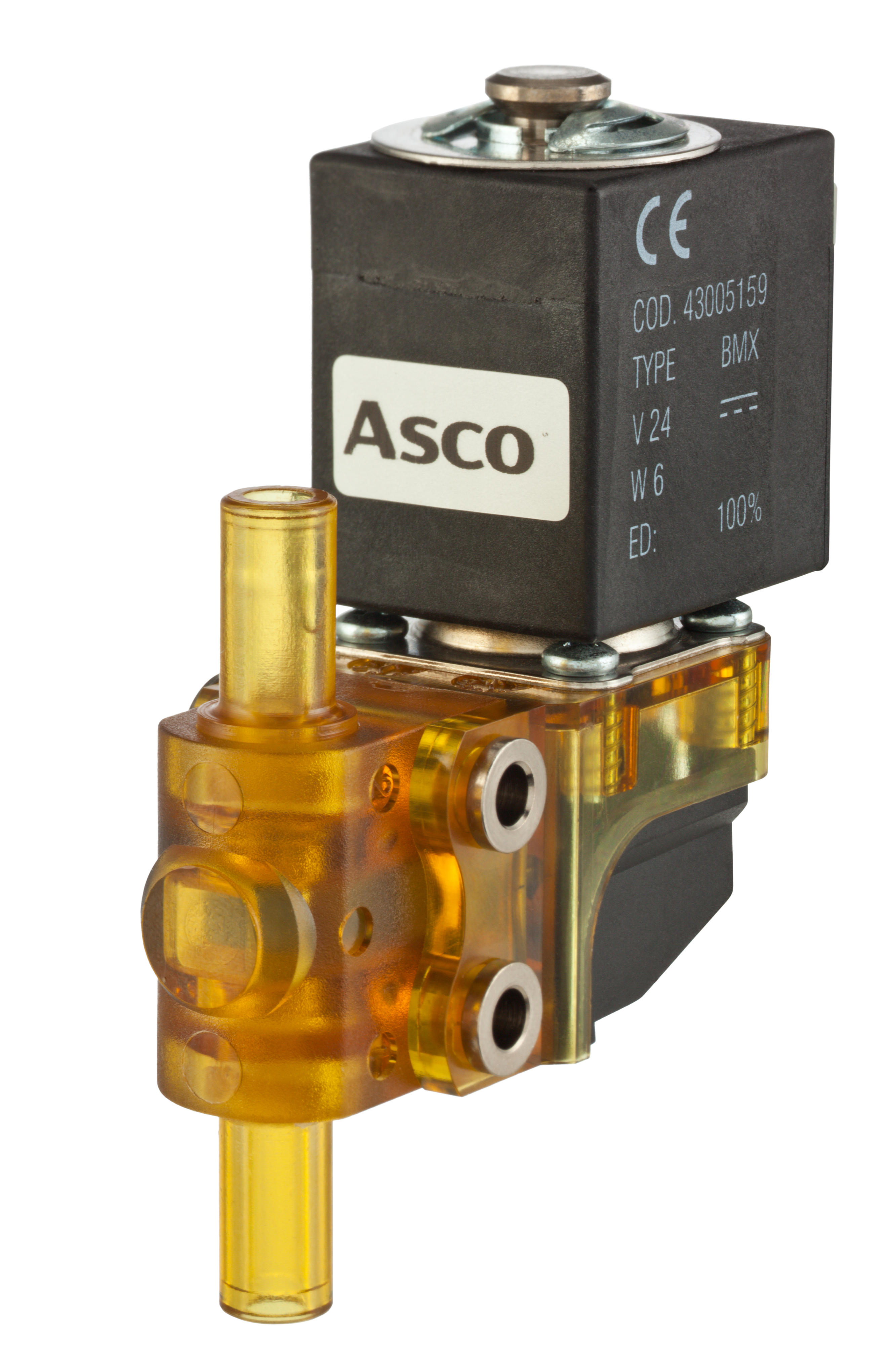

ASCO™ Series 283 Fluid Isolation Solenoid Valves

The ASCO Series 283 lever mechanism isolation valves are ideally suited for quickly flushing systems of corrosive media and routing aggressive reagents to chemical reaction vessels and waste containers. They are capable of handling a variety of media with several body and diaphragm material options. Typical applications include raw-material chemical manufacturing, biopharmaceutical production, chip/wafer processing, wastewater treatment, and medical analyzers.

Specifications

Valve ActuationSolenoid
Body MaterialEngineered Plastics
MediaAggressive Liquids/Gases
Pipe / Port Size1/4 "; 1/8 "; 8 mm
Port TypeG ISO228/1-G BSPP
Function2 way - 2/2 Normally Closed; 2 way - 2/2 Normally Open
FlowFrom 0.1 Cv to 0.5 Cv; From 0.5 Cv to 1.0 Cv; From 2.0 Cv to 6.0 Cv; From 6.0 Cv to 14.0 Cv
Voltage12 DC; 24 DC; 24 to 120 AC/DC Voltage Ranging | 50; 60
Max Differential / Max Operating PressureVacuum to 150 PSIG
Operating EnvironmentIndoor
Standards / RegulationsIP65
