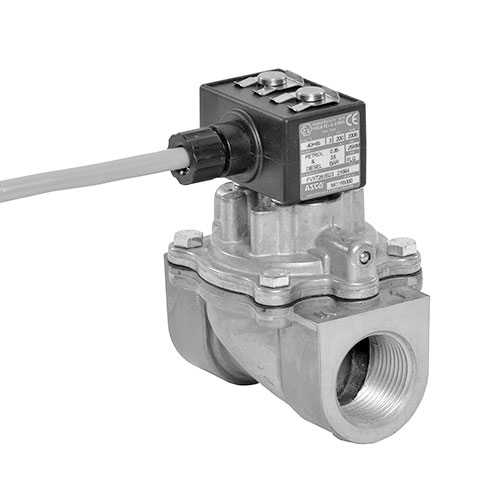

ASCO™ 292 Petrol Vending Solenoid Valve

The ASCO Series 292 is a line of compact aluminum-bodied single and dual-flow solenoid valves designed specifically for petrol vending applications. The valves offers three flow positions: full flow, low flow, and shut off.

Specifications

Valve ActuationSolenoid
Body MaterialAluminum
Pipe / Port Size3/4 "; 1 "
Port TypeG ISO228/1-G BSPP
Function2 way - 2/2 Normally Closed
Voltage24 DC; 48 DC; 24 AC; 115 AC; 230 AC | 50/60; 50
Max Differential / Max Operating PressureVacuum to 10.3 Bar; Vacuum to 150 PSIG
Operating EnvironmentHazardous
