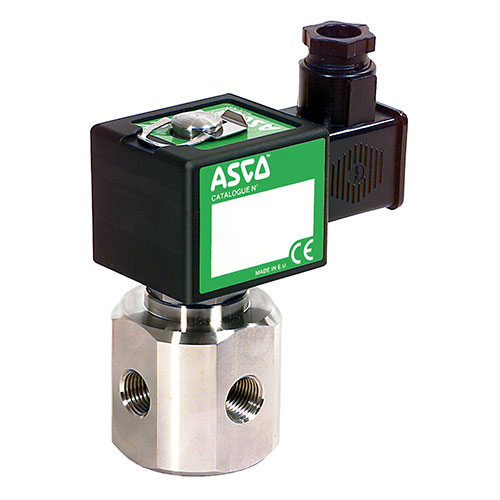

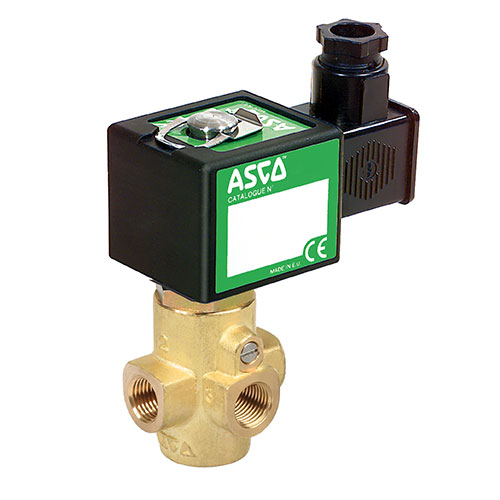

ASCO™ 370 3-Way 2-Position Solenoid Valve

Contact Sales
The ASCO Series 370 are solenoid valves with three ports in their bodies enabling convenient installation. They incorporate a reliable, proven compact design. The 370 Series offers a wide range of enclosures to suit all environments, plus a variety of elastomers for specialty service. The valves are suitable for oil and gas and power applications.

Specifications

Valve ActuationSolenoid - Direct Acting, Solenoid
Body MaterialBrass, Stainless Steel
MediaAir, Inert Gas, Light Oil, Water
Pipe / Port Size1/4 "
Port TypeG ISO228/1-G BSPP
Function3/2 Normally Closed, 3/2 Normally Open, 3/2 Universal
FlowFrom .04 to .2 Kv, From .2 to .43 Kv
Voltage100 to 240 AC/DC Voltage Ranging, 12 to 24 DC Voltage Ranging, 48 DC, 115 AC, 24 AC, 24 to 120 AC/DC Voltage Ranging
Max Differential / Max Operating Pressure10.3-34.5 Bar, 150-500 PSIG
Standards / RegulationsISO, IEC 60529 (Ingress protection), IP65
