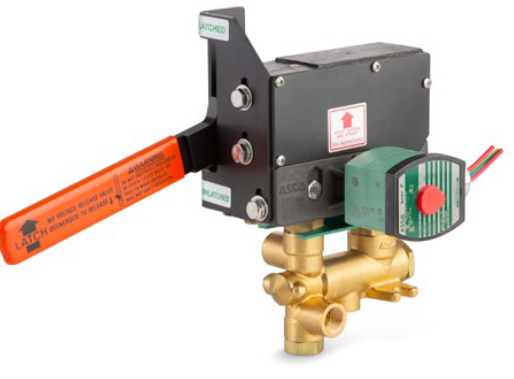

ASCO™ 408 Brass Manual Reset Solenoid Valves

The ASCO Series 408 brass solenoid valves are no-voltage release, manual reset versions of ASCO´s rugged 342 Series and 344 Series (1/4-inch and 3/8-inch NPT) solenoid valves. Once tripped, they can only be manually reset to automatic operation. They are suitable for applications such as refining and bottling.

Specifications

Valve ActuationManual Reset
Body MaterialBrass
MediaAir, Inert Gas, Light Oil, Water
Pipe / Port Size1/4 "; 1/2 "; 3/8 "; 3/4 "; 1 "
Port TypeNPTF
Function4 way - 4/2
FlowFrom .04 to .2 Kv, From .2 to .43 Kv, From .43 to .86 Kv, From .86 to 1.73 Kv, From 1.73 to 5.19 Kv
Voltage24 AC, 110 AC, 6 DC, 12 DC, 24 DC, 48 DC, 120 DC, 240 AC, 120 AC
Max Differential / Max Operating PressureVacuum to 150 PSIG, 150-500 PSIG
Operating EnvironmentIndoor, Outdoor, Hazardous
Standards / RegulationsATEX Zone 0-20, Class I Div 1, Class I Div 2, CSA, IEC Ex Zone 0-20, Type 1, Type 3, Type 9, Type 7
