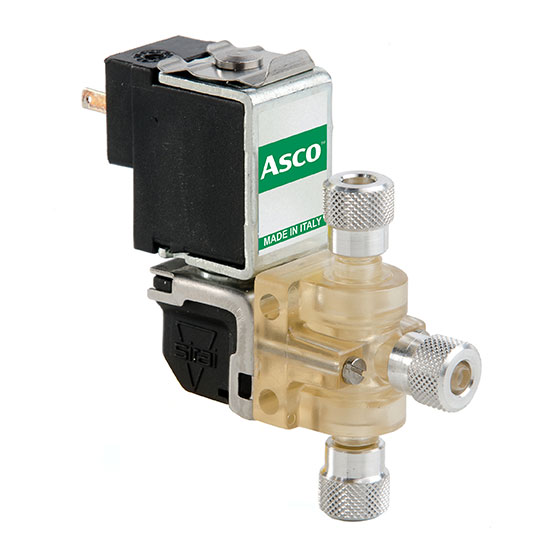

ASCO™ Series D301 Total separation solenoid valves (DRY)

ASCO Series D301 total isolation solenoid valves (DRY) combine the traditional characteristics of strength and reliability, with construction solutions that make them particularly suitable for the control of aggressive and/or no contaminable fluids. These valves are available in 2/2 or 3/2 normally closed, open or universal service versions, plus miniaturized or silent versions with a latching actuator. The diverse range of features make these valves versatile for applications in food, biotechnology, chemical/pharmaceutical, and physiological/medial industries.

Specifications

Body MaterialPSU (Polysulphone)
Valve ActuationSolenoid - Direct Acting
Function3/2 Normally Closed; 3/2 Normally Open; 3/2 Universal
Pipe / Port SizeSlip-on
Port Type
Maximum allowable pressure (PS)4 bar
Fluid temperature-10°C +90°C
Max viscosity5°E (~37 cStokes or mm2/s)
SealingVMQ or FPM
