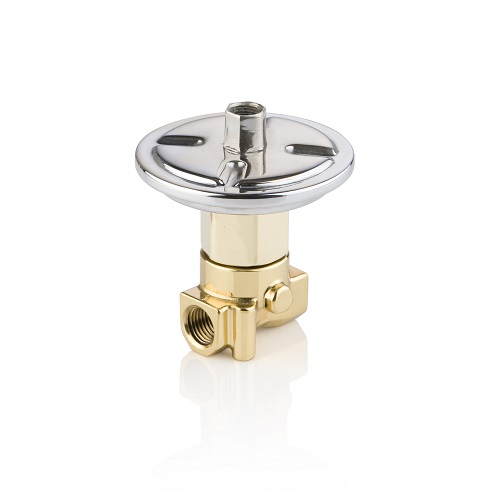

ASCO™ Series F262 Air-Operated Valves

The ASCO Series F262 are designed to provide long service life handling lubricated air. ASCO F262 is suitable for 3 - 30 psi (0.2 - 2.0 bar) instrument air operation. Their unique sealing members isolate pilot air pressure from mainline fluid. Variations in pilot air pressure will not affect the valves operation. The valves are ideal for applications such as bottling

Specifications

Function2 way - 2/2 Normally Closed; 2 way - 2/2 Normally Open
Valve ActuationPneumatic - Air Pilot
MediaAir, Inert Gas; Light Oil; Water
Pipe / Port Size1/4 "
Body MaterialBrass
Port TypeNPTF
FlowFrom 0.5 Cv to 1.0 Cv;
Max Differential / Max Operating PressureVacuum to 150 PSIG
Operating EnvironmentIndoor; Outdoor
