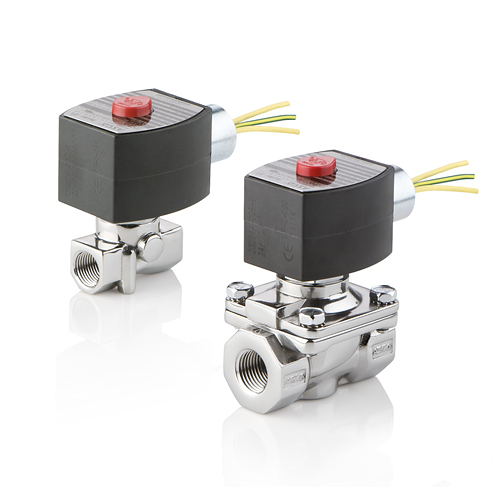

ASCO™ Series HV427 Gas Shutoff Valves

Contact Sales
The ASCO Series HV426 is a line of low-temperature stainless steel fuel gas shutoff valves for commercial and industrial gas burners in harsh environments. Its DC peak-and-hold constructions offer low power consumption, and robust construction provides consistent and reliable operation. The valves have resilient soft seating for tight shutoff and require zero minimum pressure differential. Suitable for applications such as tank heaters, line heaters, incinerators and flare stacks.

Specifications

Function2 way - 2/2 Normally Closed
Valve ActuationSolenoid
MediaNatural Gas
Pipe / Port Size1/4 "; 1/2 "; 3/8 "; 3/4 "
Body MaterialStainless Steel
Voltage24 AC; 110 AC; 120 AC; 230 AC; 12 DC; 24 DC
Port TypeNPTF
FlowFrom 6.0 Cv to 14.0 Cv; From 2.0 Cv to 6.0 Cv; From 1.0 Cv to 2.0 Cv
Max Differential / Max Operating PressureVacuum to 150 PSIG
Operating EnvironmentIndoor; Outdoor; Hazardous
Standards & RegulationsCSA
