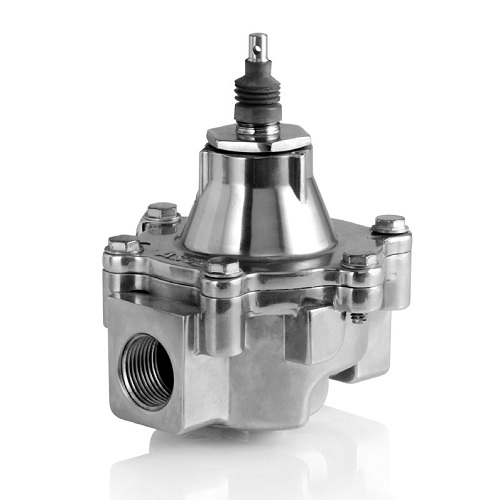

ASCO™ JV216 Cable Valves

The ASCO Series JV216 is a line of pull-to-close gas shutoff valves designed to meet the safety standards for commercial, industrial, and institutional kitchens set by the National Fire Protection Association. The valves close to shut off gas flow when their cables are pulled.

Specifications

Function2 way - 2/2 Normally Closed
Valve ActuationManual Reset
MediaNatural Gas
Pipe / Port Size1/2 "; 3/8 "; 3/4 "; 1 "; 1 1/4 "; 1 1/2 "; 2 "; 2 1/2 "; 3 "
Body MaterialAluminum
Voltage110 AC; 120 AC; 230 AC; 220 AC - 50; 60
Port TypeNPTF
FlowFrom 6.0 Cv to 14.0 Cv; From 2.0 Cv to 6.0 Cv; Over 14.0 Cv
Max Differential / Max Operating PressureVacuum to 150 PSIG
Operating EnvironmentIndoor
