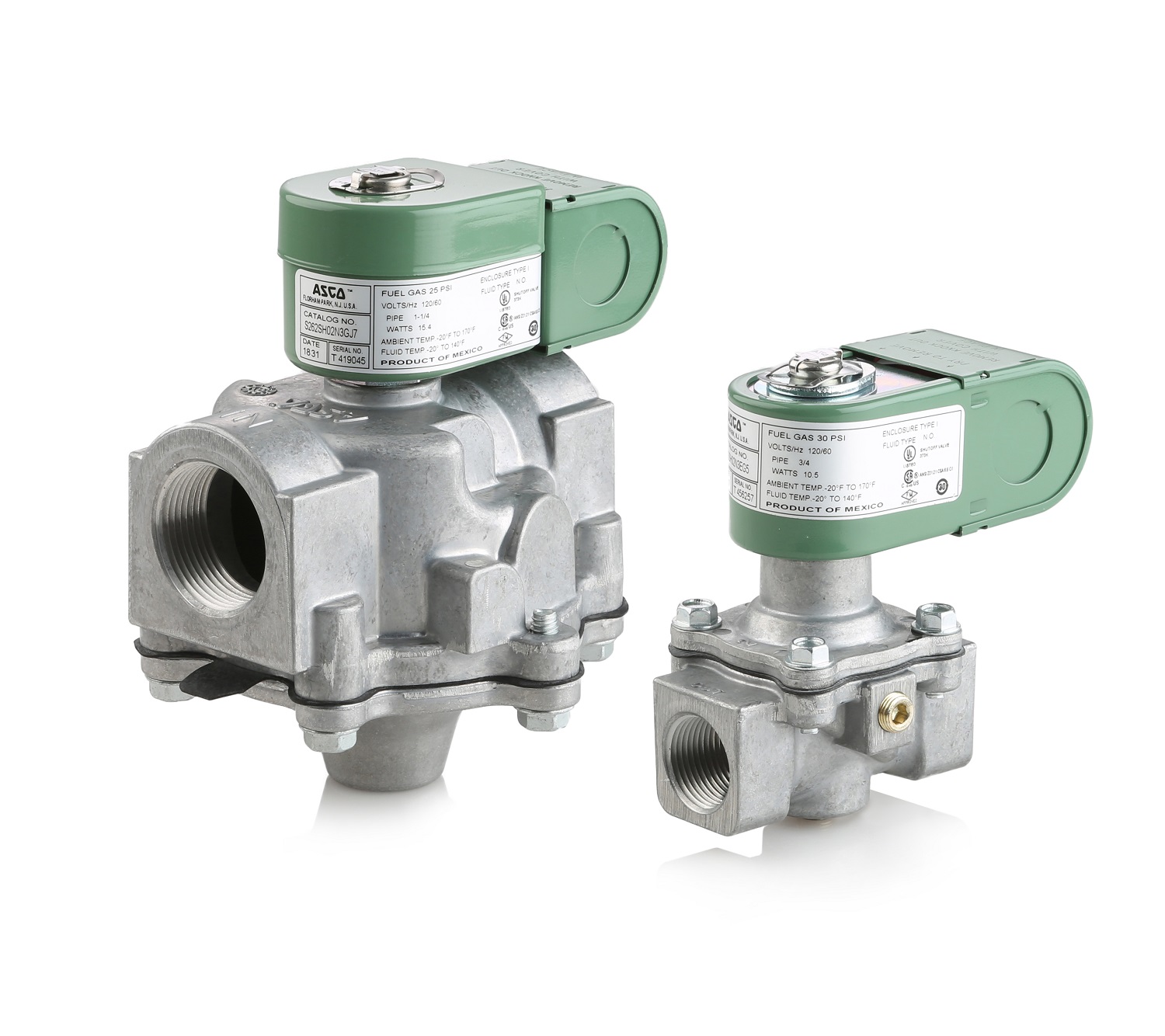

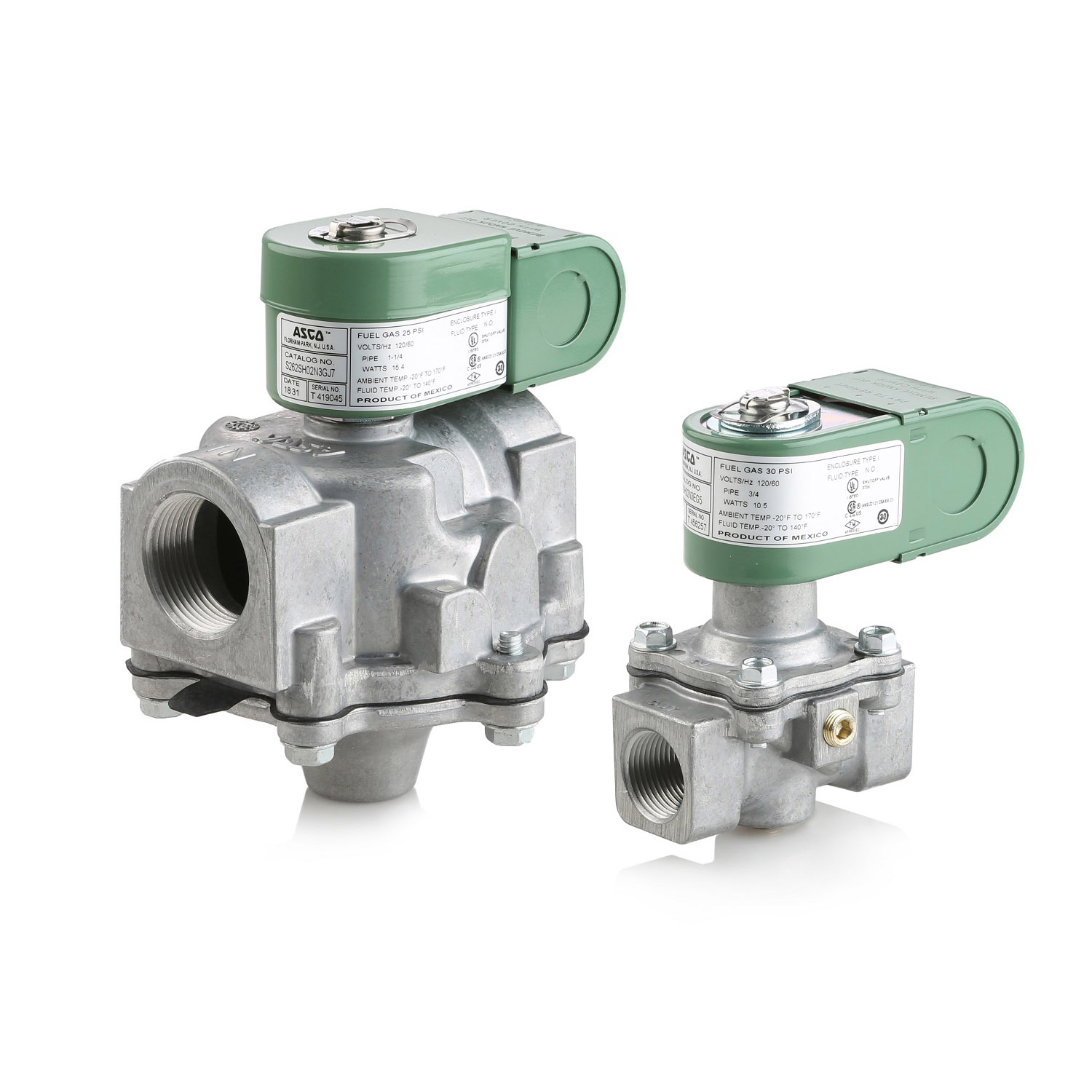

ASCO™ Series S262 Gas Vent Valve

The ASCO Series S262 is a line of fuel gas valves for venting gas combustion systems in heating equipment. If there is a leak when the system is off, the gas is vented through the valve. The 2-way normally open valve has a die-cast aluminum body and a zero-differential piloted diaphragm.

Specifications

Valve ActuationSolenoid
Body MaterialAluminum
MediaNatural Gas
Pipe / Port Size1/2 "; 3/8 "; 3/4 "; 1 "; 1 1/4 "; 1 1/2 "; 2 "; 2 1/2 "; 3 "
Port TypeNPTF
Function2 way - 2/2 Normally Open
Voltage24 AC, 120 AC, 230 AC
Max Differential / Max Operating PressureVacuum to 150 PSIG
Operating EnvironmentIndoor
Standards / RegulationsCSA, Type 1, UL
