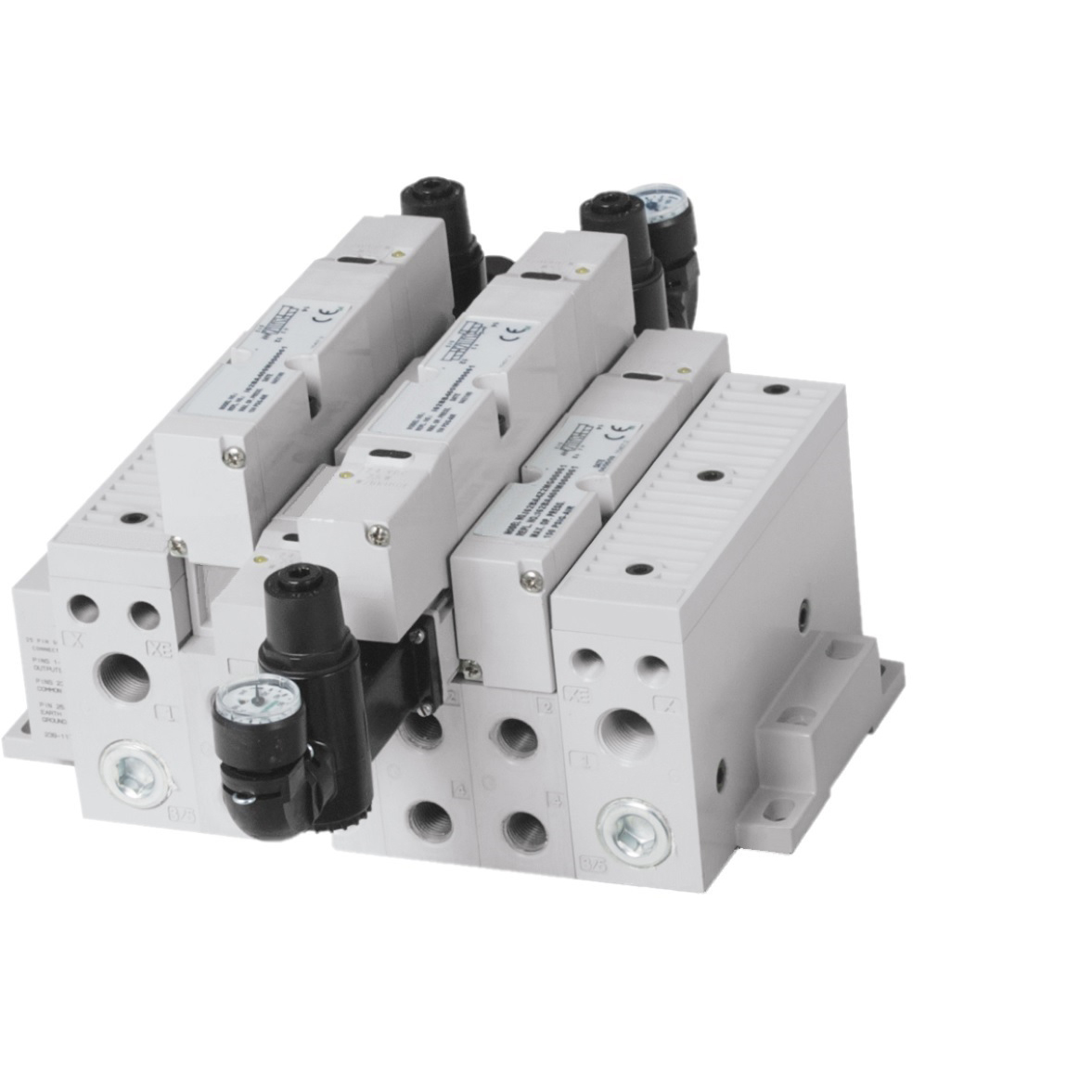

AVENTICS™ Series 2012 Directional Control Valves

The AVENTICS Series 2012 solenoid air pilot-actuated valves offer plug-together flexibility in a modular design - eliminating the need for internal wiring. With their fieldbus electronics and I/O capability, the valves support electronic interface/bus protocols including DeviceNet, Allen-Bradley, Remote I/O, and Profibus DP. The Series 2012 is ideal for bottling, automotive, press room, and tire manufacturing applications.

Specifications

Valve ActuationSolenoid - Air Pilot
Pipe / Port Size1/8; 1/4; 6 mm; 8 mm
Port TypeG ISO228/1-G BSPP; NPTF; Push-in
Function4 way - 4/2; 4 way - 5/3; 4 way - 5/3 - Closed Center; 4 way - 5/3 - Open Center; 4 way - 5/3 - Pressure Center
FlowFrom 1.0 Cv to 2.0 Cv
Standards / RegulationsCSA; IP65; UL
Operating EnvironmentIndoor; Outdoor; Washdown
MediaAir, Inert Gas
