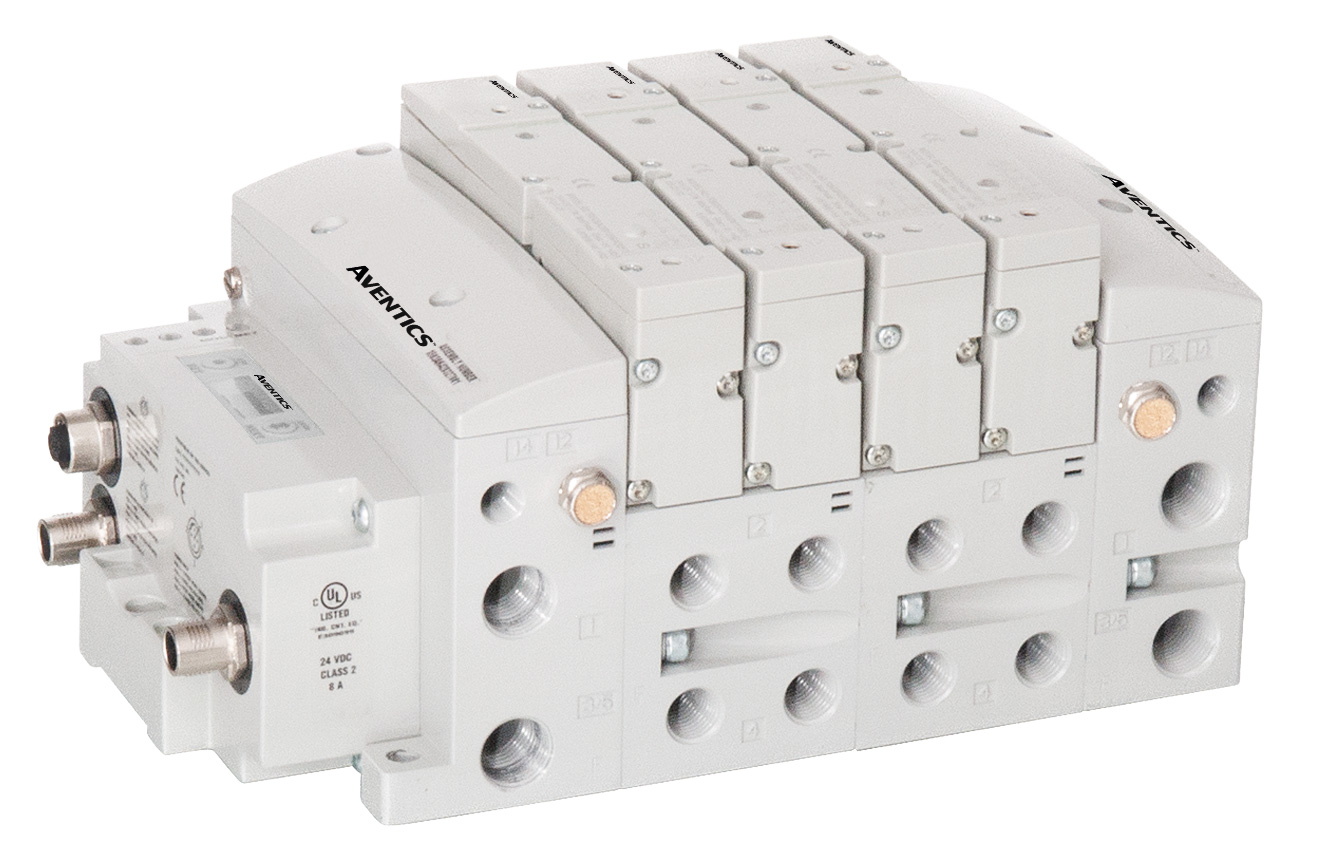

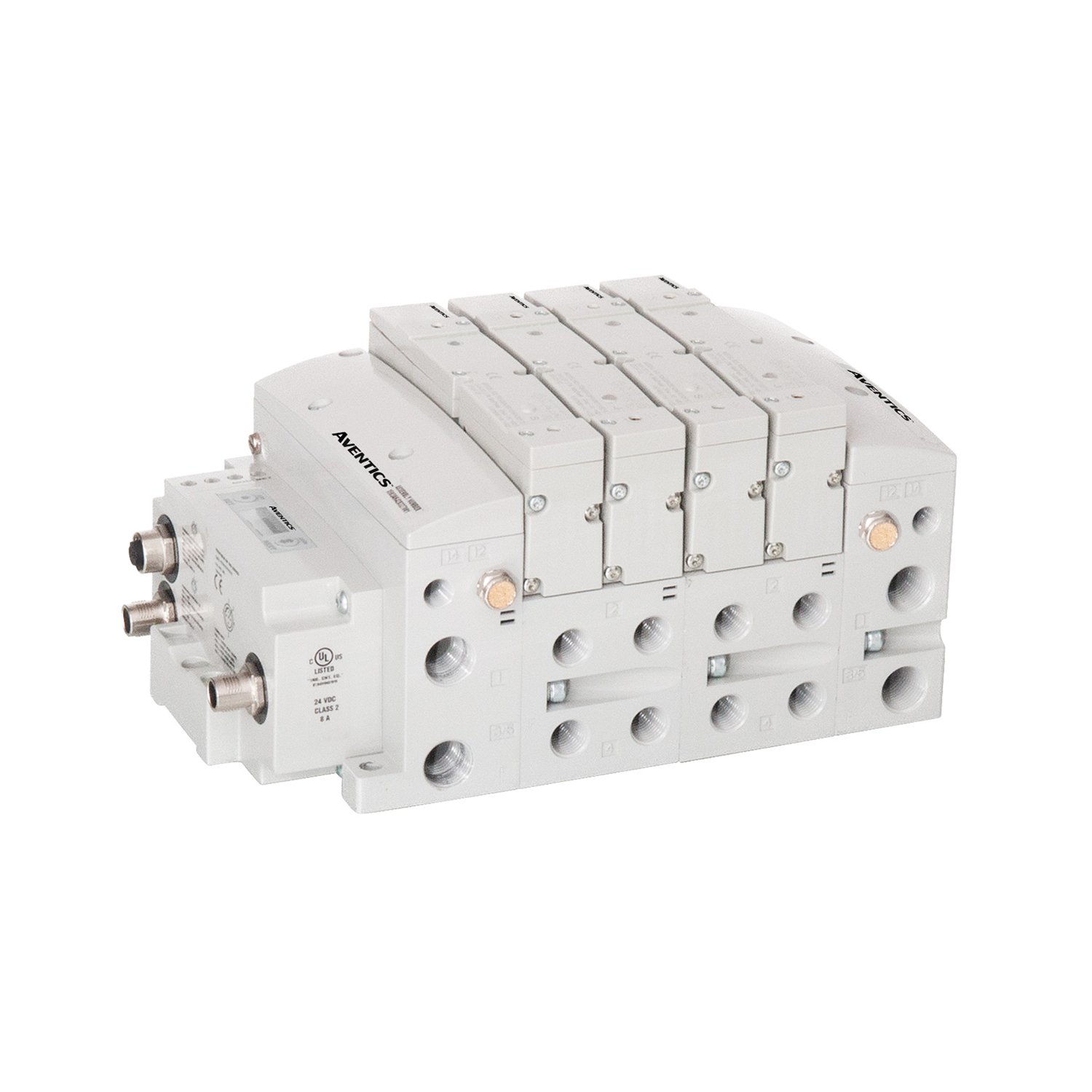

AVENTICS™ 503 Pneumatic Directional Control Valves

View Catalog

The AVENTICS Series 503 is a line of pneumatic directional control valves with ultra-high flow ratings per valve size. This enables design and specifying engineers to use smaller, lower-cost valves and components that do more work with less air, energy, and cost. Designers can choose to generate greater speed of motion for their components using the same size valve. The 503 Series valves are designed to complement the benefits of AVENTICS G3 fieldbus electronics. When assembled together, original equipment manufacturers can leverage assemblies that combine ultra-high flow rates with ease of use, plus fieldbus technology that provides configurability, flexibility, and cost-effective I/O and distribution architecture. The compact 503 Series valves are ideal for automation and piloting applications across a wide range of automotive and tire, food and beverage, pharmaceutical, packaging equipment, and general machinery applications.

Your selection:

1 - 10 of 24 results for products

Best Match

Best Match

Product Name (A-Z)

Product Name (Z-A)

Product SKU (A-Z)

Product SKU (Z-A)

No Image Available For Product

R503A1B10M11BF1

AVENTICS 5/2-directional valve, Series 503 R503A1B10M11BF1

Activation	Switching principle	Operating Voltage	Manual Override	Valve Pilot
Electrically	5/2, with spring/air spring return	24 V DC	with detent	External

$119.18

ADD TO LIST

No Image Available For Product

R503A1B10MA00F1

AVENTICS 5/2-directional valve, Series 503 R503A1B10MA00F1

Activation	Switching principle	Operating Voltage	Manual Override	Valve Pilot
Electrically	5/2, with spring/air spring return	24 V DC	without detent	External

$114.03

ADD TO LIST

No Image Available For Product

R503A1B40M11BF1

AVENTICS 5/2-directional valve, Series 503 R503A1B40M11BF1

Activation	Switching principle	Operating Voltage	Manual Override	Valve Pilot
Electrically	5/2, double solenoid	24 V DC	with detent	External

$158.04

ADD TO LIST

No Image Available For Product

R503A1B40MA00F1

AVENTICS 5/2-directional valve, Series 503 R503A1B40MA00F1

Activation	Switching principle	Operating Voltage	Manual Override	Valve Pilot
Electrically	5/2, with air spring return	24 V DC	without detent	External

$147.80

ADD TO LIST

No Image Available For Product

R503A1B50M11BF1

AVENTICS 5/3-directional valve, Series 503 R503A1B50M11BF1

Activation	Switching principle	Operating Voltage	Manual Override	Valve Pilot
Electrically	5/3, exhausted center	24 V DC	with detent	External

$170.98

ADD TO LIST

No Image Available For Product

R503A1B50MA00F1

AVENTICS 5/3-directional valve, Series 503 R503A1B50MA00F1

Activation	Switching principle	Operating Voltage	Manual Override	Valve Pilot
Electrically	5/3, exhausted center	24 V DC	without detent	External

$160.74

ADD TO LIST

No Image Available For Product

R503A1B70M11BF1

AVENTICS 5/3-directional valve, Series 503 R503A1B70M11BF1

Activation	Switching principle	Operating Voltage	Manual Override	Valve Pilot
Electrically	5/3, pressurized center	24 V DC	with detent	External

$170.98

ADD TO LIST

No Image Available For Product

R503A1B70MA00F1

AVENTICS 5/3-directional valve, Series 503 R503A1B70MA00F1

Activation	Switching principle	Operating Voltage	Manual Override	Valve Pilot
Electrically	5/3, pressurized center	24 V DC	without detent	External

ADD TO LIST

No Image Available For Product

R503A2B10M11BF1

AVENTICS 5/2-directional valve, Series 503 R503A2B10M11BF1

Activation	Switching principle	Operating Voltage	Manual Override	Valve Pilot
Electrically	5/2, with spring/air spring return	24 V DC	with detent	External

$100.57

ADD TO LIST

No Image Available For Product

R503A2B10MA00F1

AVENTICS 5/2-directional valve, Series 503 R503A2B10MA00F1

Activation	Switching principle	Operating Voltage	Manual Override	Valve Pilot
Electrically	5/2, with spring/air spring return	24 V DC	without detent	External

$95.42

ADD TO LIST
