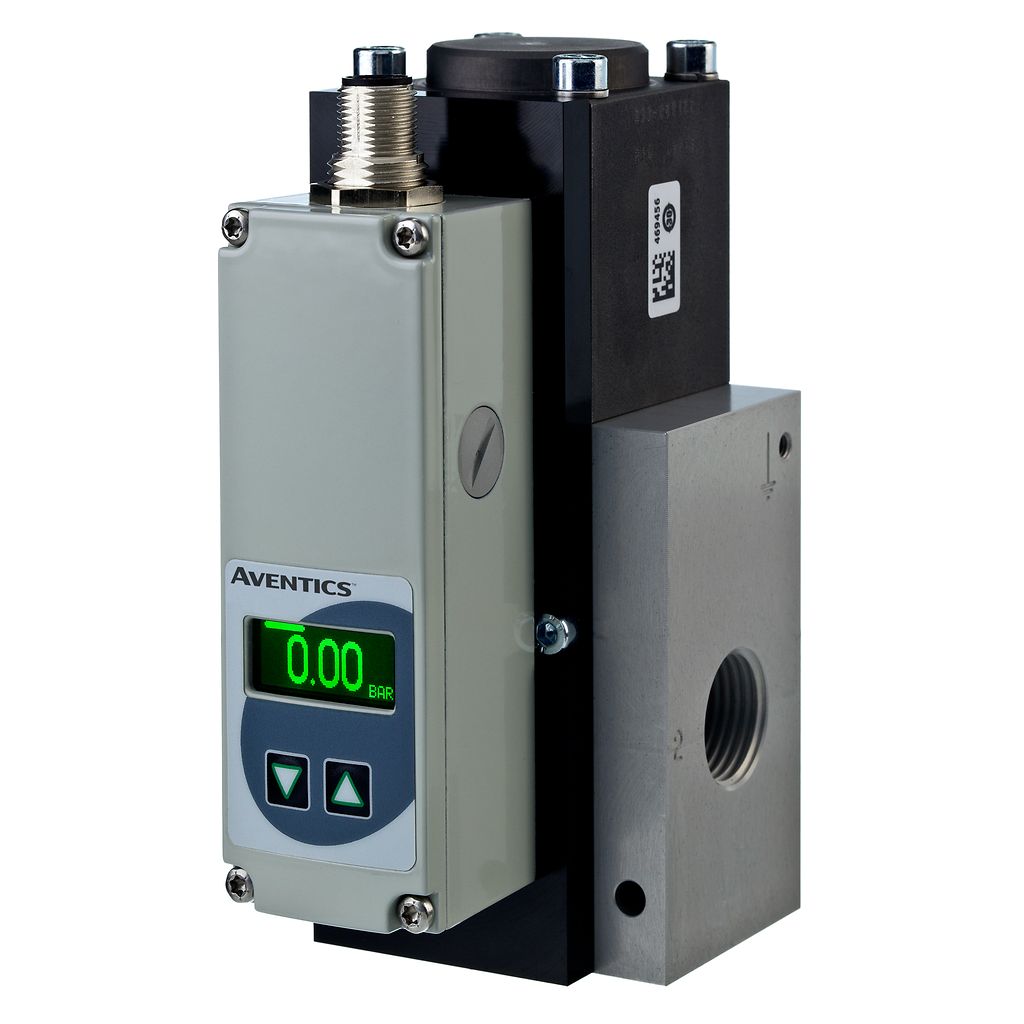

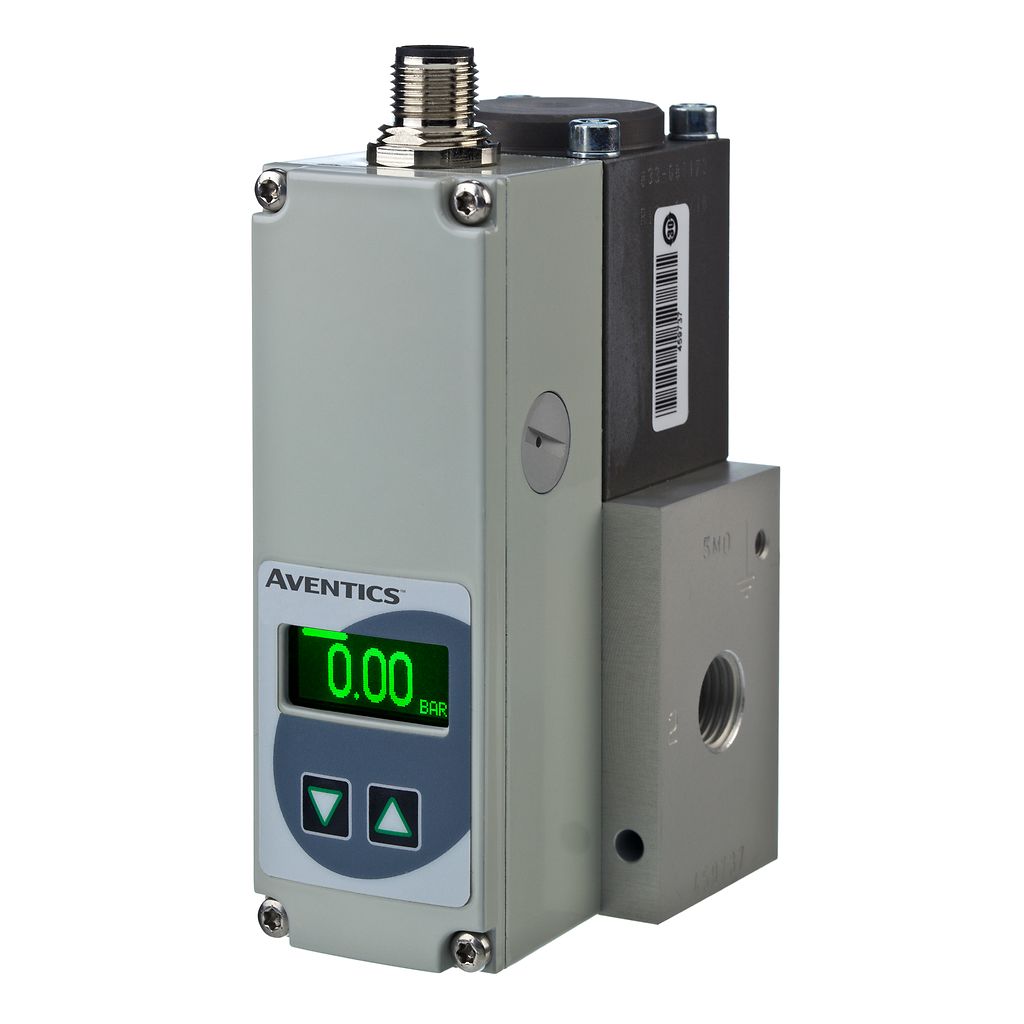

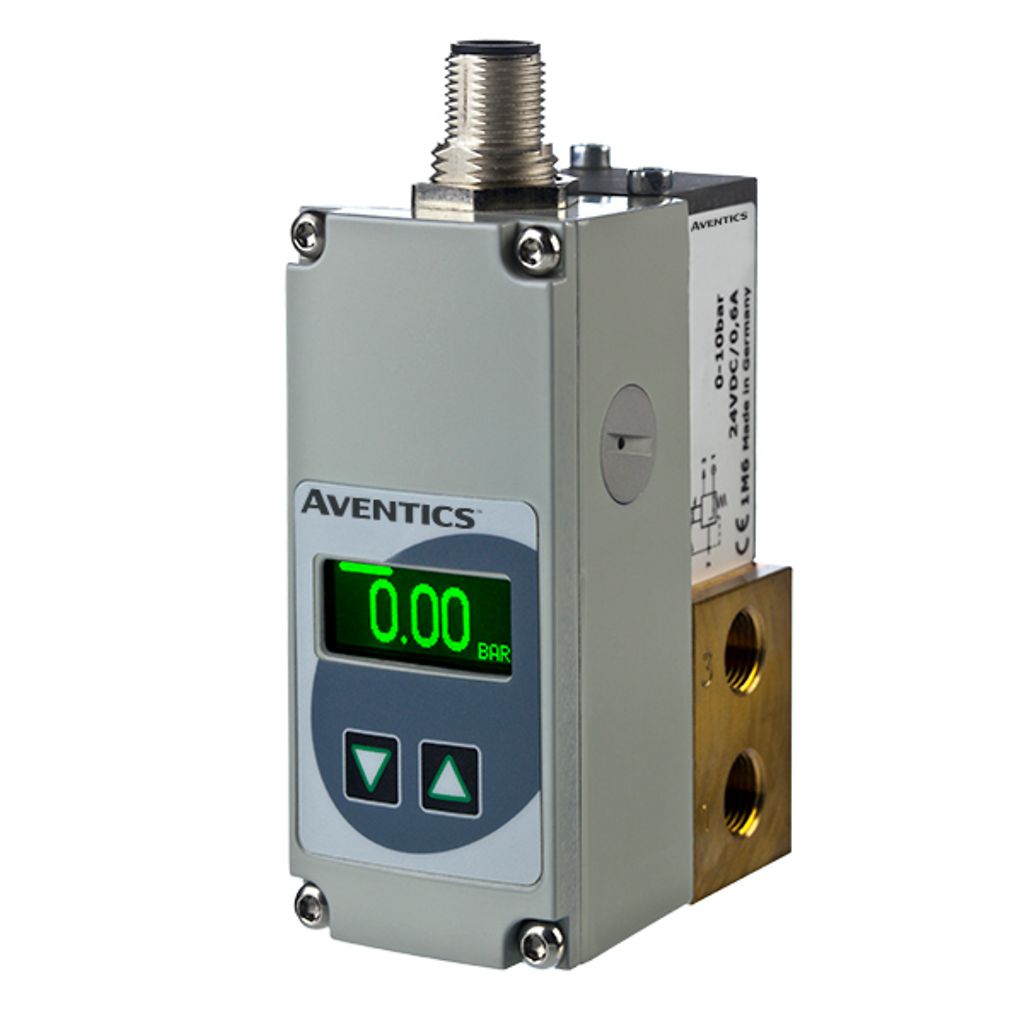

AVENTICS™ Series 625 Proportional Pressure Control Valve

Contact Sales
The AVENTICS Sentronic Series 625 is a 3-way proportional highly dynamic “direct acting" proportional pressure control valve platform that accurately adjusts pressure to control air or inert gases. The Series 625 is a full range proportional platform, offering pressure ranges from vacuum up to 50bar / 725 psi. Various sizes of mechanic supporting flow capability from 55l/min up to 5600l/min (1.94 up to 197.76 SCFM).

Specifications

Function3 way - 3/2 Normally Closed
Valve ActuationProportional coil
Port TypeG – NPT Threat or Pad mount
Port Size1/8" / 1/4" / 1/2" or 1"
Pressure RangeVacuum up to 50 bar / 725 psi
Body MaterialBrass, Aluminum or Stainless Steel
Inert PartsStainless Steel, Brass
SealingFKM and NBR
Voltage24 VDC
MediaAir, Inert Gases according to ISO 8573-1:2010 [7:4:4]
Standard & RegulationsCE, UKCA, RoHs
