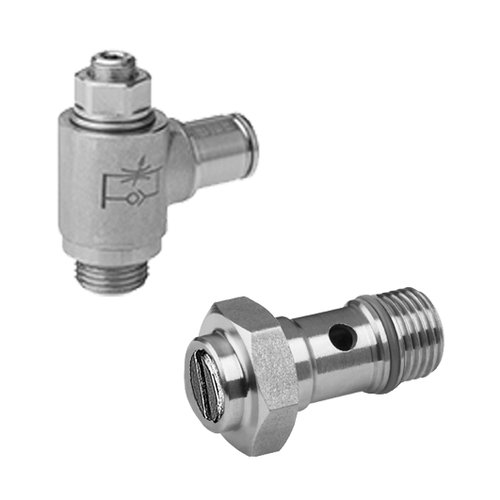

AVENTICS Check-choke valve, Series CC02-AL, Exhaust Air Throttling, tube nut 0821200117
| Qn 1 to 2 | Qn 2 to 1 | Compressed air connection | Compressed air connection type | Compressed air connection 2 |
|---|---|---|---|---|
| 85 l/min | Ø 3x0,6 | M5 |
AVENTICS Check-choke valve, Series CC02-AL, Inlet-Side Throttling, tube nut 0821200118
| Qn 1 to 2 | Qn 2 to 1 | Compressed air connection | Compressed air connection type | Compressed air connection 2 |
|---|---|---|---|---|
| 85 l/min | Ø 3x0,65 | M5 |
AVENTICS Check-choke valve, Series CC02-AL, Exhaust Air Throttling, tube nut 0821200181
| Qn 1 to 2 | Qn 2 to 1 | Compressed air connection | Compressed air connection type | Compressed air connection 2 |
|---|---|---|---|---|
| 540 l/min | Ø 4x1 | G 1/4 |
AVENTICS Check-choke valve, Series CC02-AL, Exhaust Air Throttling, tube nut 0821200184
| Qn 1 to 2 | Qn 2 to 1 | Compressed air connection | Compressed air connection type | Compressed air connection 2 |
|---|---|---|---|---|
| 900 l/min | Ø 6x1 | G 3/8 |
AVENTICS Check-choke valve, Series CC02-AL, Exhaust Air Throttling, tube nut 0821200185
| Qn 1 to 2 | Qn 2 to 1 | Compressed air connection | Compressed air connection type | Compressed air connection 2 |
|---|---|---|---|---|
| 900 l/min | Ø 9x1,5 | G 3/8 |
AVENTICS Check-choke valve, Series CC02-AL, Inlet-Side Throttling 0821200201
| Qn 1 to 2 | Qn 2 to 1 | Compressed air connection | Compressed air connection type | Compressed air connection 2 |
|---|---|---|---|---|
| 360 l/min | G 1/8 | Internal thread | G 1/8 |
AVENTICS Check-choke valve, Series CC02-AL, Inlet-Side Throttling 0821200202
| Qn 1 to 2 | Qn 2 to 1 | Compressed air connection | Compressed air connection type | Compressed air connection 2 |
|---|---|---|---|---|
| 540 l/min | G 1/4 | Internal thread | G 1/4 |
AVENTICS Check-choke valve, Series CC02-AL, Exhaust Air Throttling 0821200204
| Qn 1 to 2 | Qn 2 to 1 | Compressed air connection | Compressed air connection type | Compressed air connection 2 |
|---|---|---|---|---|
| 363 l/min | G 1/8 | Internal thread | G 1/8 |
AVENTICS Check-choke valve, Series CC02-AL, Exhaust Air Throttling 0821200205
| Qn 1 to 2 | Qn 2 to 1 | Compressed air connection | Compressed air connection type | Compressed air connection 2 |
|---|---|---|---|---|
| 568 l/min | G 1/4 | Internal thread | G 1/4 |
AVENTICS Check-choke valve, Series CC02-AL, Exhaust Air Throttling 0821200206
| Qn 1 to 2 | Qn 2 to 1 | Compressed air connection | Compressed air connection type | Compressed air connection 2 |
|---|---|---|---|---|
| 1196 l/min | G 3/8 | Internal thread | G 3/8 |
