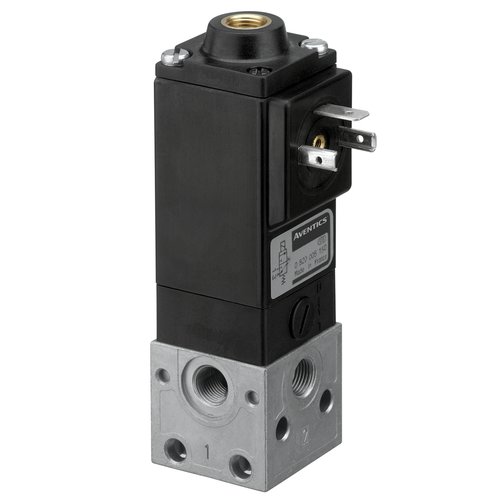

AVENTICS™ 3/2-directional valve, Series DO35, G1/8, NC, Valve system 0820005151

Part Number:

AVENTICS-0820005151

$139.99

Qty:
ADD TO CART
Where to Buy
View CAD
View Datasheet
DO35-3/2NC-G018-024DC

Specifications

ActivationElectrically
Frame sizeDO35
Switching principle3/2, with spring return
Sealing principleSoft seal
Manual overridewith detent
Compressed air connectionG 1/8
Compressed air connection outputG 1/8
Nominal flow Qn140 l/min
Min. working pressure0 bar
Max. working pressure10 bar
Electrical connection typePlug
Electrical connection sizeEN 175301-803, form A
Protection class with connectionIP65
Operational voltage24 V DC
Voltage tolerance DC-10 % / +10 %
Power consumption DC8 W
Duty cycle100 %
Min. ambient temperature-10 °C
Max. ambient temperature50 °C
Housing materialDie cast zinc
