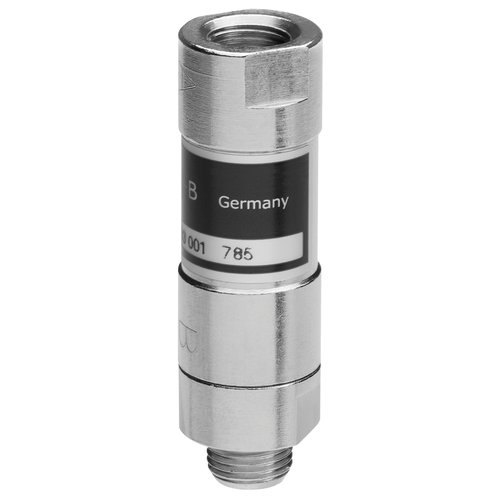

AVENTICS™ Non-return valve, Series NR01 0821003002

Part Number:

AVENTICS-0821003002

$32.94

Qty:
ADD TO CART
Where to Buy
View CAD
View Datasheet
NR01-SKR-G014-G014

Specifications

TypePoppet valve
Mountingthread-in
Compressed air connection 1G 1/4
Compressed air connection type 1Internal thread
Compressed air connection 2G 1/4
Compressed air connection type 2External thread
Notethread-in
Nominal flow Qn 1 to 21600 l/min
Min. working pressure0.2 bar
Max. working pressure10 bar
Min. ambient temperature-10 °C
Max. ambient temperature70 °C
Min. medium temperature-10 °C
Max. medium temperature70 °C
MediumCompressed air
Weight0.04 kg
Housing materialBrass
Seal materialAcrylonitrile butadiene rubber
