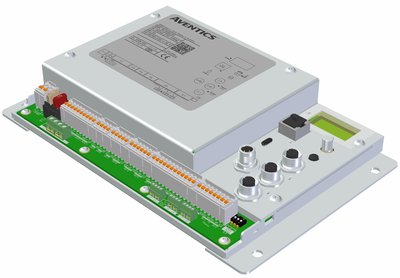

AVENTICS™ Marex Propulsion Controller - MPC R419300763

Part Number:

AVENTICS-R419300763

View Datasheet
Marex Propulsion Controller - MPC

Specifications

power supply24 V DC -25%/+30%, 12 V DC -20%/+30%
Min. ambient temperature-25 °C
Max. ambient temperature70 °C
Relative humidity0,95 %
Insulation strength500 V AC
Max. Conductor cross-section of terminals1.5 mm²
Max. Conductor cross-section of terminals2.5 mm² (only for terminals 1 and 2)
Max. Current load of terminals10 A
Max. Current load of terminals15 A (only for terminals 1 and 2)
NoteApplied EMC standards
Protection class according to EN 60529IP20
Weight1.6 kg
Housing materialStainless Steel
