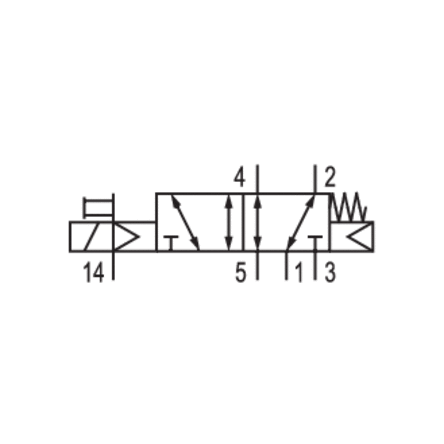

AVENTICS™ 5/2-directional valve, Series AV05 R422103001

Part Number:

AVENTICS-R422103001

$92.61

Qty:
ADD TO CART
Where to Buy
View CAD
View Datasheet
AV05-5/2AS-VT00-024VDC-NLC

Specifications

ActivationElectrically
Valve typeSpool valve, positive overlapping
Switching principle2/2, with spring/air spring return
Sealing principleSoft seal
Manual overridewithout detent
Nominal flow Qn700 l/min
Min. working pressure-0.9 bar
Max. working pressure10 bar
Protection class with connectionIP65
Operational voltage24 V DC
Voltage tolerance DC-10 % / +10 %
PilotExternal
LED status displayYellow
Power consumption DC0.55 W
Duty cycle100 %
Typ. switch-on time17 ms
Typ. switch-off time26 ms
IndustryIndustrial, Polyamide, fiber-glass reinforced
Weight0.058 kg
Min. ambient temperature-10 °C
Max. ambient temperature60 °C
