AVENTICS™ 5/3-directional valve, Series AV05 R422103004

Part Number:

AVENTICS-R422103004

$144.49

Qty:
ADD TO CART
Where to Buy
View CAD
View Datasheet
AV05-5/3CC-VT00-024VDC-LOC

Specifications

ActivationElectrically
Valve typeSpool valve, positive overlapping

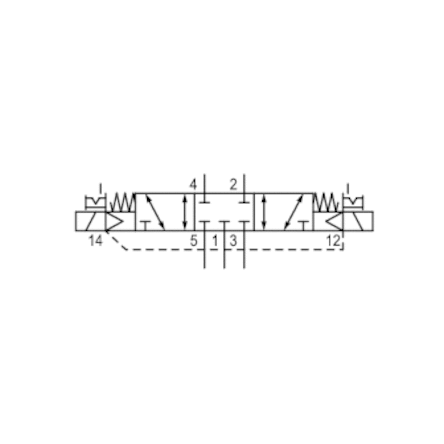

Switching principle5/3, closed center
Sealing principleSoft seal
Manual overridewith detent
Nominal flow Qn650 l/min
Min. working pressure-0.9 bar
Max. working pressure10 bar
Protection class with connectionIP65
Operational voltage24 V DC
Voltage tolerance DC-10 % / +10 %
PilotExternal
LED status displayYellow
Power consumption DC0.55 W
Duty cycle100 %
Typ. switch-on time13 ms
Typ. switch-off time13 ms
Housing materialIndustrial, Polyamide, fiber-glass reinforced
Weight0.062 kg
Min. ambient temperature-10 °C
Max. ambient temperature60 °C
