AVENTICS™ 2x3/2-directional valve, Series AV05 R422103009

Part Number:

AVENTICS-R422103009

$144.49

Qty:
ADD TO CART
Where to Buy
View CAD
View Datasheet
AV05-3/2OO-VT00-024VDC-NLC

Specifications

ActivationElectrically
Valve typeSpool valve, positive overlapping

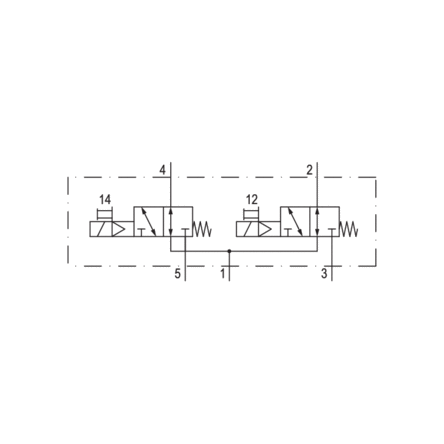

Switching principle2x 3/2 NO/NO, with spring return
Sealing principleSoft seal
Manual overridewithout detent
Nominal flow Qn600 l/min
Min. working pressure-0.9 bar
Max. working pressure10 bar
Protection class with connectionIP65
Operational voltage24 V DC
Voltage tolerance DC-10 % / +10 %
PilotExternal
LED status displayYellow
Power consumption DC0.55 W
Duty cycle100 %
Typ. switch-on time16 ms
Typ. switch-off time25 ms
Housing materialIndustrial, Polyamide, fiber-glass reinforced
Weight0.064 kg
Min. ambient temperature-10 °C
Max. ambient temperature60 °C
