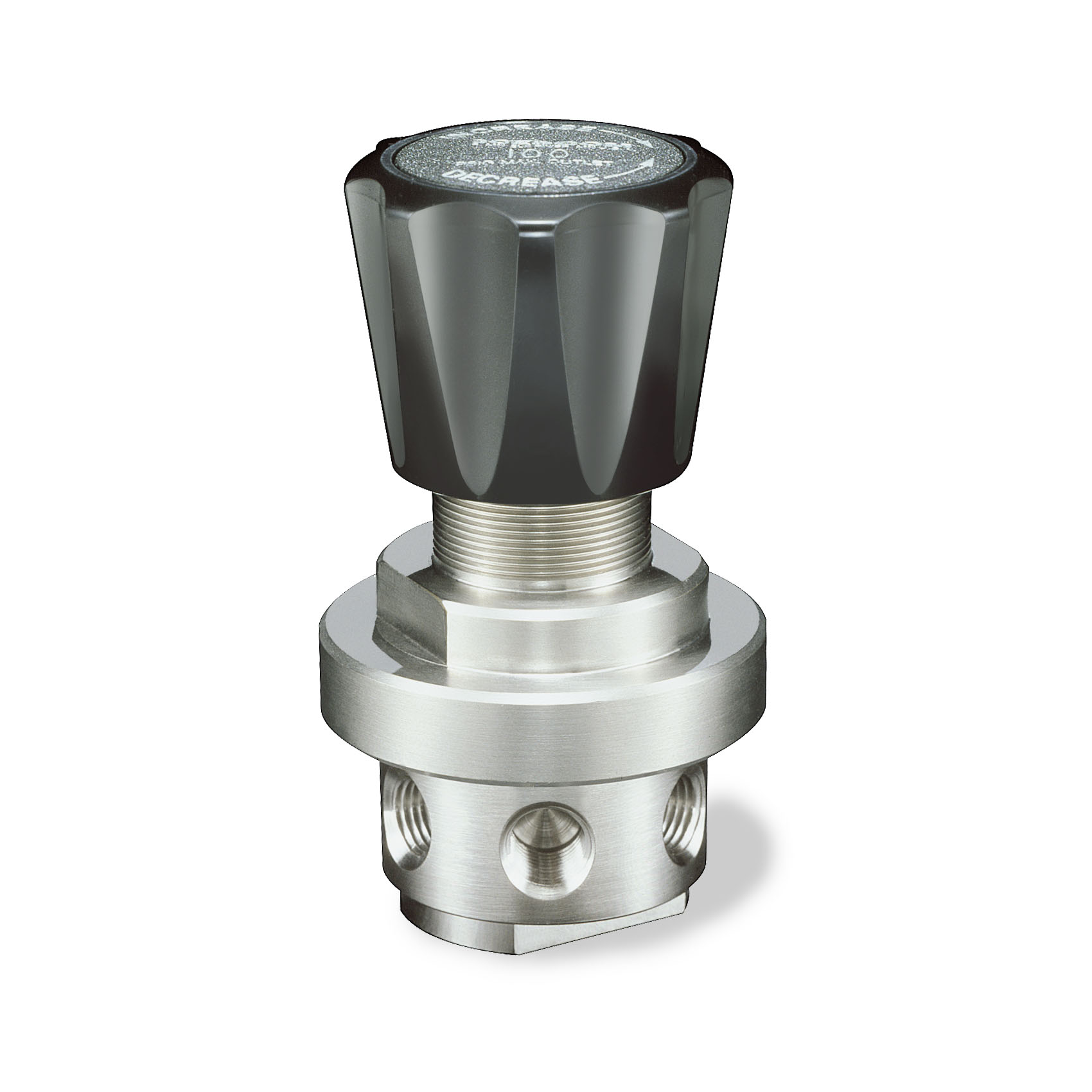

Specifications
| Maximum Inlet Pressure | 400 or 3500 psig / 27.6 or 241 bar |
| Outlet Pressure Ranges | 0 -<br>12, 25, 50, 100, 150, 250 psig (400 psig inlet models only) <br>0.83, 1.7, 3.4, 6.9, 10.3, 17.2 bar (27.6 bar inlet models only) |
| Material | Body: 316 Stainless Steel <br>Bonnet: 303 Stainless Steel<br>Diaphragm: 316 Stainless Steel<br>Seat: Teflon®<br>Friction Sleeve (Inner): Teflon®<br>Remaining Parts: 316 Stainless Steel |
| Operating Temperature | -40°F to 165°F / -40°C to 74°C |
| Port Size & Type | 1/4 NPTF |
| Flow Capacity | 400 psig / 27.6 bar inlet: Cv = 0.15<br>3500 psig / 241 bar inlet: Cv = 0.06 |
| Load Type | Spring, Dome |
| Weight | 3 lbs / 1.4 kg |
| Additional Information | For custom modifications or a complete system solution, please contact your local sales office. |
