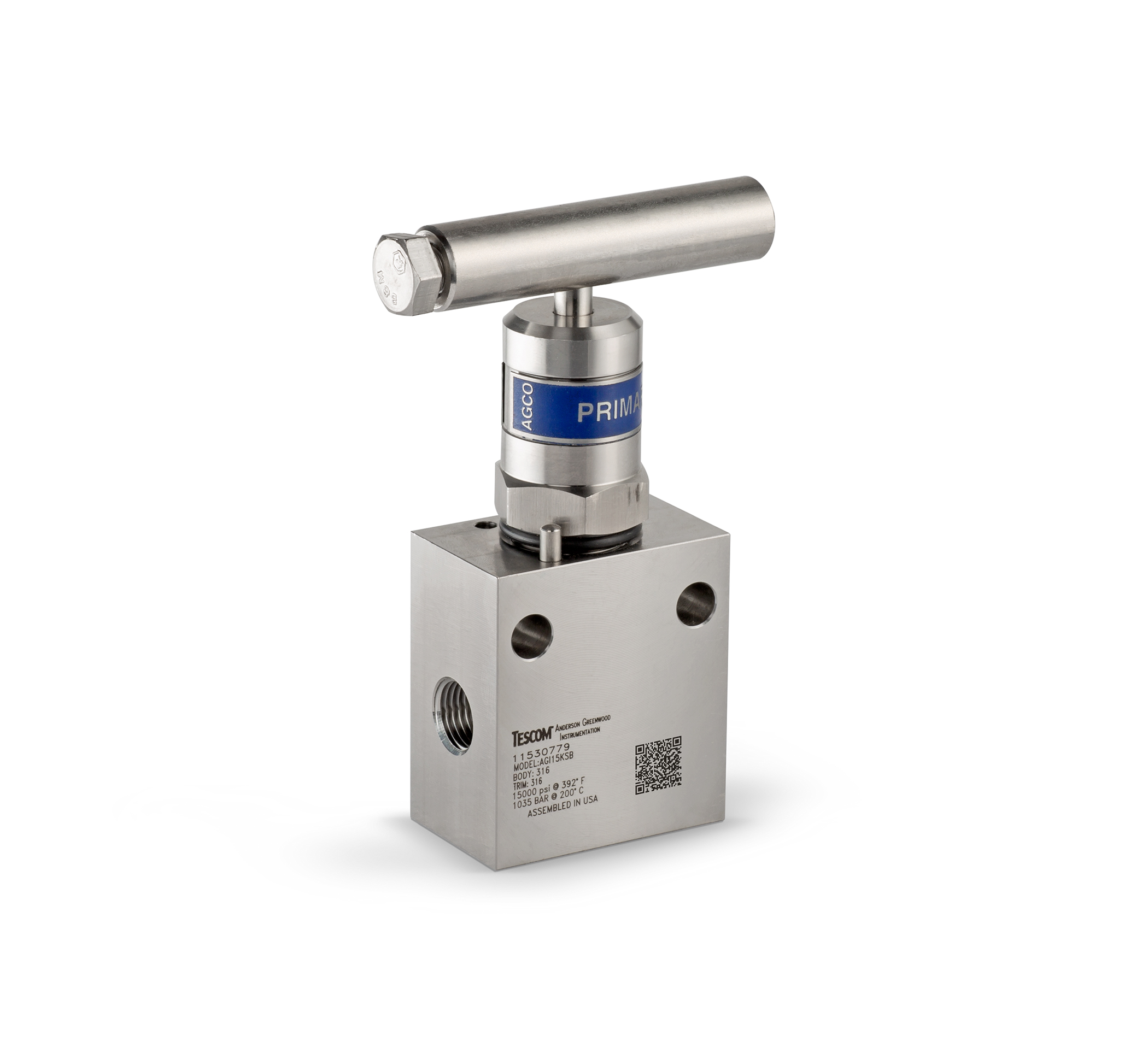

AGI™ H2 Valve Series

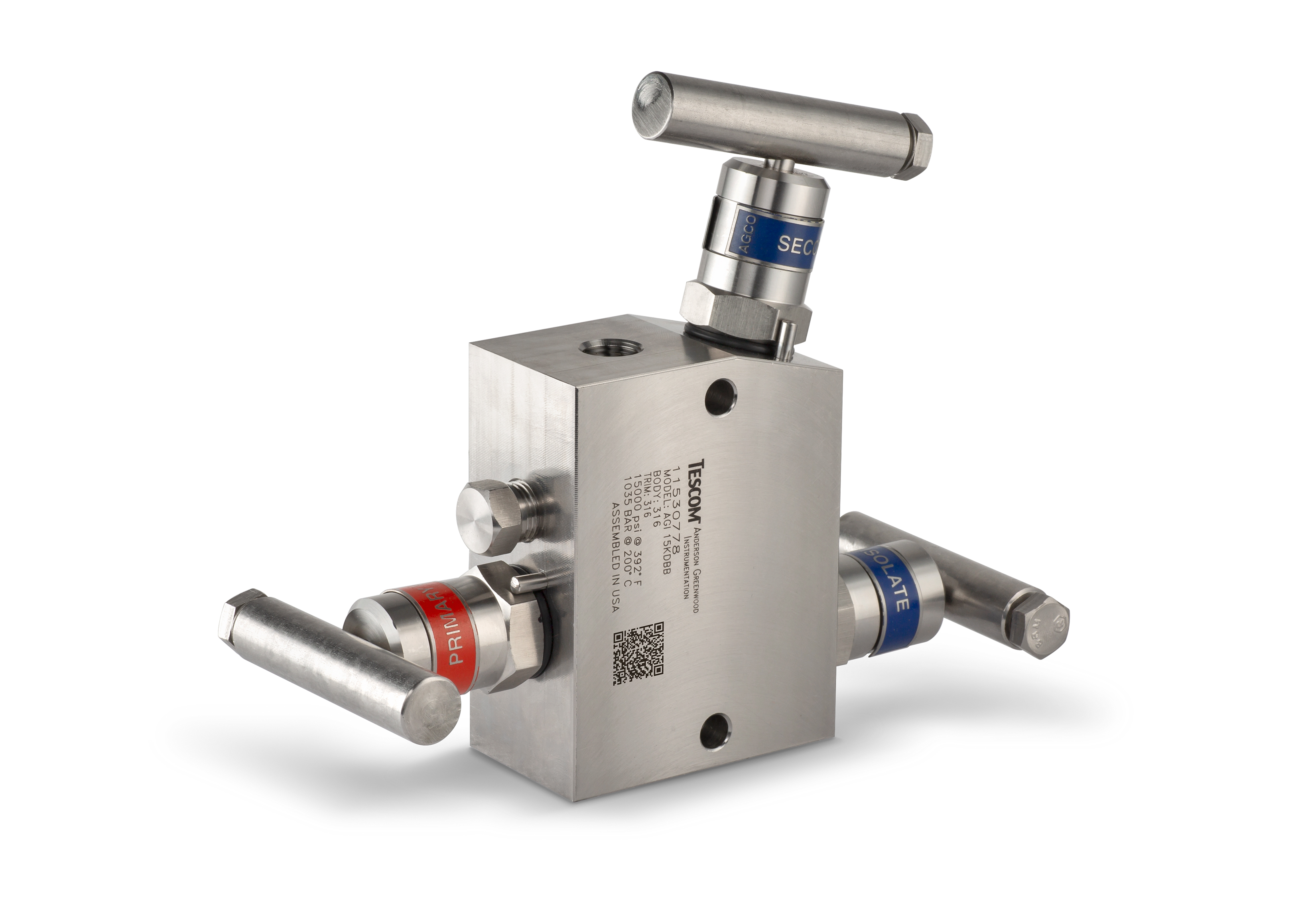

These maintenance-free valves feature a positive double-block arrangement that protects workers after they isolate process pressures, while their modular design reduces the number of potential leakage points. In addition, the maintenance-free hand-operated DBB valves include a non-adjustable seal that avoids the release of high-pressure liquids or gases into the environment while requiring no packing adjustment over the valve’s lifetime.

Specifications

Materials316 Stainless Steel
SeatIntegral metal to metal
Connection sizes1/4" and 3/8"
Orifice size0.236 in (6.0 mm)
Pressure rating (mcwp)15,000 psig (103.4 MPa)
Temperature range (design min/max)-70°F to 400°F (-57°C to 204°C)
