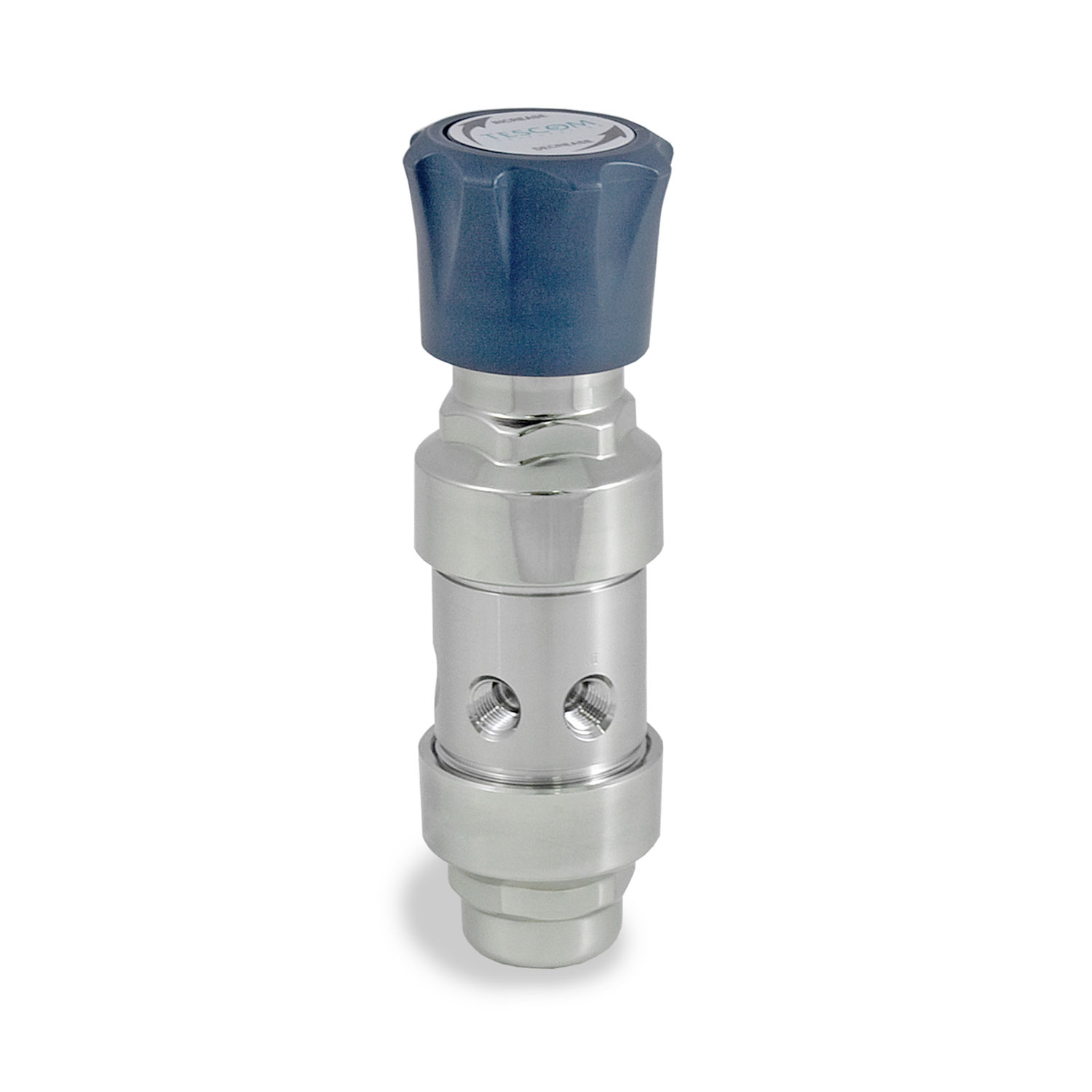

TESCOM™ SG 2 Series Two Stage Regulator Industrial

SG2 Series is a compact, lightweight, high purity two-stage cylinder regulator for specialty, flammable and industrial gas flows of less than 4 SCFM / 112 SLPM. Sensitive, extra long-life metal diaphragm ensures gas purity and integrity. User-friendly model number enables the specifier to select optional gauges, relief and shut-off valves, and cylinder connections as part of the regulator assembly. Suitable for Laboratory and Point-of-Use Gas Systems in medical, pharmaceutical, food and beverage, and other high purity applications. This regulator is also ideal for process analyzer gases, metal fabrication and specialty and industrial gas cylinders.

Specifications

Pressure RatingMaximum Inlet Pressure: 4500 psig / 310 bar<br>Maximum Outlet Pressure<br>&nbsp;&nbsp;15, 25, 50, 125, 250 psig<br>&nbsp;&nbsp;103, 172, 345, 862, 1724 kPa<br>&nbsp;&nbsp;1.0, 1.7, 3.4, 8.6, 17.2 bar
Body MaterialStainless Steel, Nickel-Plated Brass
Seat MaterialPCTFE, Polyimide*<br>*Per ASTM D 6456-99 Type II Class 1M (Meldin® 7021 or Vespel® SP-21)
Diaphragm Material316 Stainless Steel, Neoprene
Filter Material10 micron nominal sintered Bronze <br>10 micron nominal sintered 316 Stainless Steel
Seal MaterialTeflon® or Buna-N
Remaining PartsBrass, 300 Series Stainless Steel
Operating TemperaturePCTFE Seat: -40°F to 140°F / -40°C to 60°C<br>Polyimide* Seat: -40°F to 250°F / -40°C to 121°C
Port Size & TypeInlet & Outlet: 1/4 NPTF<br>Accessories: 1/4 NPTF
Flow CapacityCv = 0.06
Weight4.0 lbs / 1.8 kg
Additional InformationFor custom modifications or a complete system solution, please contact your local sales office.
