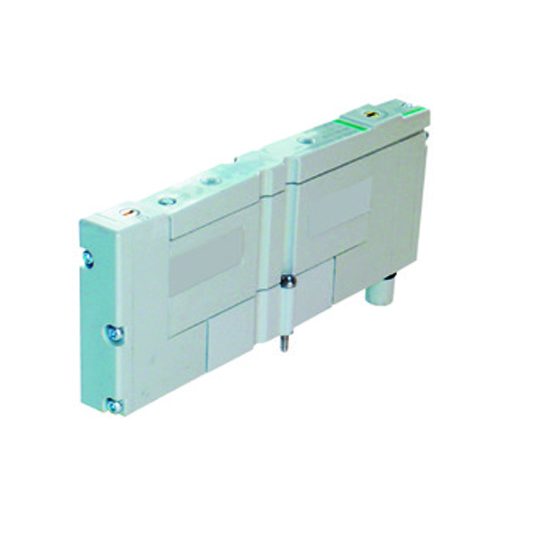

AVENTICS 5/2-directional valve, Series 501 R501A2B10M11BF1
| Activation | Switching principle | Operating Voltage | Manual Override | Valve Pilot |
|---|---|---|---|---|
| Electrically | 5/2, with spring return | 24 V DC | with detent | External |
AVENTICS 5/2-directional valve, Series 501 R501A2B10MA00F1
| Activation | Switching principle | Operating Voltage | Manual Override | Valve Pilot |
|---|---|---|---|---|
| Electrically | 5/2, with spring return | 24 V DC | without detent | External |
AVENTICS 5/2-directional valve, Series 501 R501A2B40M11BF1
| Activation | Switching principle | Operating Voltage | Manual Override | Valve Pilot |
|---|---|---|---|---|
| Electrically | 5/2, double solenoid | 24 V DC | with detent | External |
AVENTICS 5/2-directional valve, Series 501 R501A2B40MA00F1
| Activation | Switching principle | Operating Voltage | Manual Override | Valve Pilot |
|---|---|---|---|---|
| Electrically | 5/2, double solenoid | 24 V DC | without detent | External |
AVENTICS 5/3-directional valve, Series 501 R501A2B50M11BF1
| Activation | Switching principle | Operating Voltage | Manual Override | Valve Pilot |
|---|---|---|---|---|
| Electrically | 5/3, exhausted center | 24 V DC | with detent | External |
AVENTICS 5/3-directional valve, Series 501 R501A2B50MA00F1
| Activation | Switching principle | Operating Voltage | Manual Override | Valve Pilot |
|---|---|---|---|---|
| Electrically | 5/3, exhausted center | 24 V DC | without detent | External |
AVENTICS 5/3-directional valve, Series 501 R501A2B60M11BF1
| Activation | Switching principle | Operating Voltage | Manual Override | Valve Pilot |
|---|---|---|---|---|
| Electrically | 5/3, closed center | 24 V DC | with detent | External |
AVENTICS 5/3-directional valve, Series 501 R501A2B60MA00F1
| Activation | Switching principle | Operating Voltage | Manual Override | Valve Pilot |
|---|---|---|---|---|
| Electrically | 5/3, closed center | 24 V DC | without detent | External |
AVENTICS 5/3-directional valve, Series 501 R501A2B70M11BF1
| Activation | Switching principle | Operating Voltage | Manual Override | Valve Pilot |
|---|---|---|---|---|
| Electrically | 5/3, pressurized center | 24 V DC | with detent | External |
AVENTICS 5/3-directional valve, Series 501 R501A2B70MA00F1
| Activation | Switching principle | Operating Voltage | Manual Override | Valve Pilot |
|---|---|---|---|---|
| Electrically | 5/3, pressurized center | 24 V DC | without detent | External |
