AVENTICS™ R501A2B10MA00F1

Part Number:

AVENTICS-R501A2B10MA00F1

$79.96

Qty:
ADD TO CART
Where to Buy
View Datasheet
DISTRIBUTOR 501 TIGHT JOINTS 5/2 FLOPPLUG-IN CONTROL MANUAL PULSE 24VDC

Specifications

ActivationElectrically

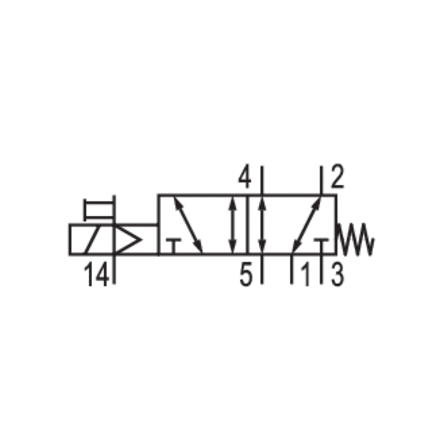

Switching principle5/2, with spring return
LED status displayYellow
Actuating controlSingle Solenoid
Sealing principleSoft seal
Manual overridewithout detent
Nominal flow Qn405 l/min
Min. working pressure2 bar
Max. working pressure8 bar
Protection class with connectionIP65
Reverse polarity protectionProtected against polarity reversal
Operational voltage24 V DC
Voltage tolerance DC-1.5
PilotExternal
Power consumption DC0.68 W
Duty cycle100%
Typ. switch-on time14 ms
Typ. switch-off time29 ms
Min. ambient temperature-10 °C
Max. ambient temperature50 °C
Weight0.93 kg
Housing materialDie cast zinc
