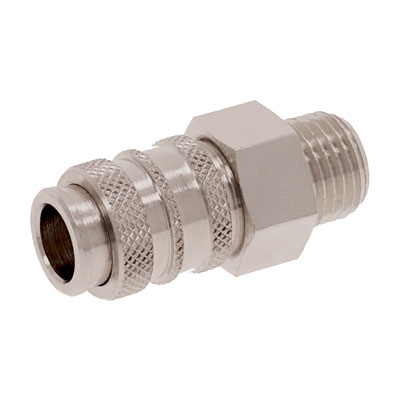

AVENTICS™ Lock coupling, Series CP1 1823376006

Part Number:

AVENTICS-1823376006

CP1-S-NW2,7-M5-EX

Specifications

Port DNW 2,7
Port GM5
Compressed air connection typeExternal thread
Nominal width NW2.7 mm
Nominal flow Qn165 l/min
Min. working pressure0 bar
Max. working pressure35 bar
Min. ambient temperature-20 °C
Max. ambient temperature100 °C
Min. medium temperature-20 °C
Max. medium temperature100 °C
MediumCompressed air
Delivery unit2 piece
Weight per piece0.008 kg
Housing materialBrass
Material release bushingBrass
Seal materialAcrylonitrile butadiene rubber
Material connectorBrass
