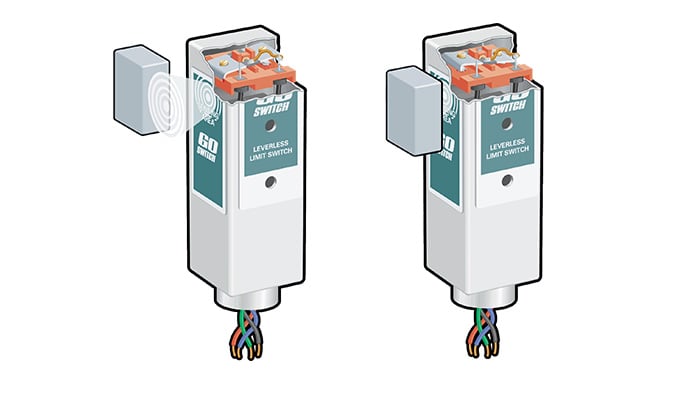

Square model TopWorx GO Switches are ideal replacements for traditional mechanical limit switches. They are typically used for extended sensing applications that require less precision and come in side- and end-sensing variations. Two internal magnets, with one being more dominant, effect the position of an armature that supports the sealed contacts. A ferrous or magnetic target entering the sensing area diverts the magnetic flux field and makes the other magnet more dominant, resulting in the armature closing the contacts and generating a signal.
Related Products
Offering the same features as the GO™ Switch Model 11, The Model 21 GO™ Switch provides a smaller design. All GO™ Switch wiring options include A/C, D/C, N/O or N/C, consumes no power to operate and has no current leakage or voltage drop.
A lower profile version of model 12, model 22 is also available with ATEX/IECEx Zone 1, Ex ’de’ flameproof and increased safety hazardous area classification in a smaller package.
The GO™ Switch Model 11 features sealed gold flashed contacts, no-touch sensing and snap action response in a square switch design with a 3/8™ sensing range.
The GO™ Switch Model 81 offers end sensing and an optional Double Pole Double Throw (DPDT) contact arrangement With a 1/4™ sensing range, wiring options include; AC, DC, N/O or N/C choices.
