Marine Controls

AVENTICS™ OR unit 0821000005

부품 번호:

AVENTICS-0821000005

US$86.74

수량:
장바구니에 담기
구매처
CAD 보기
데이터시트 보기
CELLULE OU 1

사양

Sealing principleSoft seal
TypePoppet valve
MediumCompressed air
Max. particle size1 µm
Min. ambient temperature0 °C
Max. ambient temperature80 °C
Min. medium temperature0 °C
Max. medium temperature80 °C
Min. oil content of compressed air0 mg/m³
Max. oil content of compressed air1 mg/m³

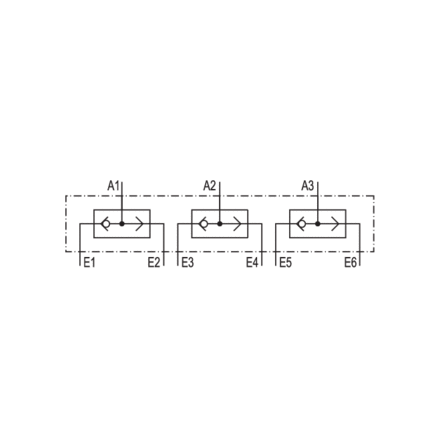

Logic functionShuttle valves (OR)
Connection typePlate valve with pipe connection
Nominal flow Qn80 l/min
Min. working pressure1 bar
Max. working pressure10 bar
Weight0.03 kg
Housing materialPolyamide
Seal materialAcrylonitrile butadiene rubber
