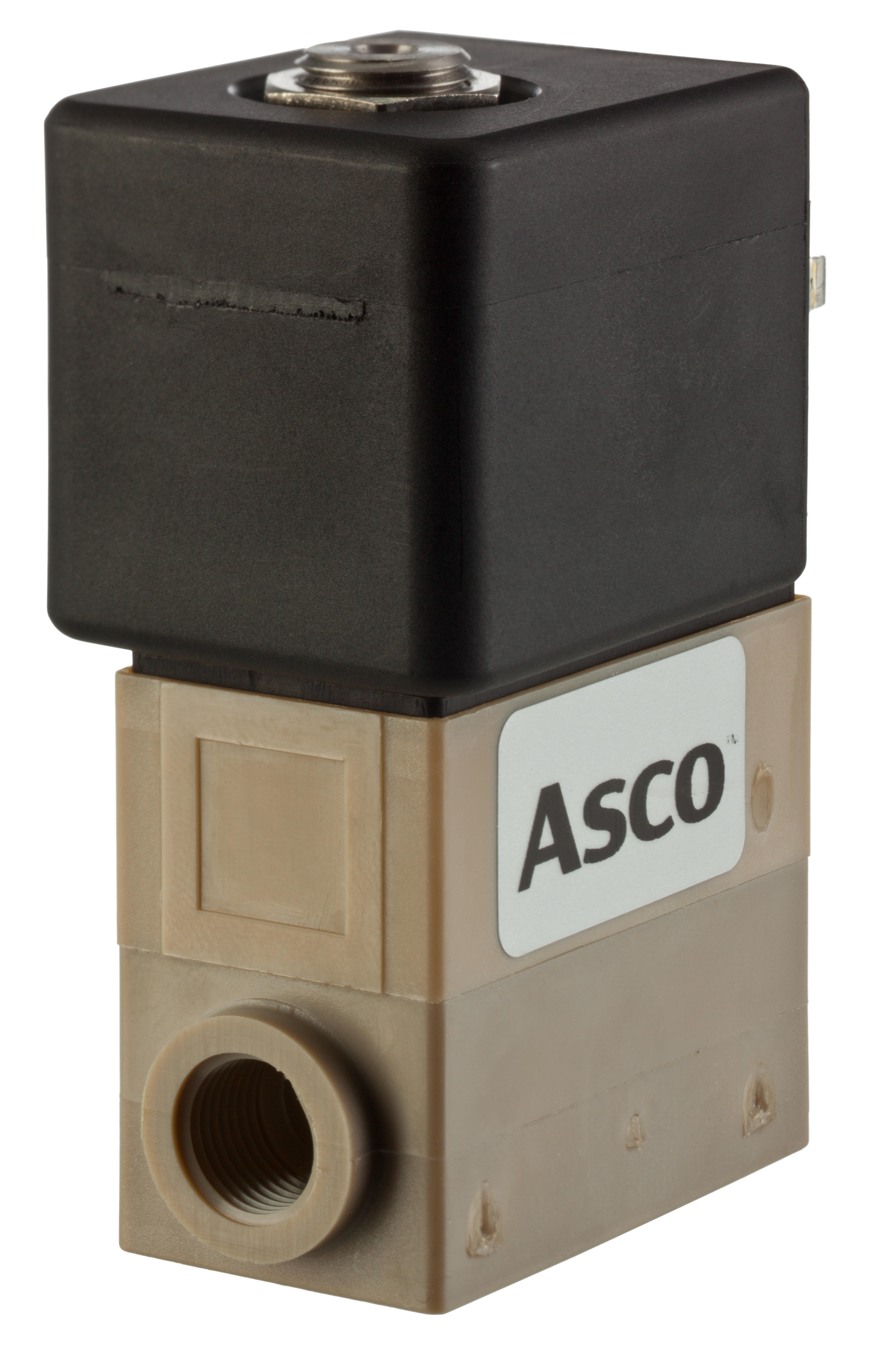

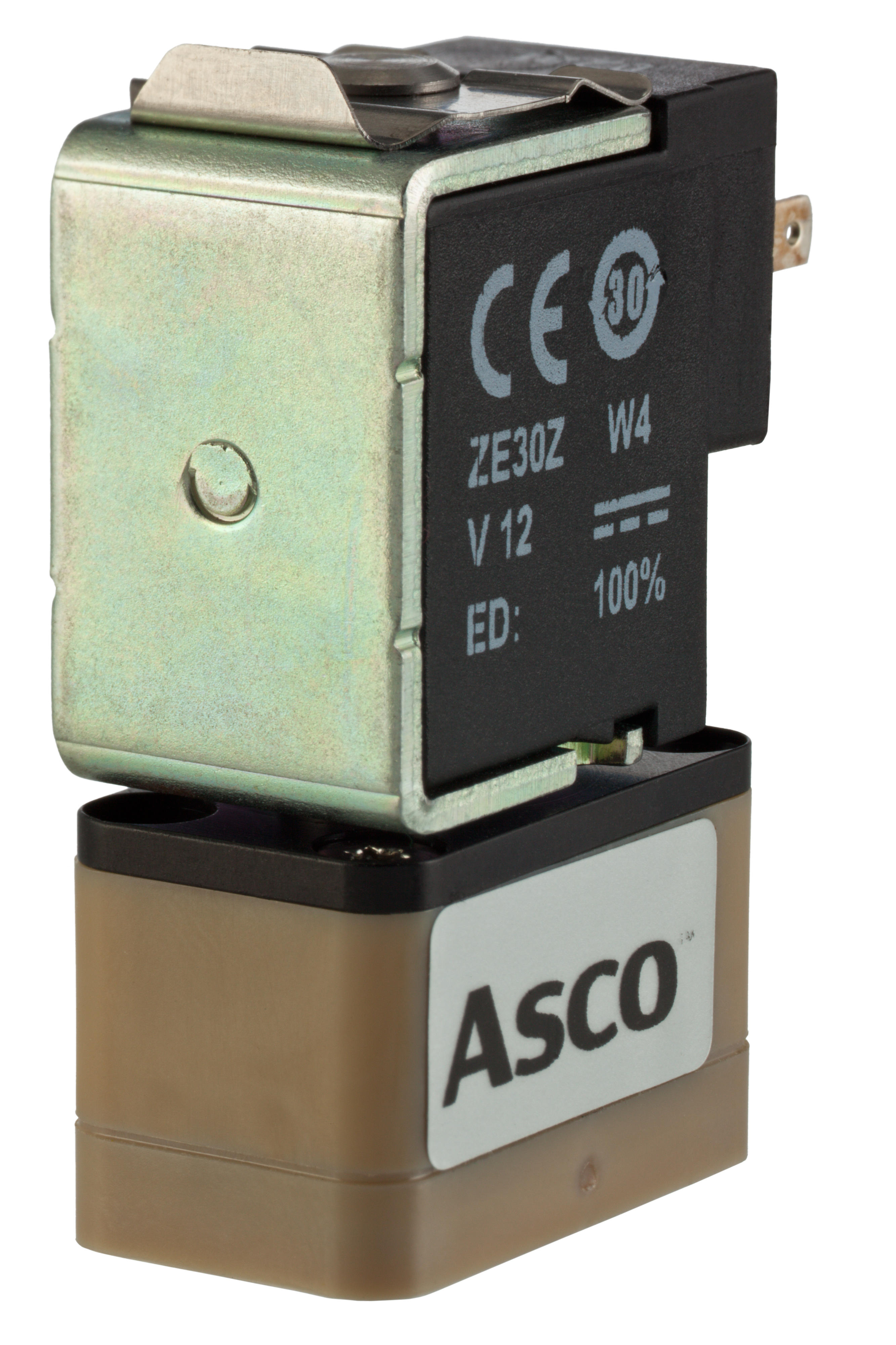

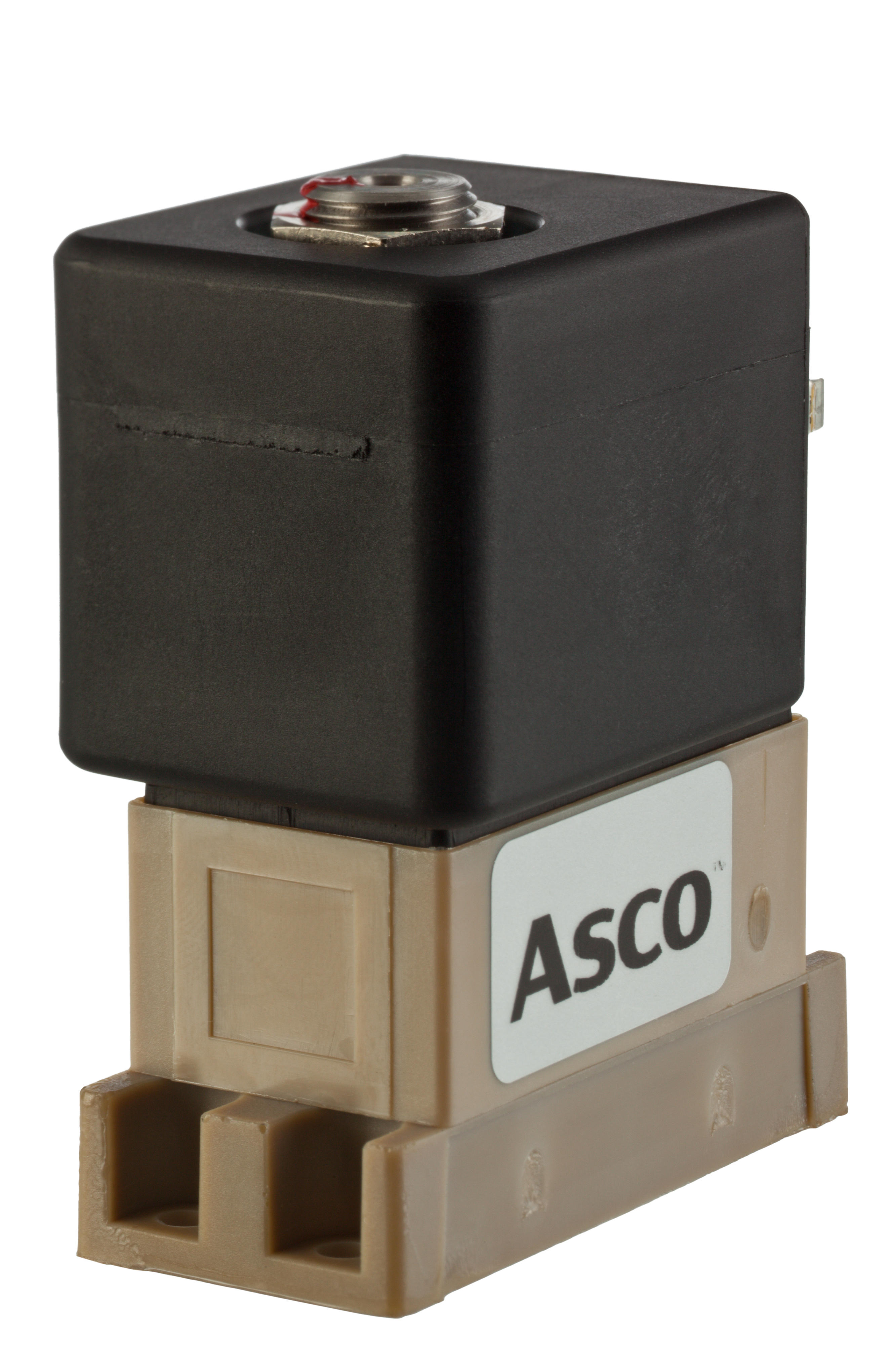

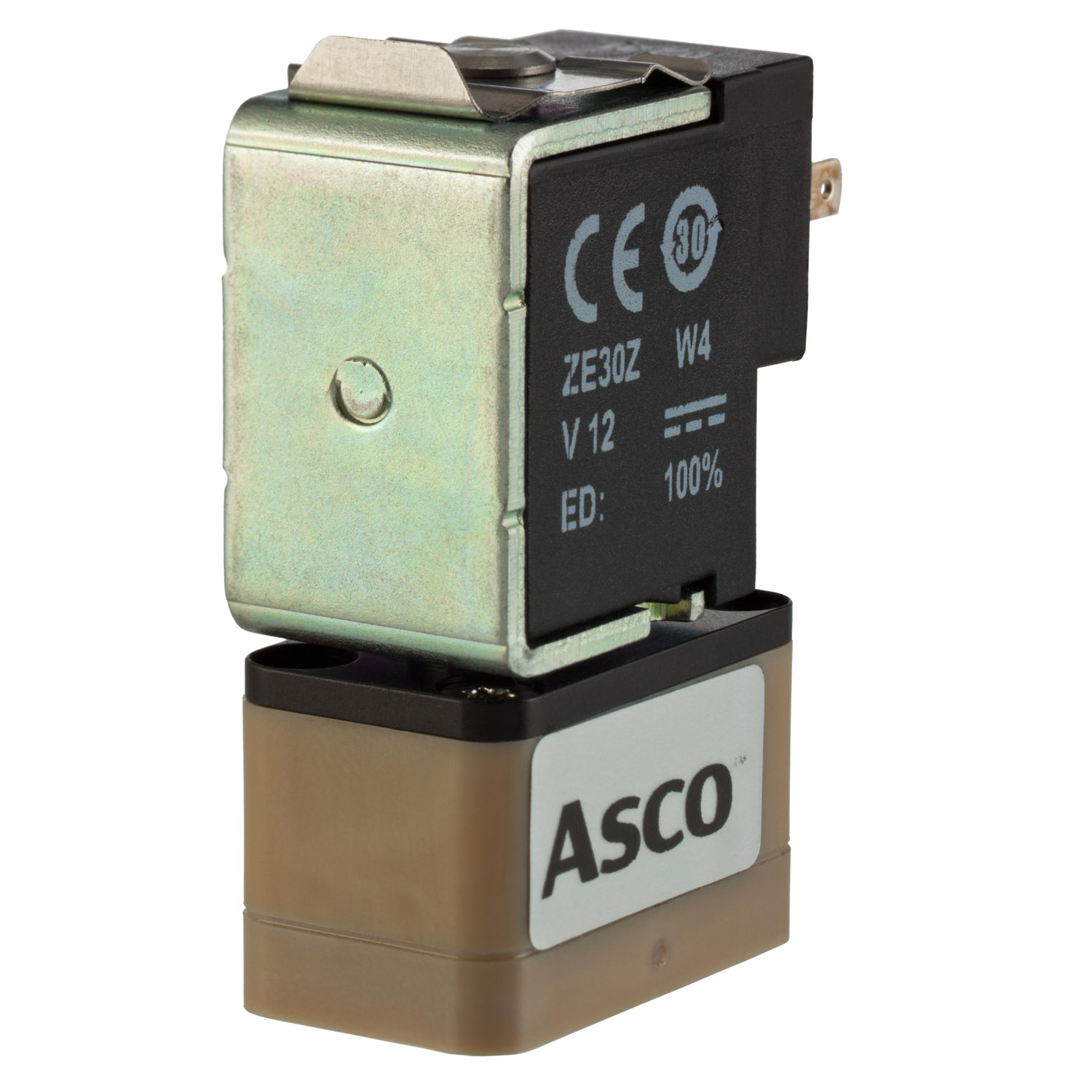

ASCO™ 068 Flapper Solenoid Valve

The ASCO Series 068 flapper isolation solenoid valve is designed for use with neutral or aggressive liquids and gases in analytical and medical systems. Its excellent self-draining capability and easy-to-flush low-volume internal cavity make the valve ideal in applications where cross-contamination must be minimized. The valve's special flapper mechanism results in no pumping or sticking effect of the valve seat. Typical applications include hematology, chromatography, liquid sample preparation, in-vitro diagnostics, DNA sequencing, and surgical fluid management.

Specifications

Valve ActuationProportional; Solenoid
Body MaterialEngineered Plastics
MediaAggressive Liquids/Gases
Pipe / Port Size1/8 "; M5
Port TypeG ISO228/1-G BSPP
Function2 way - 2/2 Normally Closed
FlowFrom 0.5 Cv to 1.0 Cv; From 0.1 Cv to 0.5 Cv
Voltage12 DC; 24 DC; 12 to 24 DC Voltage Ranging | 60
Operating EnvironmentCorrosive; Indoor
Standards / RegulationsIP65
