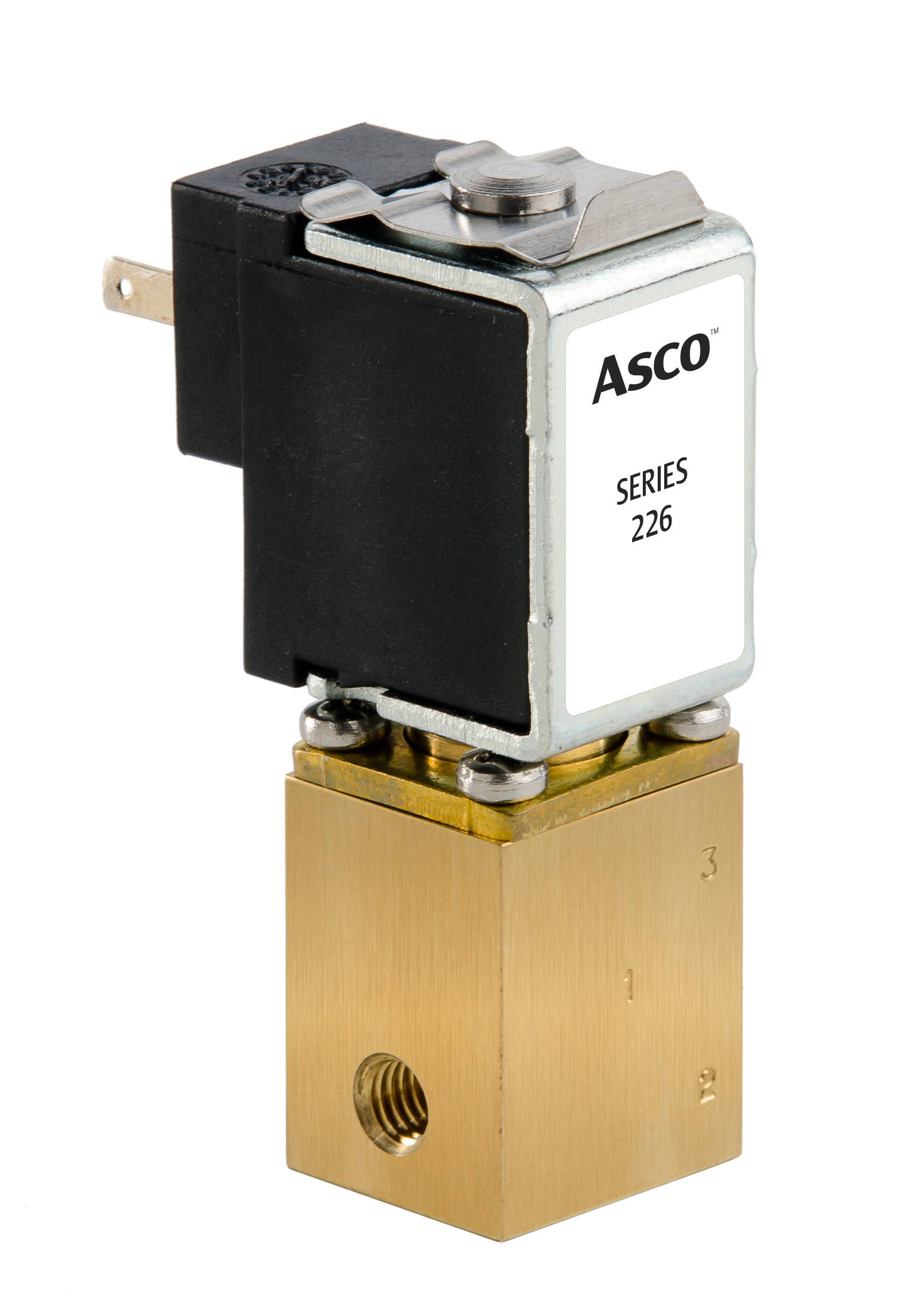

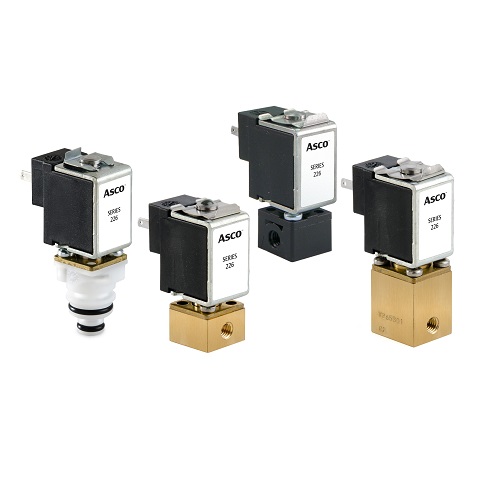

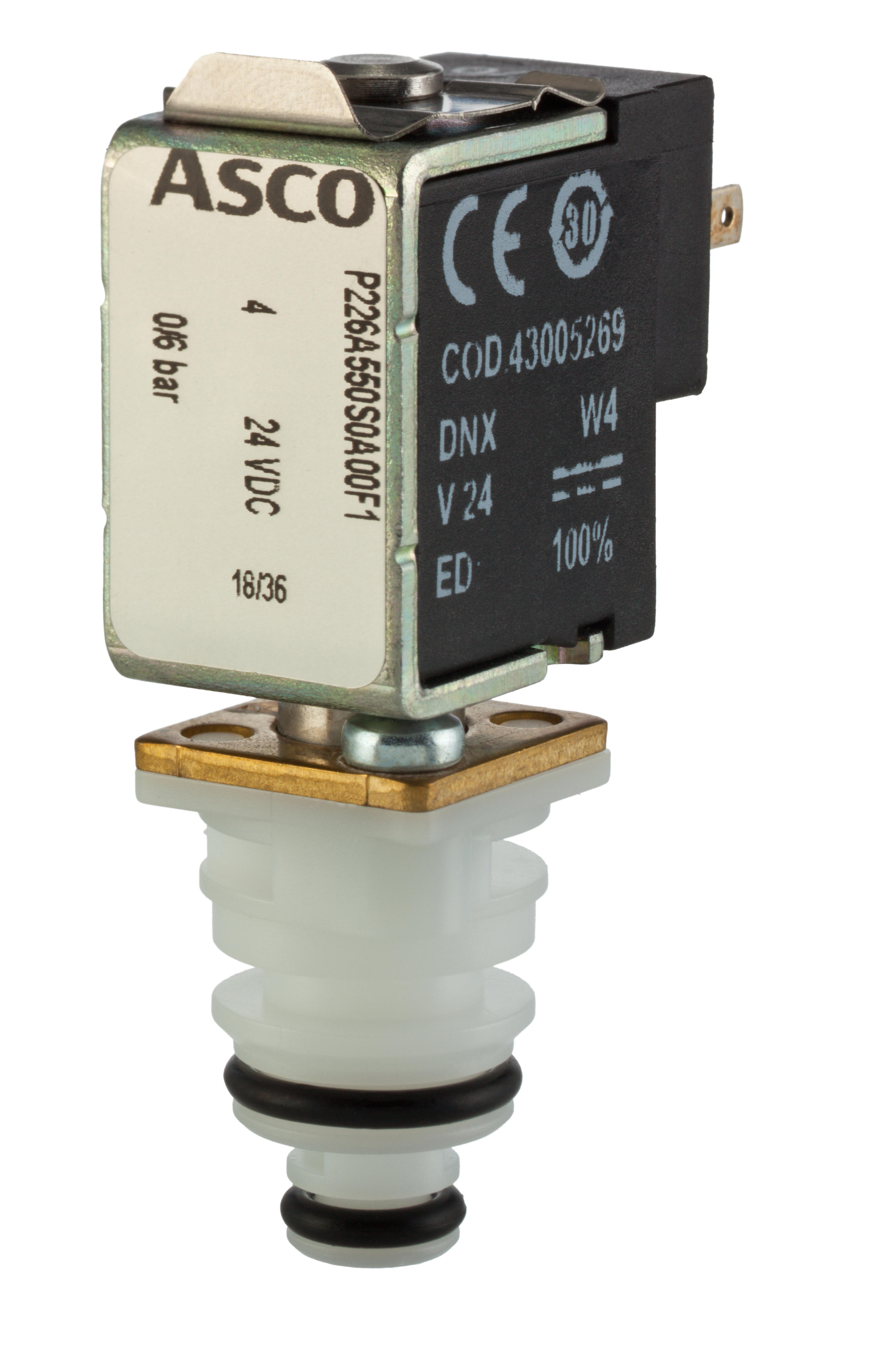

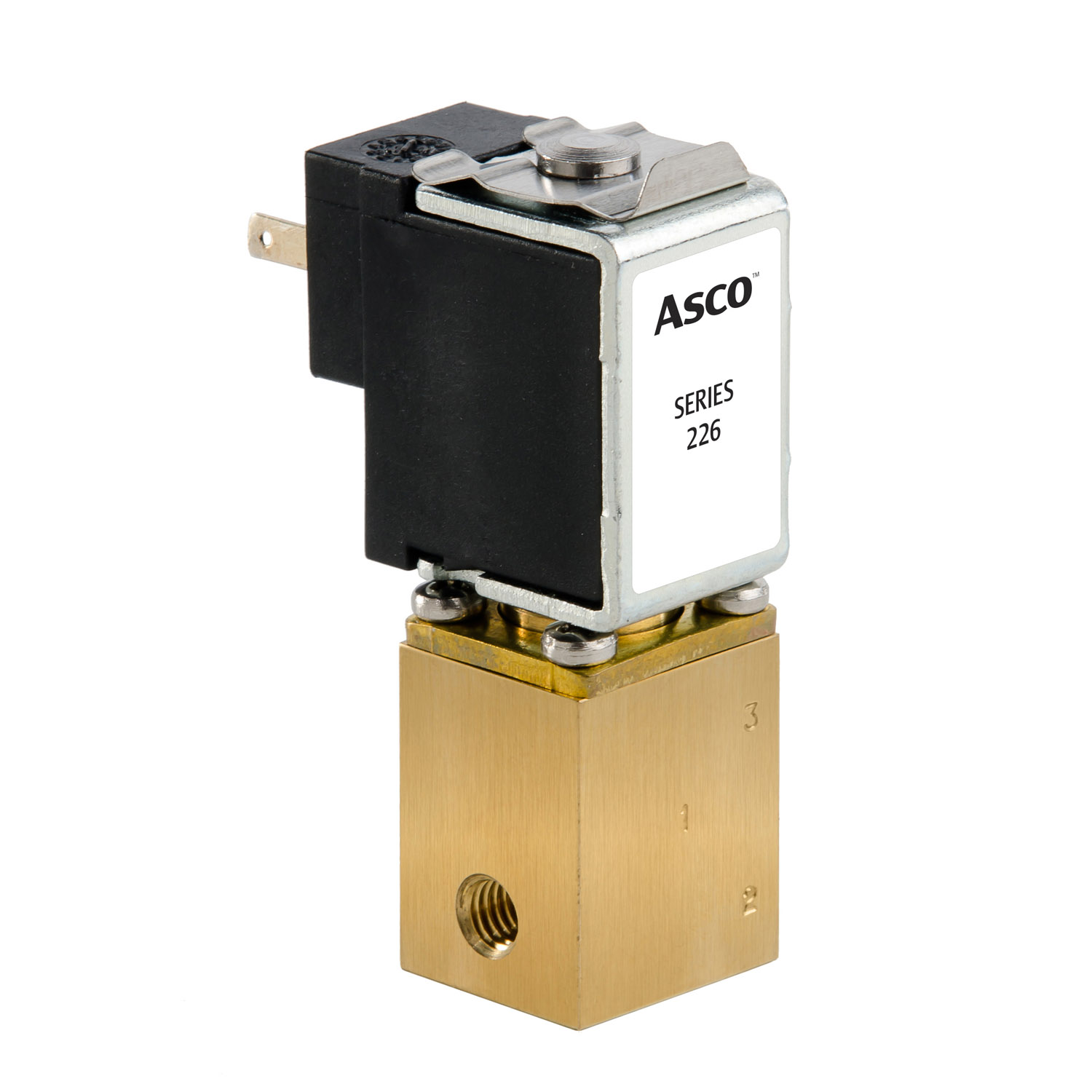

ASCO™ 226 Miniature Solenoid Valves

ASCO 226 miniature solenoid valves are designed to handle both liquid and gases in analytical, diagnostic and therapeutic medical devices and instruments. With a diverse array of fit, form, and function, the 226 Series is ideally suited for applications such as Dental Equipment, Gas Chromatography, Industrial analyzers, and respiratory devices.

Specifications

Valve ActuationSolenoid, Solenoid - Direct Acting, Solenoid - Latching
Body MaterialBrass, Brass - Nickel Plated, POM
MediaAir, Inert Gas, Water
Pipe / Port SizeM5
Port TypeFlange, Push-in
Function2 way - 2/2 Normally Closed, 2 way - 2/2 Normally Open, 3 way - 3/2 Universal, 3 way - 3/2 Normally Open, 3 way - 3/2 Normally Closed
FlowLess than .05 Cv, From .05-.1 Cv, From 0.1 Cv to 0.5 Cv
Voltage6 DC, 12 DC, 24 DC
Max Differential / Max Operating Pressure0 to 232 PSI
Operating EnvironmentIndoor
Standards / RegulationsIP65, RoHS
