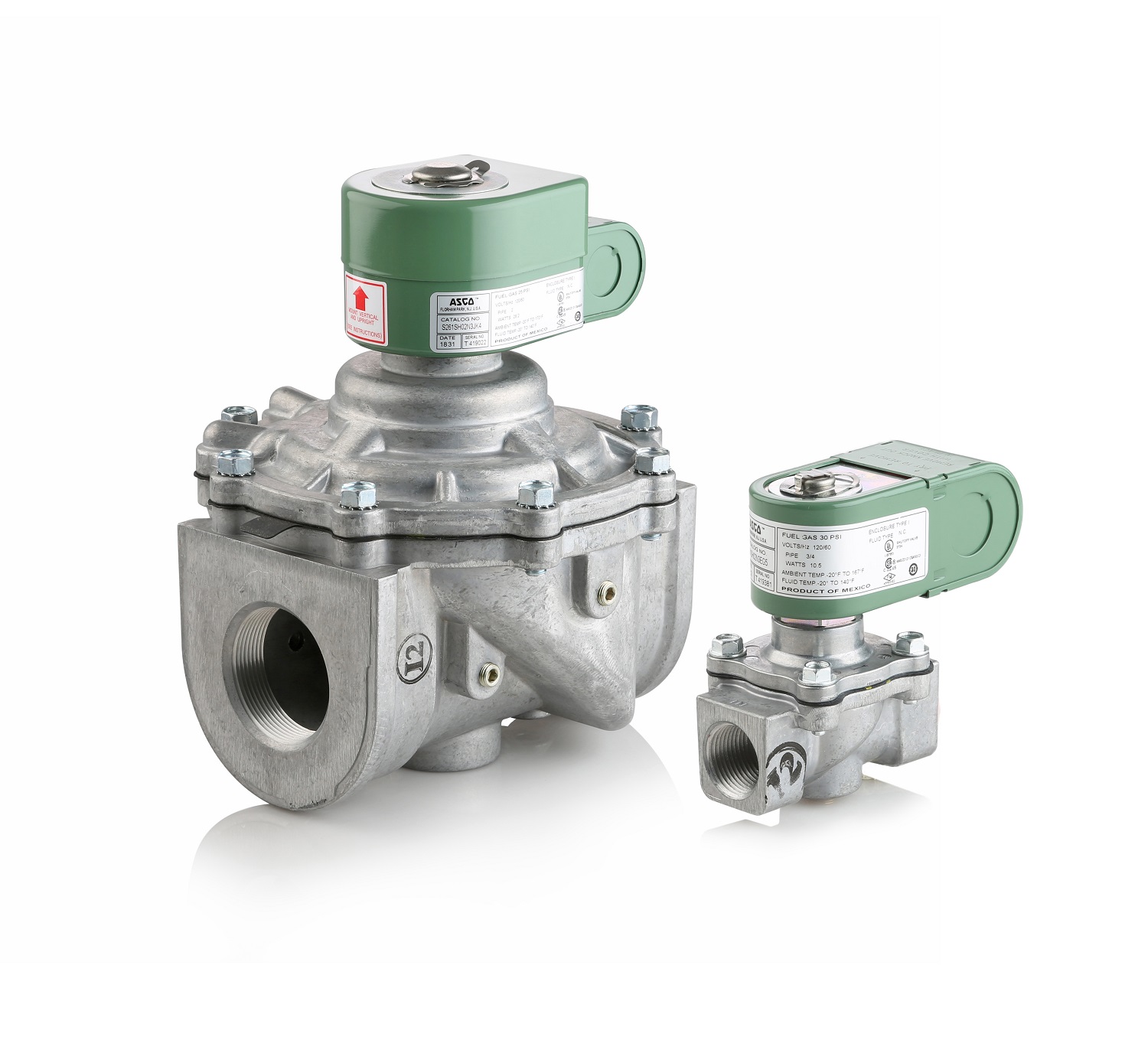

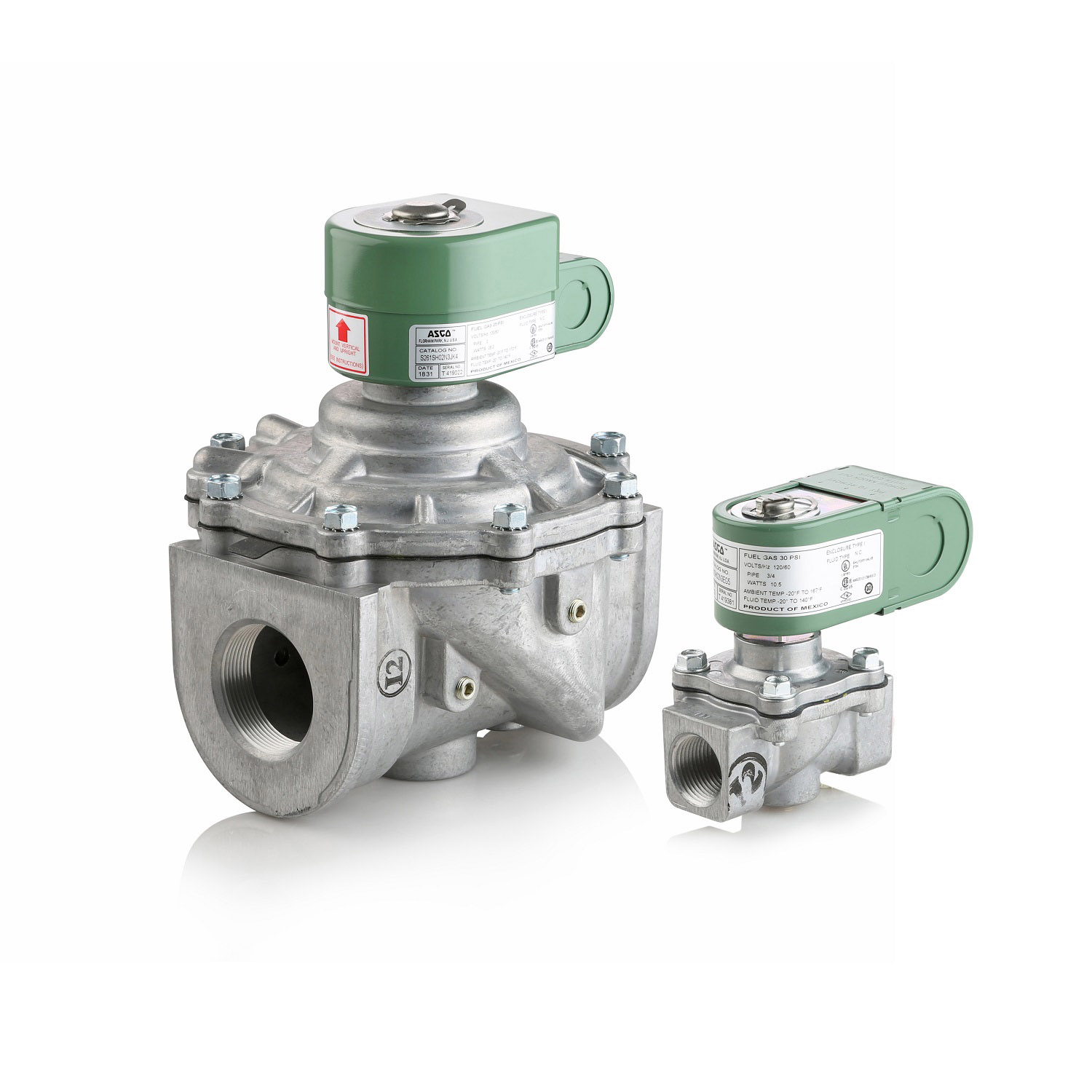

ASCO™ Series S261 Gas Shut Off Valve

Contact Sales
The ASCO Series S261 is a line of solenoid valves designed for on-off control of fuel gas in commercial and industrial gas burners. The pilot-operated valves have die-cast aluminum bodies, are designed for 2-way, normally closed operation, and have high-pressure capabilities.

Specifications

Valve ActuationSolenoid
Body MaterialAluminum
MediaNatural Gas
Pipe / Port Size1/2 "; 3/8 "; 3/4 "; 1 "; 1 1/4 "; 1 1/2 "; 2 "; 2 1/2 "; 3 "
Port TypeNPTF
Function2 way - 2/2 Normally Open
Voltage24 AC, 120 AC, 230 AC
Max Differential / Max Operating PressureVacuum to 150 PSIG
Operating EnvironmentIndoor
Standards / RegulationsCSA, UL, FM
