AVENTICS™ Series 645 Pressure Regulator and Filter

Contact Sales
Configure
View Catalog
The Series 645 Railway Regulators and Filters are designed for the unique needs of the railway industry. The units meet railway regulations for Fire Safety (EN 45545: HL3), Shock & Vibration (EN 61373: Cat 1 Class B), and Corrosion Resistance (ISO 9227).

The Series 645 Railway Regulators are used to regulate the pressure on railway applications such as control brakes, horns, pantographs, and sanding systems to increase wheel-to-rail friction in poor weather conditions. They are available in four versions, including high and low flow, in ported or subbase mounted configurations.

The Series 645 Railway Filters provide exceptional filtration to ensure oil and particulates are removed from the compressed air system. Large high-flow elements ensure maximum element change out intervals with minimum system pressure drop and maximum air flow.

Your selection:
    10 bar
    0.5 bar
    Manual
    0.3 µm
    5 µm
    198 l/min
    207 l/min
    480 l/min
    1133 l/min
    1250 l/min
    1650 l/min
    1/4 NPT
    Base plate
    G 1/4
    14 bar
    16 bar
    Without pressure gauge, with transition plate
    without pressure gauge
    Filter
    Pressure regulator
    1 bar
    1 - 8 of 8 results for products
    Select Columns
    Regulation Range
    Regulation Range min.
    Condensate drain
    Filter porosity
    Flow (L/M)
    Compressed air connection
    Max Working Pressure
    Version Manometer
    Maintenance Unit Parts
    Min Working Pressure
    Best Match
    Best Match
    Product Name (A-Z)
    Product Name (Z-A)
    Product SKU (A-Z)
    Product SKU (Z-A)
    No Image Available For Product
    8645ABBK2JA000Q

    AVENTICS Filter, Series 645 8645ABBK2JA000Q

    Regulation RangeRegulation Range min.Condensate drainFilter porosityFlow (L/M)
    Manual5 µm1250 l/min
    ADD TO LIST
    No Image Available For Product
    8645AFDK2JA000Q

    AVENTICS Filter, Series 645 8645AFDK2JA000Q

    Regulation RangeRegulation Range min.Condensate drainFilter porosityFlow (L/M)
    Manual0.3 µm480 l/min
    ADD TO LIST
    No Image Available For Product
    G645ABBK2JA000Q

    AVENTICS Filter, Series 645 G645ABBK2JA000Q

    Regulation RangeRegulation Range min.Condensate drainFilter porosityFlow (L/M)
    Manual5 µm1250 l/min
    ADD TO LIST
    No Image Available For Product
    G645AFDK2JA000Q

    AVENTICS Filter, Series 645 G645AFDK2JA000Q

    Regulation RangeRegulation Range min.Condensate drainFilter porosityFlow (L/M)
    Manual0.3 µm480 l/min
    ADD TO LIST
    No Image Available For Product
    G645ARS120A00H0

    AVENTICS Pressure regulator, Series 645 G645ARS120A00H0

    Regulation RangeRegulation Range min.Condensate drainFilter porosityFlow (L/M)
    10 bar0.5 bar207 l/min
    ADD TO LIST
    No Image Available For Product
    G645ARS22PA00H0

    AVENTICS Pressure regulator, Series 645 G645ARS22PA00H0

    Regulation RangeRegulation Range min.Condensate drainFilter porosityFlow (L/M)
    10 bar0.5 bar1650 l/min
    ADD TO LIST
    No Image Available For Product
    T645ATS100A00H0

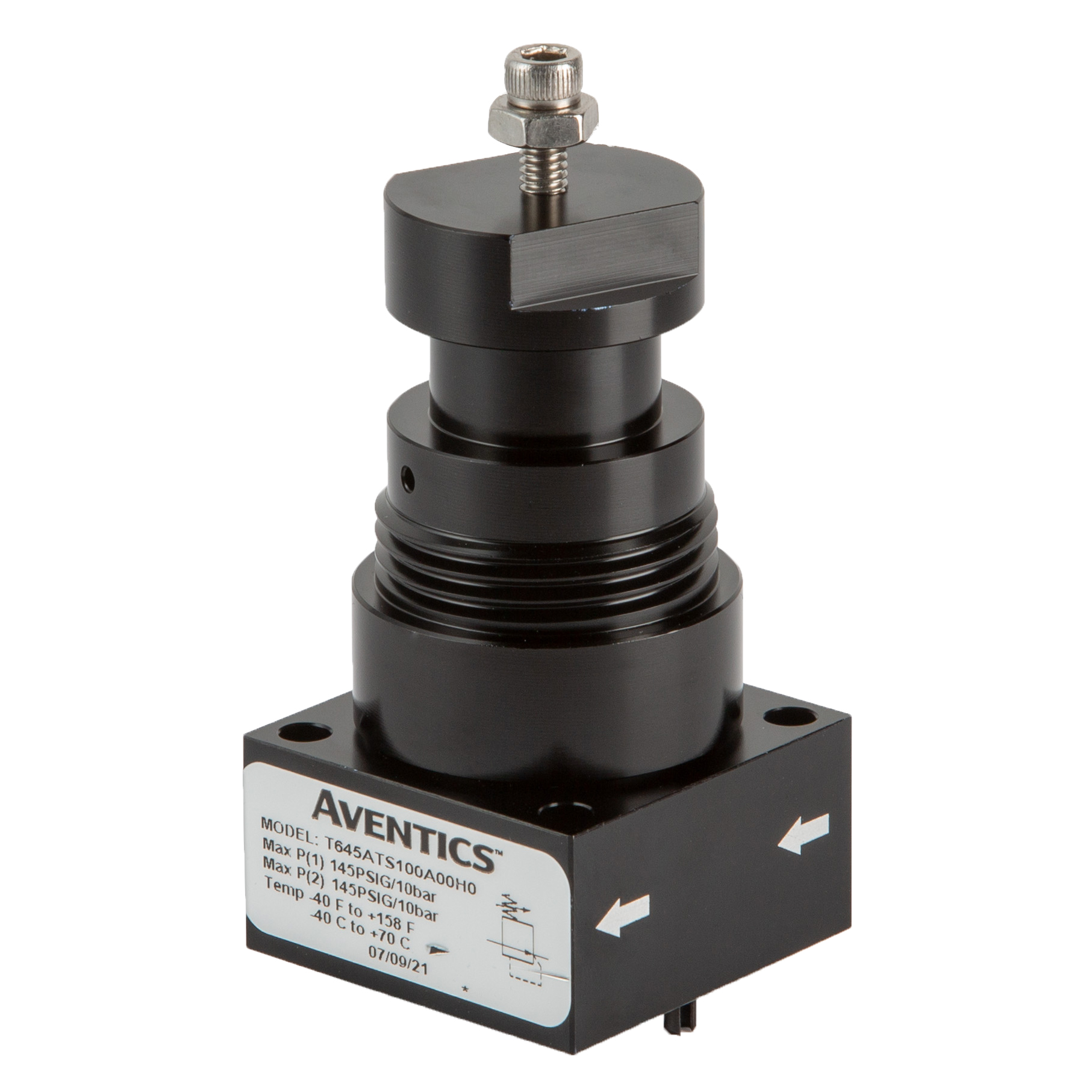

    AVENTICS Pressure regulator, Series 645 T645ATS100A00H0

    Regulation RangeRegulation Range min.Condensate drainFilter porosityFlow (L/M)
    10 bar0.5 bar198 l/min
    $190.51
    ADD TO LIST
    No Image Available For Product
    T645ATS200A00H0

    AVENTICS Pressure regulator, Series 645 T645ATS200A00H0

    Regulation RangeRegulation Range min.Condensate drainFilter porosityFlow (L/M)
    10 bar0.5 bar1133 l/min
    ADD TO LIST
