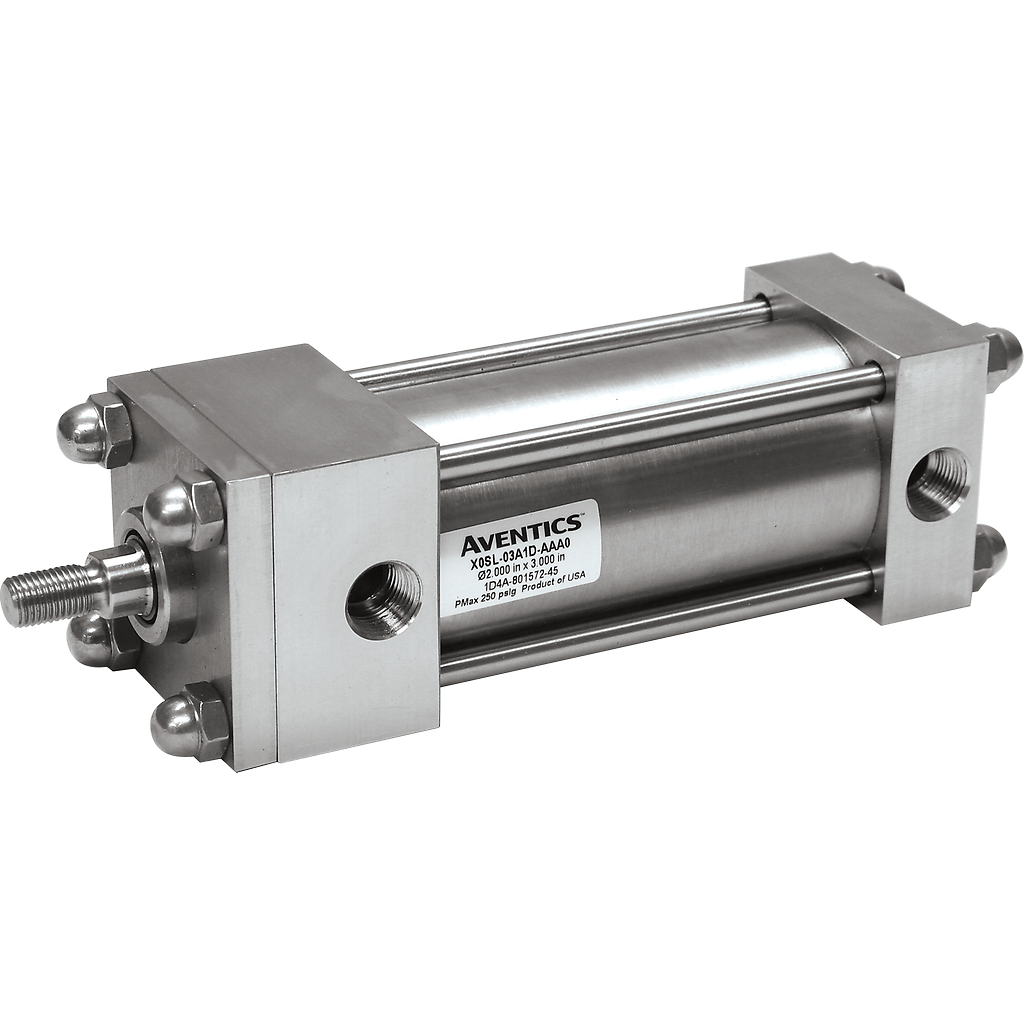

AVENTICS™ Series S Stainless Steel NFPA Interchangeable Cylinders

Contact Sales
The AVENTICS S Series is a stainless-steel NFPA Interchangeable pneumatic cylinder line designed to perform in the toughest wash down applications. Its stainless-steel construction provides outstanding corrosion resistance. The cylinders incorporate an extra-long bushing and standard oversized wear band located on the rear of the piston. In addition, the proven T-Seal piston seal configuration with carboxilated nitrile and self-lubricating PTFE compound provide extended wear and long life.

Specifications

Bore1-1/2", 2", 2-1/2", 3-1/4", 4", 5", 6", 8"
Operating EnvironmentCorrosive; Indoor; Washdown
StrokeUp to 99" Max (standard)
Standards / RegulationsNFPA
Max Operating Pressure150 psi (air)
