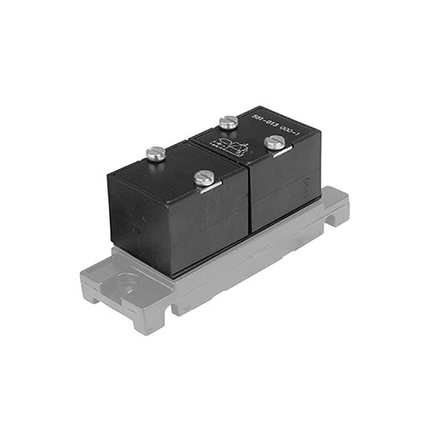

AVENTICS™ Signal interrupter 5510130000

Part Number:

AVENTICS-5510130000

$308.19

Qty:
ADD TO CART
View Datasheet
551-013

Specifications

MediumCompressed air
Max. particle size5 µm
Min. ambient temperature-20 °C
Max. ambient temperature70 °C
Min. medium temperature-20 °C
Max. medium temperature70 °C
Min. oil content of compressed air0 mg/m³
Max. oil content of compressed air1 mg/m³
Nominal flow Qn120 l/min
Min. working pressure1 bar
Max. working pressure10 bar
Weight0.11 kg
Housing materialPolyoxymethylene
Seal materialAcrylonitrile butadiene rubber
