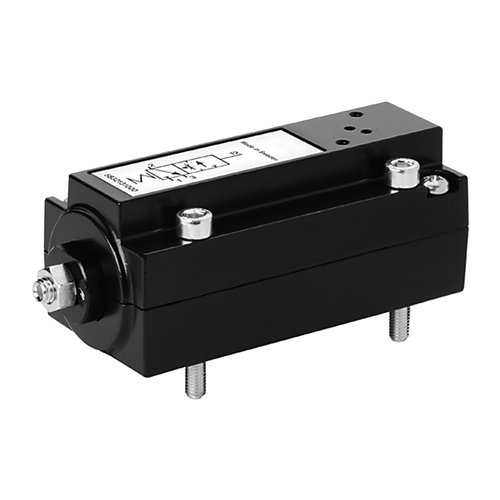

AVENTICS™ Soft-start valve 5832131000

Part Number:

AVENTICS-5832131000

$532.92

Qty:
ADD TO CART
View Datasheet
AIR CON PRESSURISING UNIT G 1/2

Specifications

ActivationPneumatically
Nominal flow Qn3300 l/min
Min. working pressure3 bar
Max. working pressure10 bar
Valve typeSpool valve
VersionISO 1
Min. ambient temperature-15 °C
Max. ambient temperature50 °C
MediumCompressed air
Max. particle size5 µm
Min. oil content of compressed air0 mg/m³
Max. oil content of compressed air5 mg/m³
Flow conductance C11.3 l/(s*bar)
Weight0.39 kg
Housing materialAluminum
Seal materialAcrylonitrile butadiene rubber
