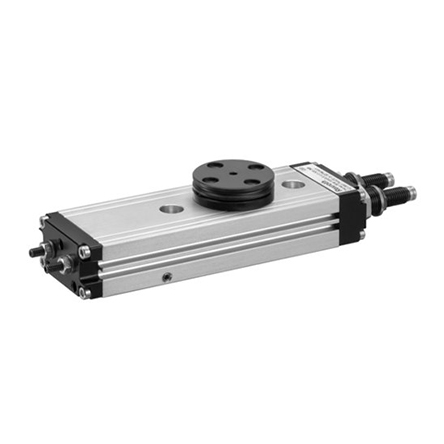

• 131807--7267428

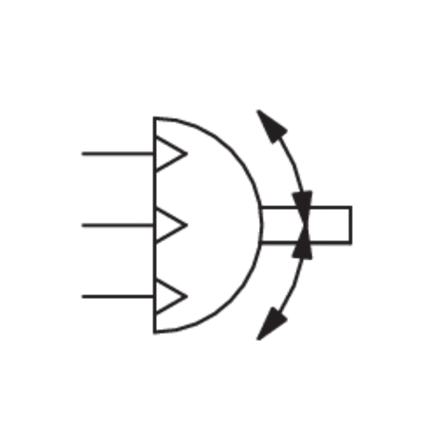

  • z_a106--7268248
Main Image
Main Image

AVENTICS™ Rotary Compact Module, Series RCM-SH R412000400

Part Number:

AVENTICS-R412000400

$2,707.58

Qty:
ADD TO CART
View Datasheet
RCM-16-180-SH-00-IP

Specifications

Diameter16 mm
Compressed air connectionM5
Magnetic pistonwith magnetic piston
Rotary compact module versionDouble piston with rack
Easy2Combinecapable
with integrated intermediate positionwith integrated intermediate position
Frame sizeRCM-16
Theoretical torque at6 bar
Min. swivel times0.32 s
Air consumption per rotation22.14 cm³
Max. permissible axial bearing load490 N
Radial shaft load580 N
Max. permissible mass moment of inertia80 kg cm²
Theoretical torque1.7 Nm
Repetitive precision0.05 °
Cushioninghydraulic
Cushioningnon-adjustable
Min. angle of rotation0 °
Max. angle of rotation180 °
Min. working pressure4 bar
Max. working pressure8 bar
Min. ambient temperature5 °C
Max. ambient temperature60 °C
Min. medium temperature5 °C
Max. medium temperature60 °C
