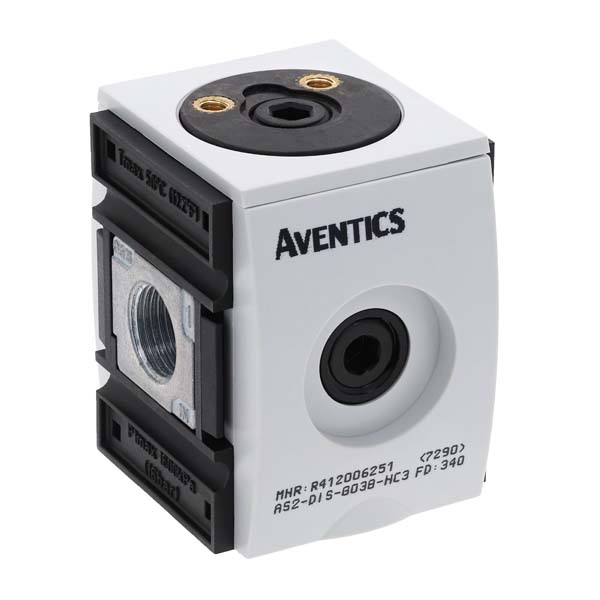

AVENTICS™ Distributor, Series AS2-DIS R412006251

Part Number:

AVENTICS-R412006251

$79.61

Qty:
ADD TO CART
View Datasheet
AS2-DIS-G038-NC3

Specifications

PartsDistributor
PortG 3/8
TypeCan be assembled into blocks
VersionDistributor 3x
Mounting orientationAny
Min. working pressure0 bar
Max. working pressure16 bar
Min. ambient temperature-10 °C
Max. ambient temperature50 °C
MediumCompressed air, Neutral gases
Nominal flow Qn 1 to 23600 l/min
Nominal flow Qn 1 to 32000 l/min
Nominal flow Qn 1 to 4900 l/min
Nominal flow Qn 1 to 52000 l/min
Weight0.25 kg
Housing materialPolyamide
Material front plateAcrylonitrile butadiene styrene
Seal materialAcrylonitrile butadiene rubber
Material threaded bushingDie cast zinc
