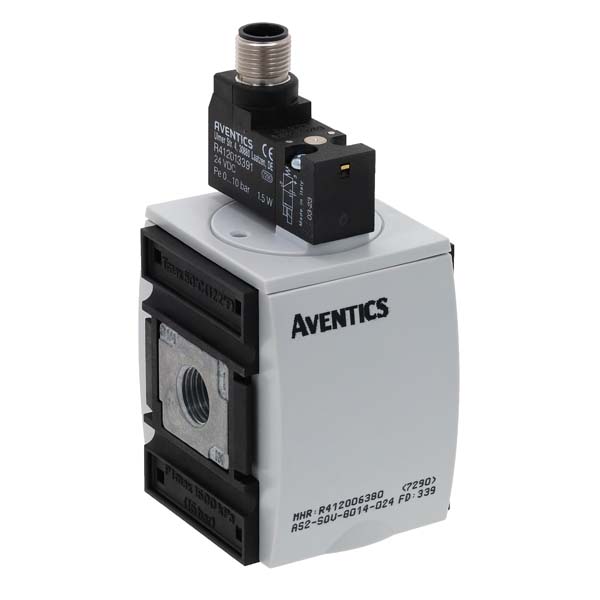

AVENTICS™ 3/2-directional valve, electrically operated, Series AS2-SOV R412006380

Part Number:

AVENTICS-R412006380

$402.75

Qty:
ADD TO CART
View Datasheet
AS2-SOV-G014-3/2-024-M12

Specifications

ActivationElectrically
Nominal flow Qn2000 l/min
Compressed air connectionG 1/4
Min. working pressure2.5 bar
Max. working pressure10 bar
Operational voltage DC24 V
Sealing principleSoft seal
Connection typePipe connection
Parts3/2-directional valve
Can be assembled into blocksCan be assembled into blocks
Basic valve equipmentBasic valve with pilot valve
TypePoppet valve
Min. ambient temperature-10 °C
Max. ambient temperature50 °C
MediumCompressed air, Neutral gases
Max. particle size25 µm
Compressed air connection, exhaustG 1/4
Nominal flow Qn 1 to 22000 l/min
Nominal flow Qn 2 to 3380 l/min
Operating voltage24 V DC
Power consumption DC2 W
Protection class with connectionIP65
Electrical connection 1, typePlug
Electrical connection 1, thread sizeM12x1
Weight0.219 kg
