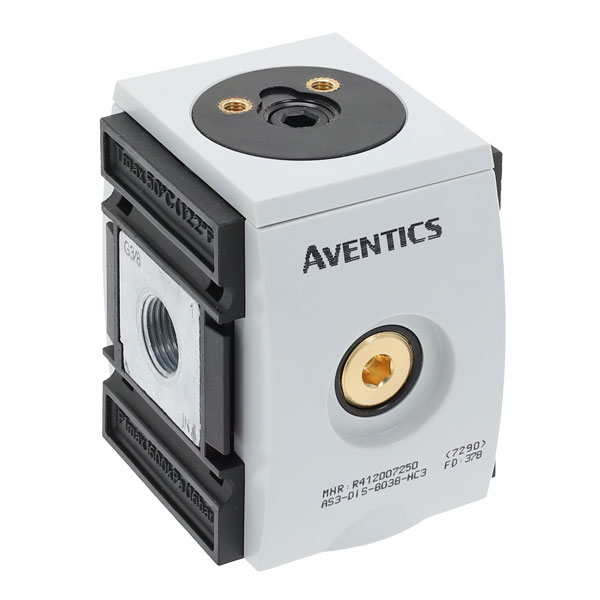

AVENTICS™ Distributor, Series AS3-DIS R412007250

Part Number:

AVENTICS-R412007250

$89.87

Qty:
ADD TO CART
View Datasheet
AS3-DIS-G038-NC3

Specifications

PartsDistributor
PortG 3/8
TypeCan be assembled into blocks
VersionDistributor 4x
Mounting orientationAny
Min. working pressure0 bar
Max. working pressure16 bar
Min. ambient temperature-10 °C
Max. ambient temperature50 °C
MediumCompressed air, Neutral gases
Nominal flow Qn 1 to 27250 l/min
Nominal flow Qn 1 to 35500 l/min
Nominal flow Qn 1 to 42300 l/min
Nominal flow Qn 1 to 52250 l/min
Nominal flow Qn 1 to 62300 l/min
Weight0.32 kg
Housing materialPolyamide
Material front plateAcrylonitrile butadiene styrene
Seal materialAcrylonitrile butadiene rubber
Material threaded bushingDie cast zinc
