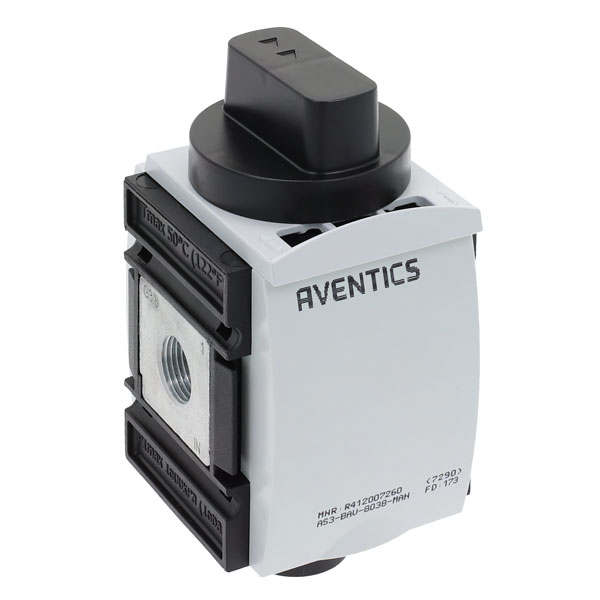

AVENTICS™ 3/2-shut-off valve, mechanically operated, Series AS3-BAV R412007260

Part Number:

AVENTICS-R412007260

$178.58

Qty:
ADD TO CART
View Datasheet
AS3-BAV-G038-MAN

Specifications

ActivationMechanical
Nominal flow Qn11000 l/min
Compressed air connectionG 3/8
Min. working pressure0 bar
Max. working pressure16 bar
Actuating elementrotary switch
Sealing principlemetal/metal sealing
TypeBall Valve
PartsShut-off valve
Lock typefor padlocks, lockable
Can be assembled into blocksCan be assembled into blocks
Min. ambient temperature-10 °C
Max. ambient temperature50 °C
MediumCompressed air, Neutral gases
Max. particle size25 µm
Compressed air connection, exhaustG 1/2
Nominal flow Qn 1 to 211000 l/min
Nominal flow Qn 2 to 3130 l/min
Weight0.446 kg
Housing materialPolyamide
Seal materialPolytetrafluorethylene
Material locking baseDie cast zinc
Material, front coverAcrylonitrile butadiene styrene
Material threaded bushingDie cast zinc
Material locking baseDie cast zinc
