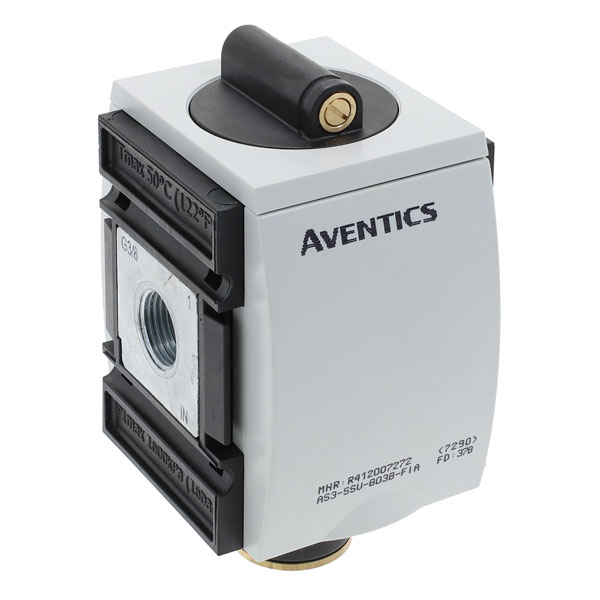

AVENTICS™ Filling valve, Series AS3-SSV R412007272

Part Number:

AVENTICS-R412007272

$256.30

Qty:
ADD TO CART
View Datasheet
AS3-SSV-G038-FIA

Specifications

ActivationPneumatically
PartsFilling valve
Nominal flow Qn4500 l/min
Compressed air connectionG 3/8
Min. working pressure2.5 bar
Max. working pressure16 bar
Sealing principleSoft seal
TypePoppet valve
Can be assembled into blocksCan be assembled into blocks
Min. ambient temperature-10 °C
Max. ambient temperature50 °C
MediumCompressed air, Neutral gases
Max. particle size40 µm
Weight0.43 kg
Housing materialPolyamide
Seal materialAcrylonitrile butadiene rubber
Material, front coverAcrylonitrile butadiene styrene
Material threaded bushingDie cast zinc
