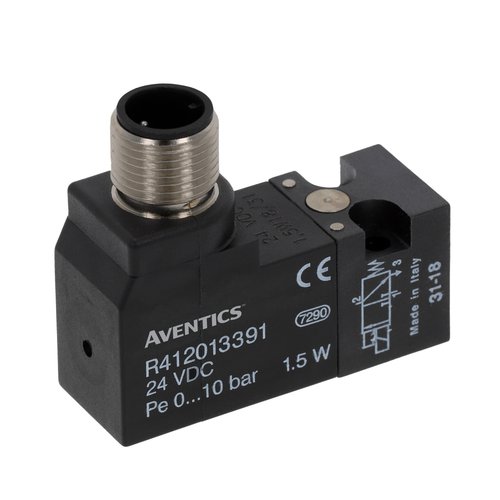

AVENTICS™ 3/2-directional valve, Series DO16 R412013391

Part Number:

AVENTICS-R412013391

$102.01

Qty:
ADD TO CART
DO16-3/2NC-024DC-M12X1.75-ND

Specifications

ActivationElectrically
NoteCoil width 15 mm, Pilot valve only
Frame sizeDO16
Valve typePoppet valve
Switching principle3/2, with spring return
Sealing principleSoft seal
Manual overridewithout detent
Compressed air connectionBase plate
Compressed air connection outputBase plate
Nominal flow Qn18 l/min
Min. working pressure0 bar
Max. working pressure10 bar
Electrical connection sizeM12
Operational voltage24 V DC
Voltage tolerance DC-10 % / +15 %
Coil width16 mm
Power consumption DC1.5 W
Duty cycle100 %
Housing materialPolyphenylene sulfide, Polyamide, fiber-glass reinforced
Weight0.035 kg
Min. ambient temperature-10 °C
Max. ambient temperature50 °C
