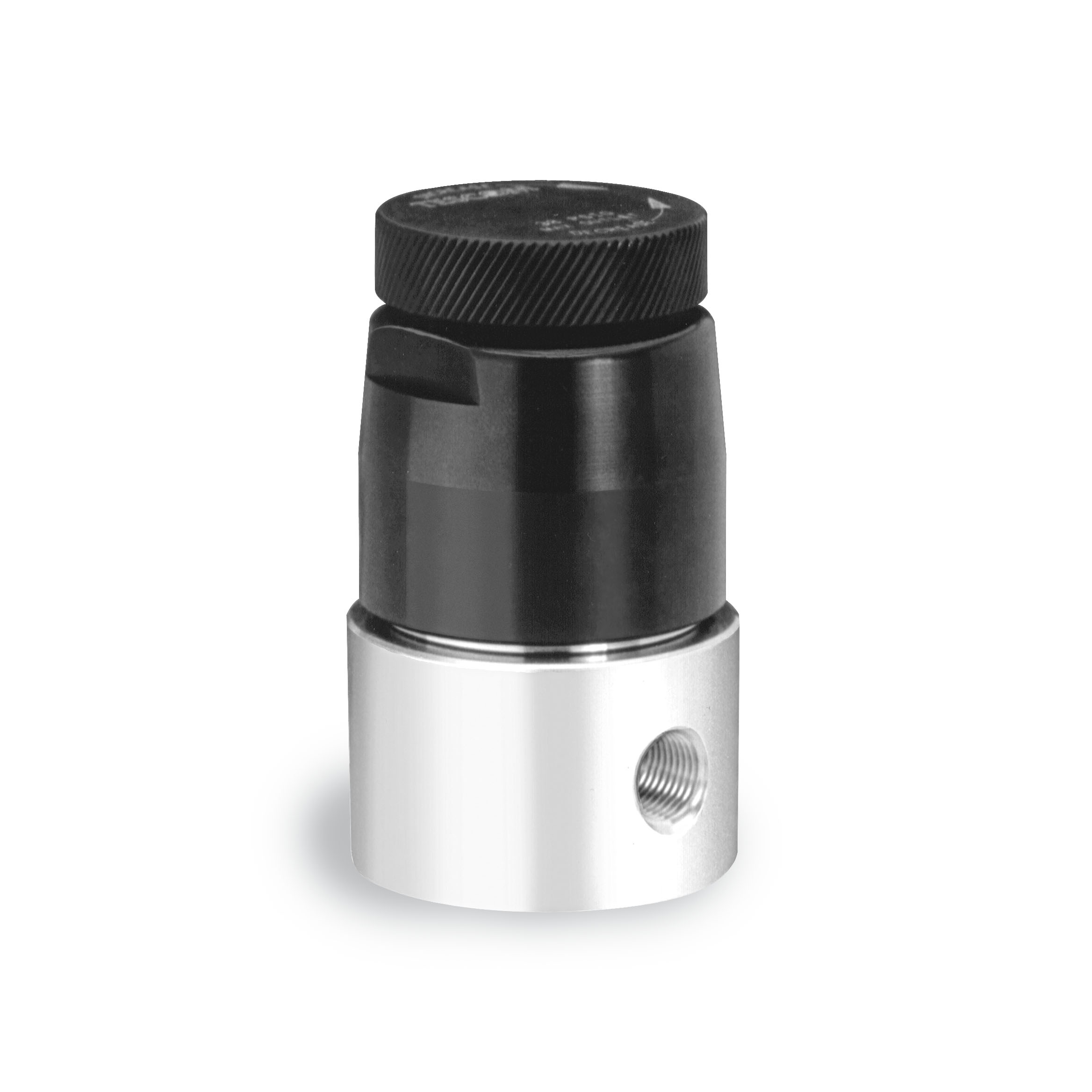

TESCOM™ 04 Series Pressure Regulator

Contact Sales
04 Series space saving and lightweight miniature regulator offers minimal internal volume and is easy to purge resulting in less retention. Ideal for analyzers, lecture bottles and sampling systems.

Specifications

Pressure RatingMaximum Inlet Pressure: 3500 psig / 241 bar<br>Outlet Pressure Ranges: 0-30, 0-60, 0-100 psig / 0-2.1, 0-4.1, 0-6.9 bar
MaterialBody: 316 Stainless Steel, Brass or Aluminum<br>Diaphragm: Elgiloy®<br>Seat: CTFE1, Teflon® or Vespel®<br>Friction Sleeve (inner): Teflon®
Remaining Parts316 Stainless Steel or Brass (on Brass models)
Operating Temperature-40°F to 165°F / -40°C to 74°C
Port Size & Type1/8, 1/4 NPTF
Flow CapacityCv = 0.06
Load TypeSpring
WeightStainless Steel or Brass models: 1 lb / 0.5 kg <br>Aluminum models: 0.5 lb / 0.2 kg
Additional InformationFor custom modifications or a complete system solution, please contact your local sales office.
