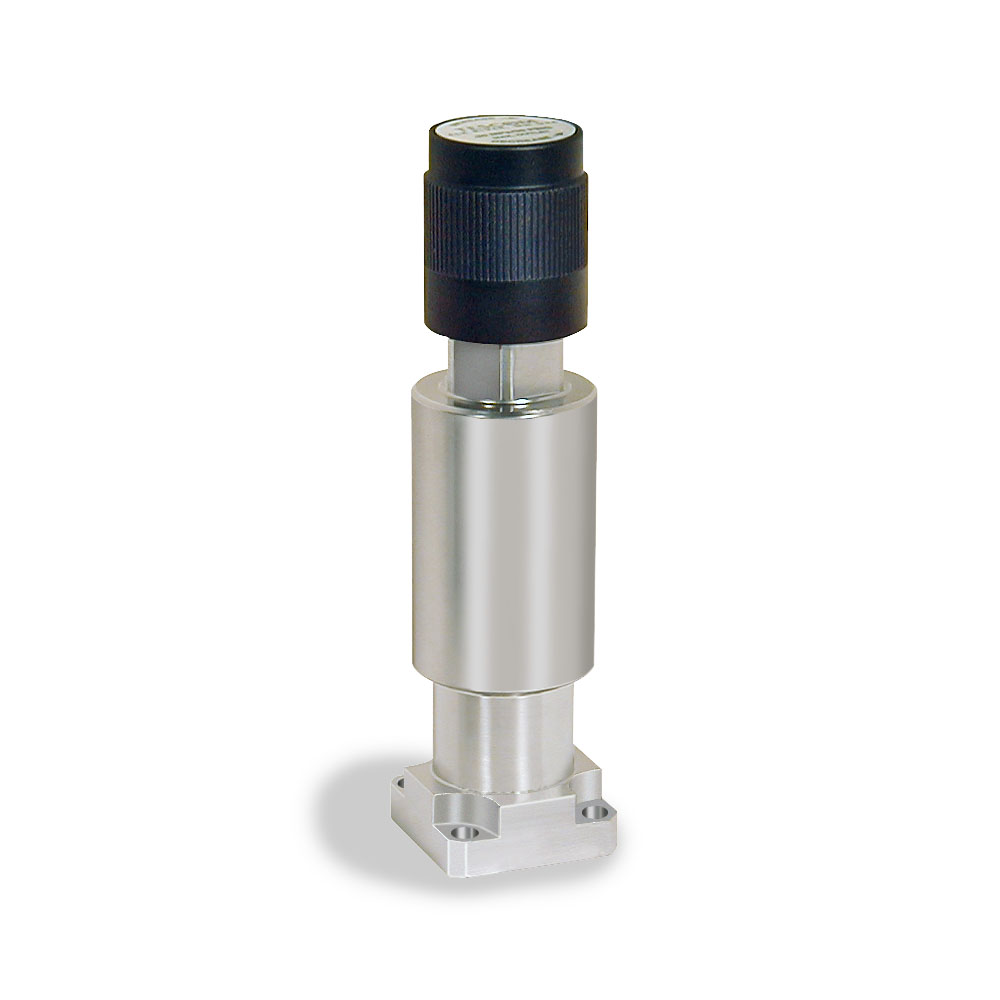

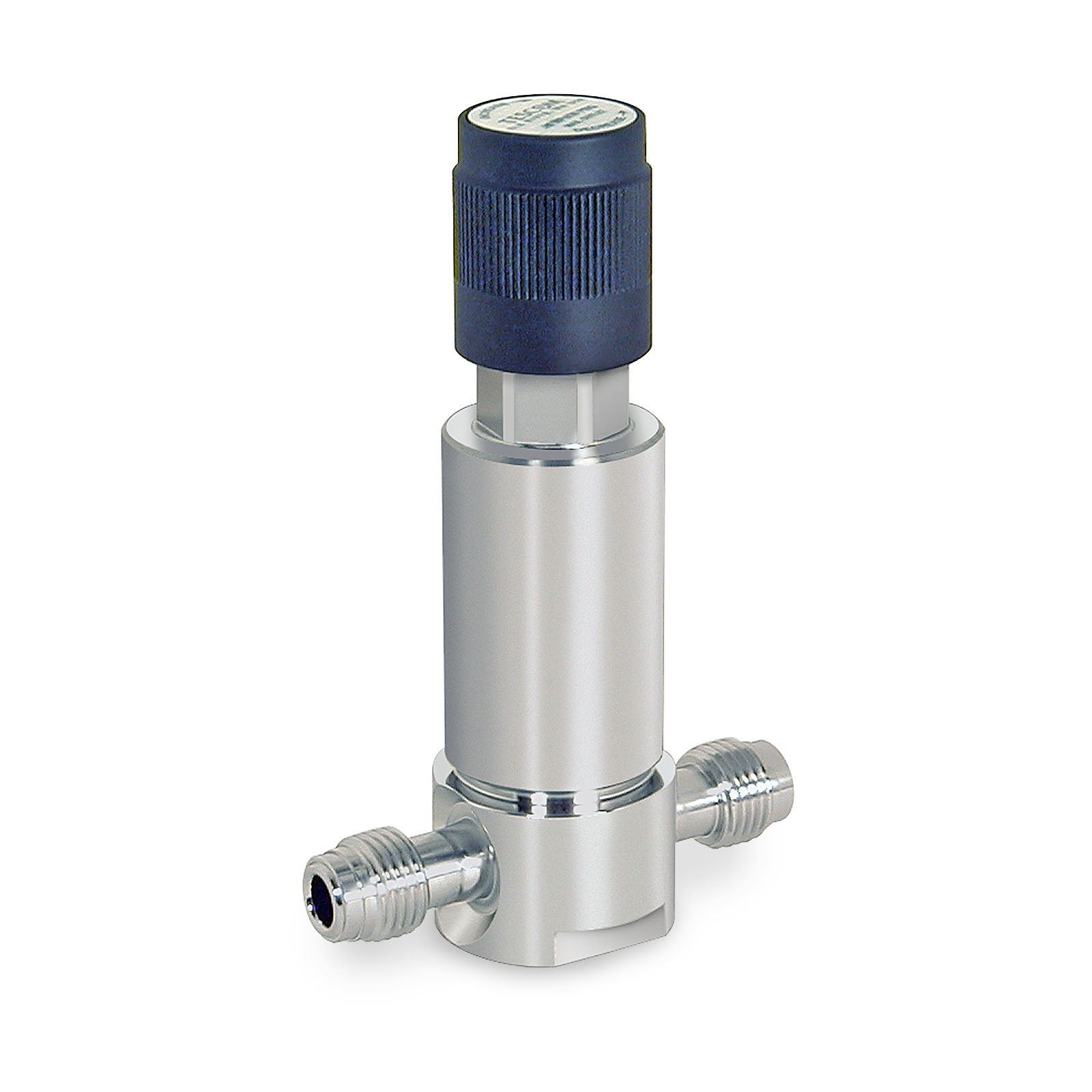

TESCOM™ 12 Series Springless Threadless Pressure Regulator

12 Series is a miniature ultra high purity IGS/VCR® pressure reducing regulator. The 12 Series offers 5 Ra or 10 Ra microinch finishes, tied diaphragm and internally springless and threadless design. It provides inlet pressures of 150 psig / 10.3 bar, outlet pressure from 250 mm Hg-15, 30, 60, 100 psig / 250 mm Hg-1.0, 2.1, 4.1, 6.9 bar with flow rates up to 120 SLPM. Ideal for use in OEM tools, gas boxes and low-pressure gas cabinets.

Specifications

Pressure RatingMaximum Inlet Pressure: <br>150 psig / 10.3 bar<br><br>Maximum Outlet Pressure:<br>250 mm Hg-15 psig / 250 mm Hg-1.0 bar<br>0-30, 0-60, 0-100 psig / 0-2.1, 0-4.1, 0-6.9 bar
MaterialBody: 316L VAR Stainless Steel <br>Diaphragm: Hastelloy®<br>Seat: PCTFE<br>Valve Stem: Hastelloy®<br>Remaining Materials: 316L VAR Stainless Steel
Operating Temperature-40°F to 140°F / -40°C to 60°C
ConnectionsWelded Fittings: 1/4 VCR® or Tube Stubs <br>Surface Mount: 1.125 or 1.50 footprint
Flow CapacityStandard: Cv = 0.04 <br>High Flow: Cv = 0.08
WeightVCR®, IGS: 0.60 lb / 0.3 kg <br>A-Style: 1.08 lbs / 0.5 kg
Additional InformationFor custom modifications or a complete system solution, please contact your local sales office.
