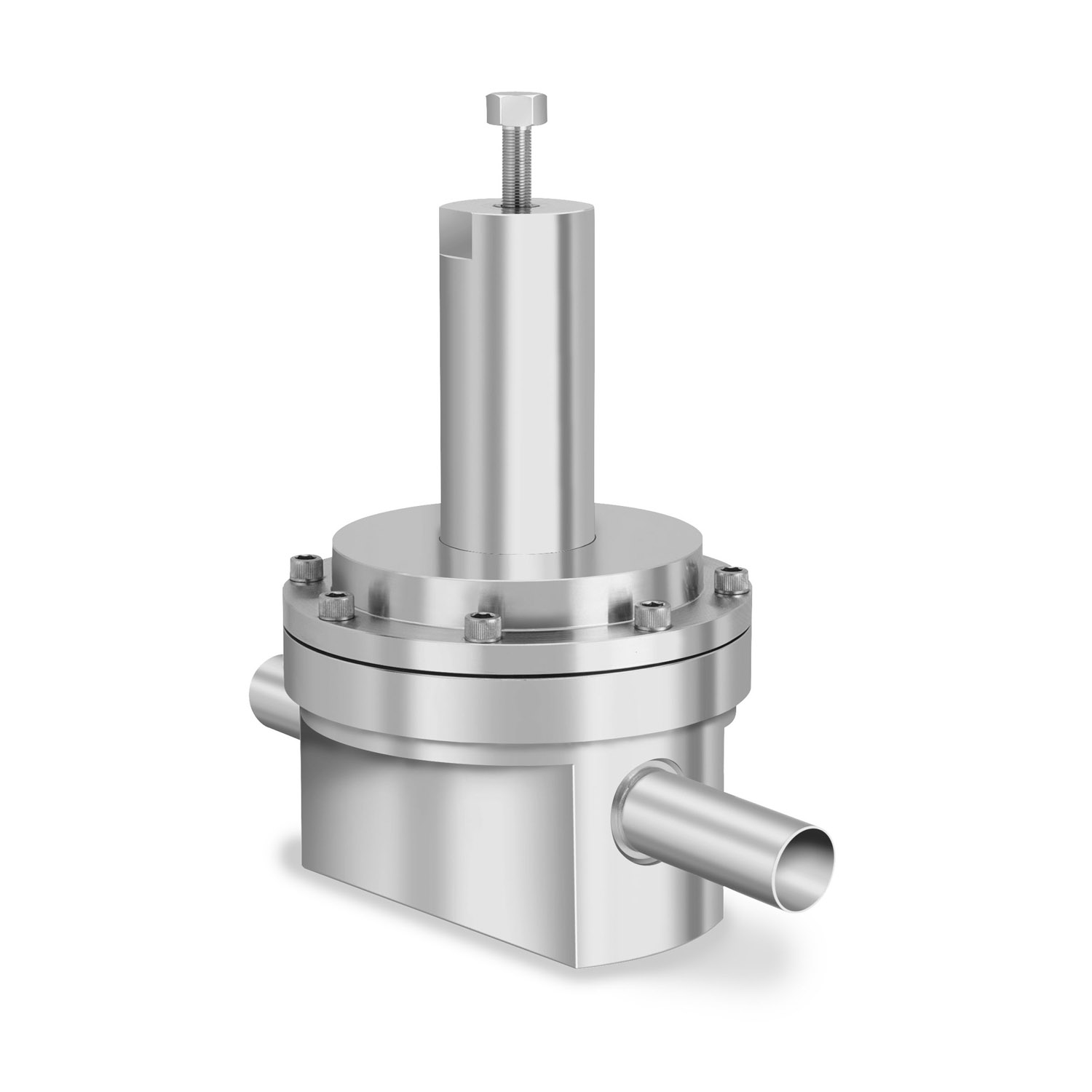

TESCOM™ 15 Series Electropolished Gas Pressure Regulator

15 Series is designed for ultra high flow applications of up to 28,300 SLPM. The 15 Series is an ultra high purity, 10 Ra, bulk gas pressure reducing regulator. Inlet of 300 psig / 20.7 bar, outlet up to 150 psig / 10.3 bar. Electro-pneumatically controlled option is available. Ideal for use in facility bulk gas delivery.

Specifications

Pressure RatingMaximum Inlet Pressure: 300 psig / 20.7 bar <br>Outlet Pressure Ranges: 130 and 150 psig / 9.0 and 10.3 bar
MaterialBody: 316L Stainless Steel <br>Diaphragm or Bellows: 316L Stainless Steel<br>Seat: PCTFE or Teflon®<br>Seal: Viton®<br>Remaining Parts: 316L Stainless Steel
Operating Temperature-20°F to 150°F / -29°C to 65°C
Port Size & Type3/4 Tubes<br>1 Tubes<br>1-1/2 Tubes<br>2 Tubes
Flow CapacityDiaphragm: Cv = 8.0 <br>Bellows: Cv = 14.0
Load TypeSpring, Air-actuated
Weight55 lbs / 24.9 kg
Additional InformationFor custom modifications or a complete system solution, please contact your local sales office.
