Specifications
| Pressure Rating | Maximum Inlet Pressure: 0-50, 0-150, 0-250 psig / 0-3.4, 0-10.3, 0-17.2 bar |
| Material | Body: 303 Stainless Steel, 316 Stainless Steel, or Aluminum 2024-T351<br>Diaphragm, O-Rings: Buna-N<br>Main Valve Seat, Seals: Teflon®<br>Remaining Parts: 300 Series Stainless Steel |
| Operating Temperature | -40°F to 165°F / -40°C to 74°C (For extended temperatures from -40°F to 400°F / -40°C to 204°C, please consult TESCOM) |
| Port Size & Type | Inlet & Outlet Port Type: SAE, NPTF, MS33649 <br>Inlet & Outlet Port Size: 1/4, 3/8, 1/2 |
| Flow Capacity | Cv = 0.60 |

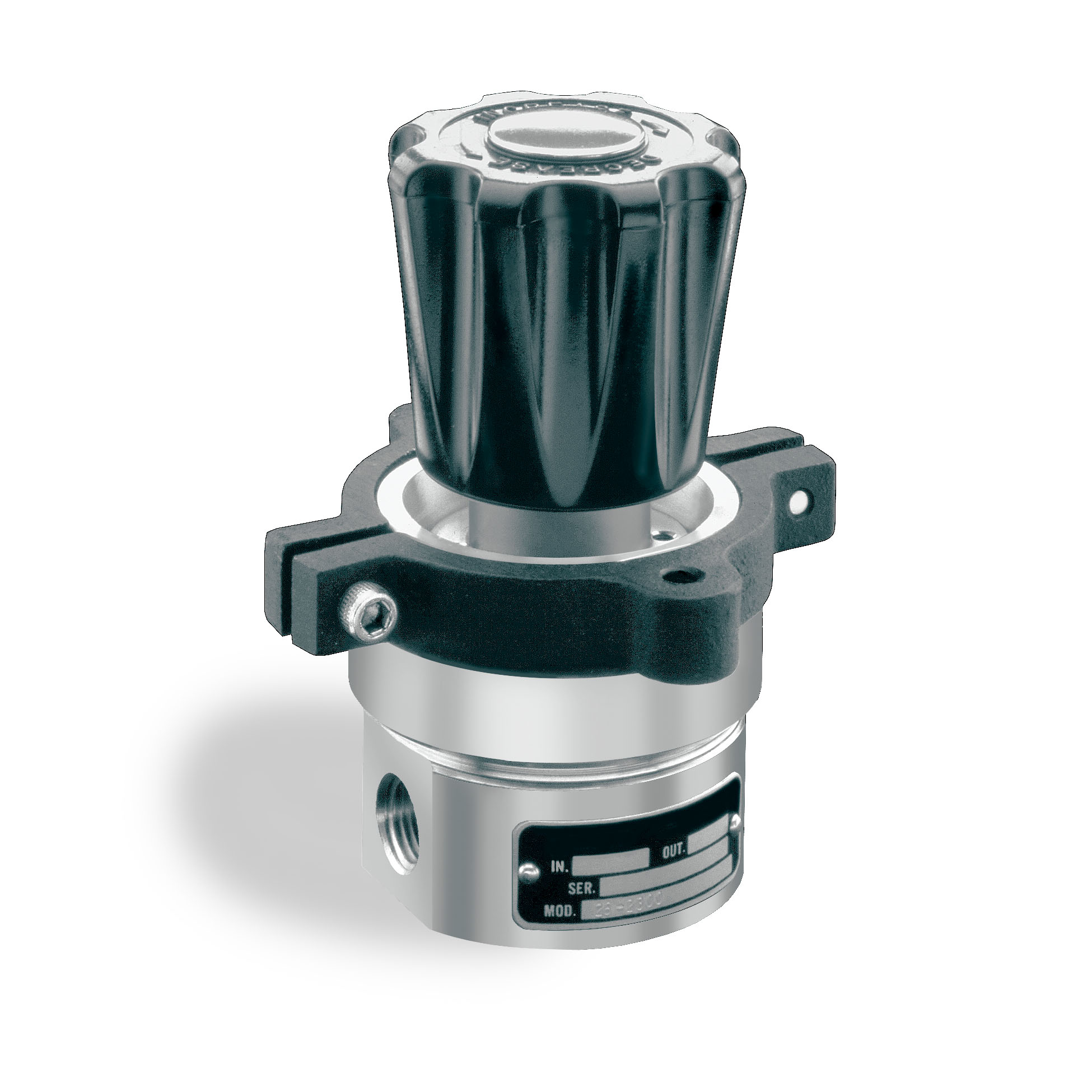

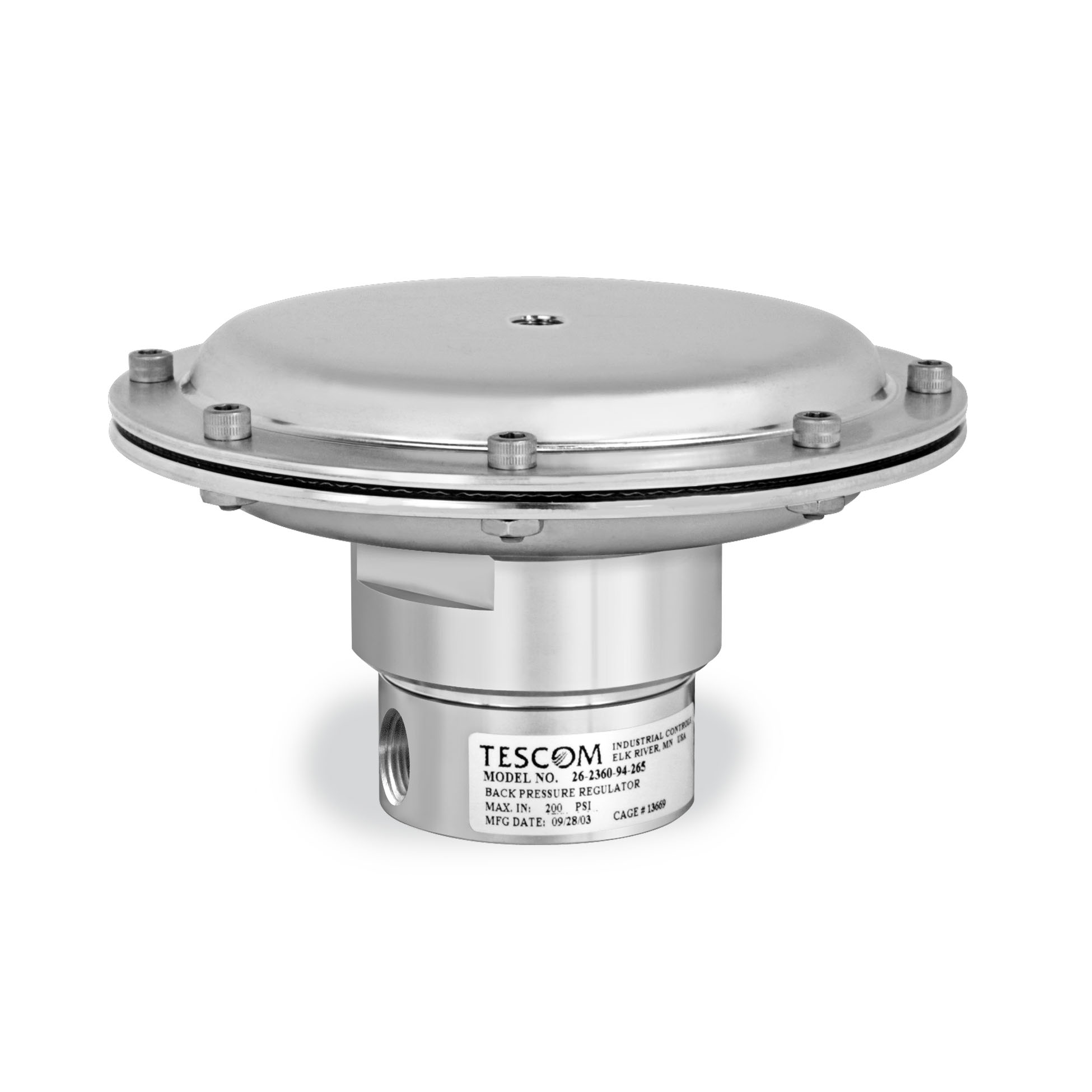

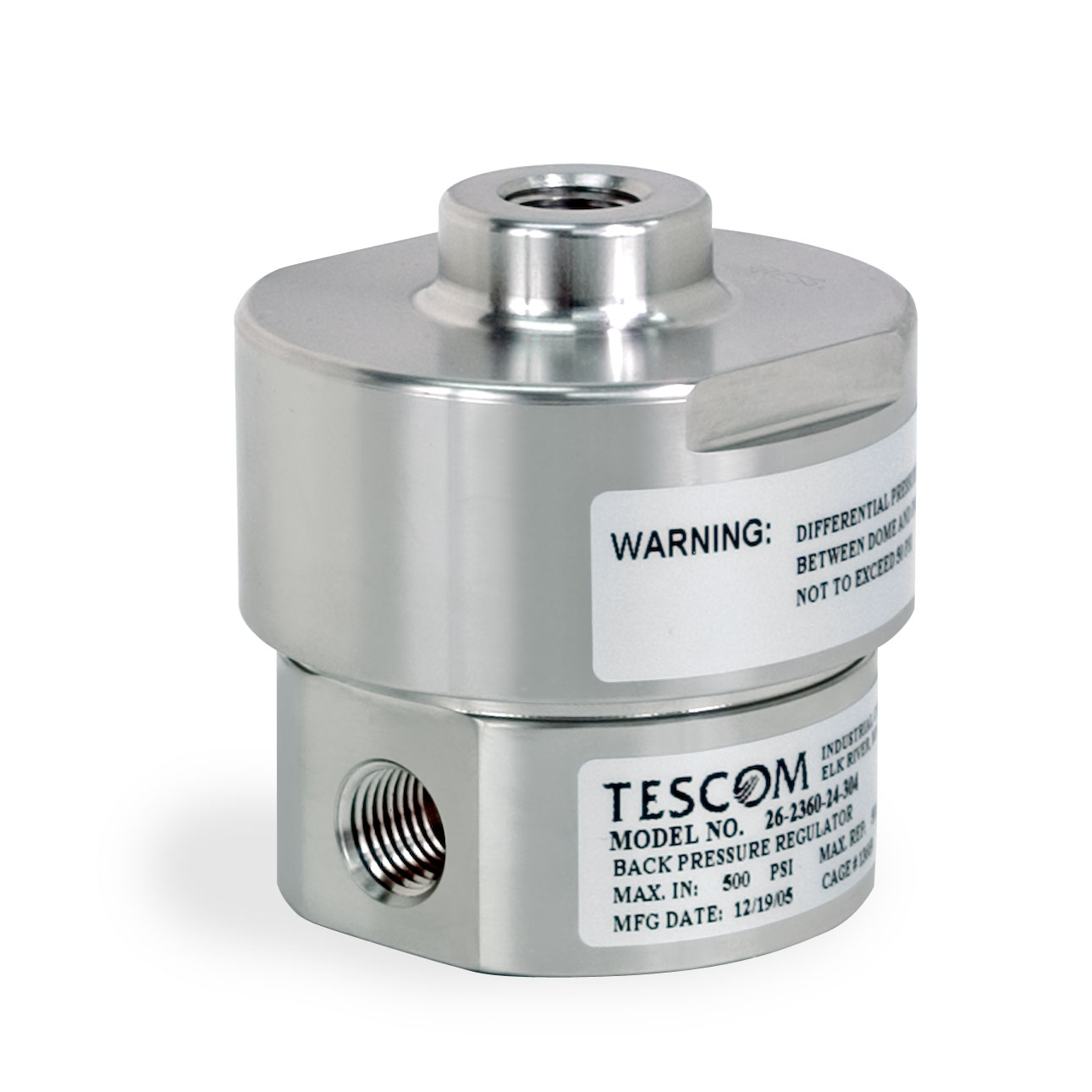

| Load Type | Spring, Air, Dome |
| Weight | Stainless Steel: 2.25 lbs / 1.0 kg<br>Aluminum: 1.25 lbs / 0.6 kg |
| Additional Information | For custom modifications or a complete system solution, please contact your local sales office. |
