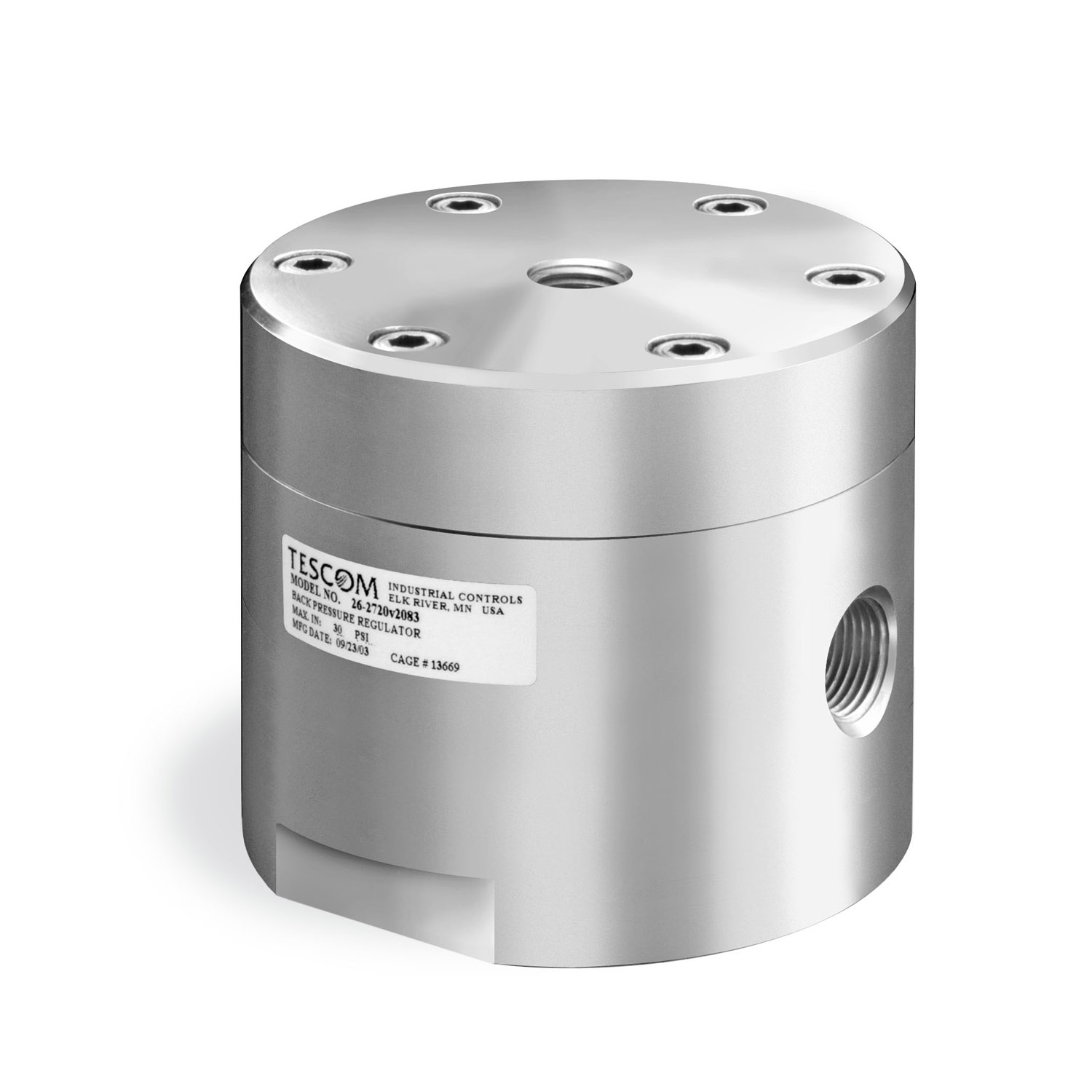

• PROD_AS_TESC_26-2700-Dome--96176

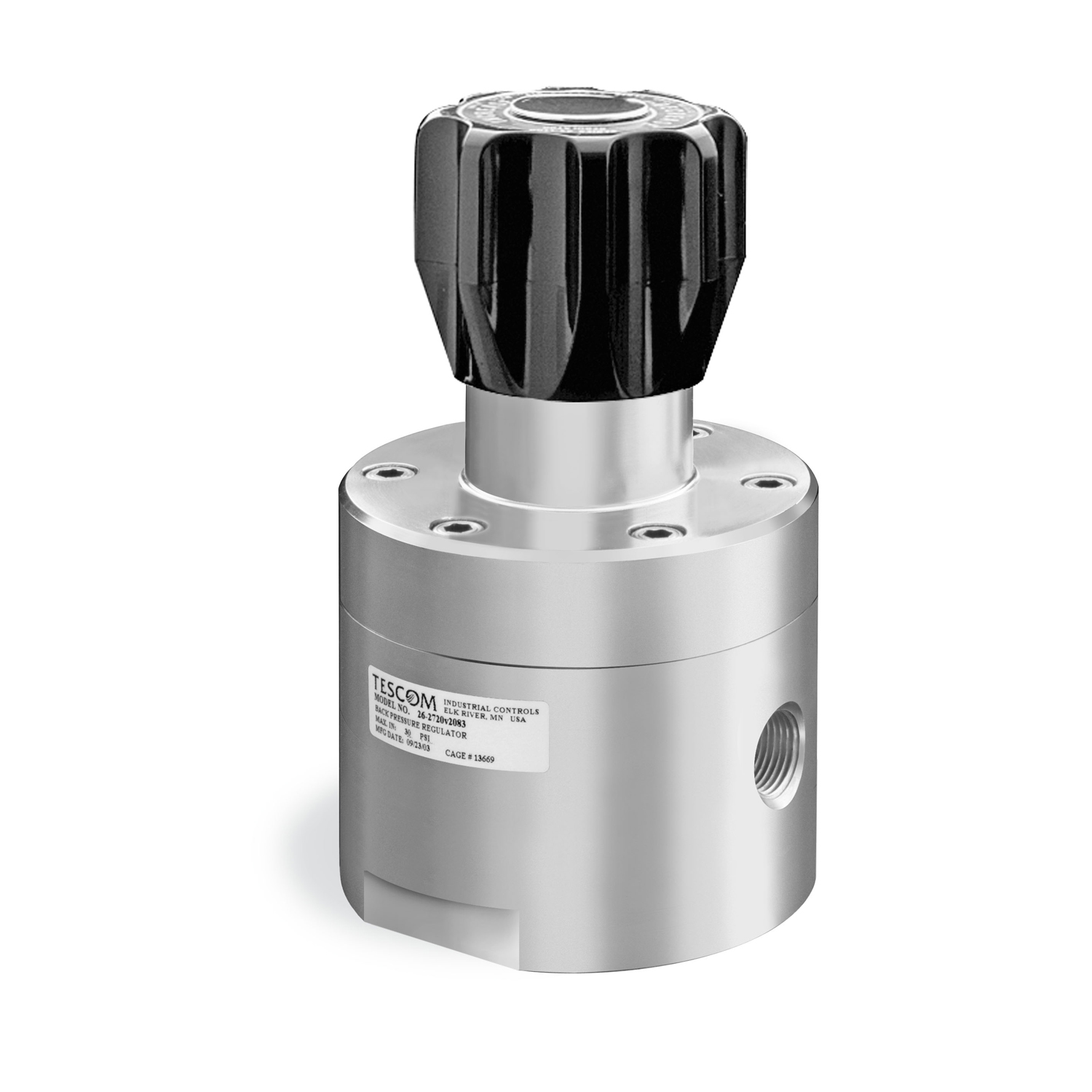

  • PROD_AS_TESC_26-2700-Spring--96178
Main Image
Main Image

TESCOM™ 26-2700 High-Flow Backpressure Regulator

26-2700 Series is a high flow, low pressure backpressure regulator with spring, dome and air loading options.Ideal for use in pump and compressor control and process pressure control. Suitable for high flow, low pressure chemical injection.

Specifications

Maximum Inlet PressuresAir Loaded: 450 psig / 31.0 bar <br>Dome Loaded: 1000 psig / 69.0 bar<br>Spring Loaded: 0 -<br>30, 80, 185, 300, 375 psig / 2.1, 5.5, 12.8, 20.7, 25.9 bar<br>
Seat, Main ValveCTFE, Vespel® SP21
Body, Bonnet, Back-capBrass, 303 Stainless Steel, 316 Stainless Steel
O-RingsBuna-N, Ethylene Propylene., Viton®
DiaphragmGylon®
Remaining Parts300 Series Stainless Steel, Nitronic 60
Operating TemperatureSee Part Number Selector
Port Size & TypeSAE, NPTF<br>1/2, 3/4
Flow CapacityCv = 2.0
Load TypeSpring, Air, Dome
Weight approximate:10.5 lbs / 4.8 kg
Additional InformationFor custom modifications or a complete system solution, please contact your local sales office.
