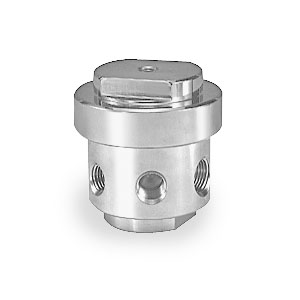

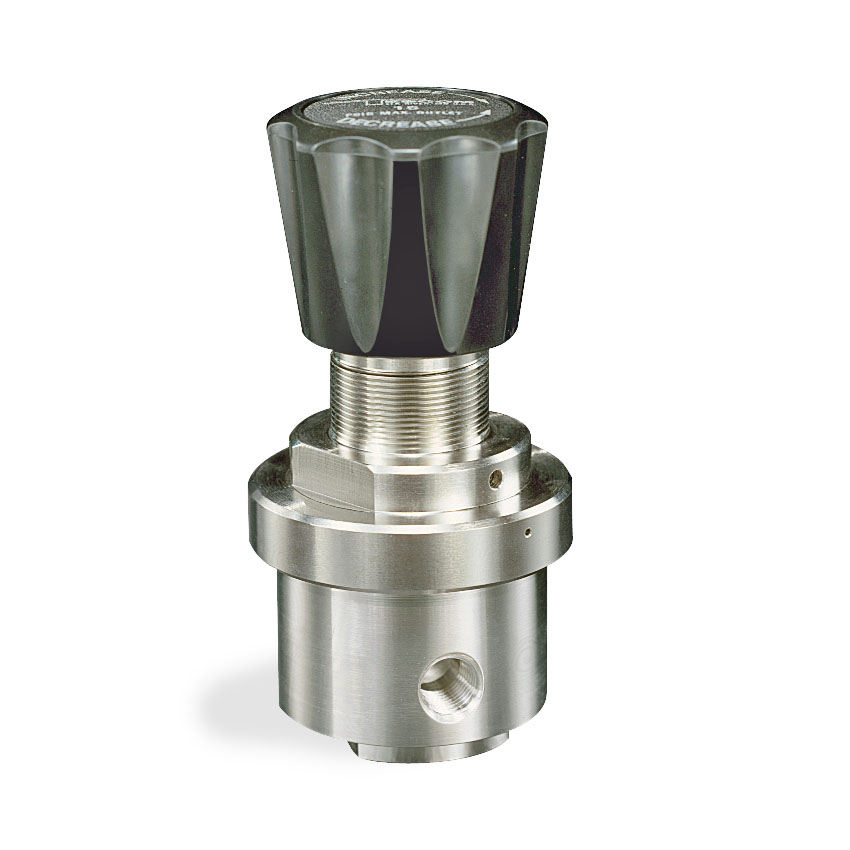

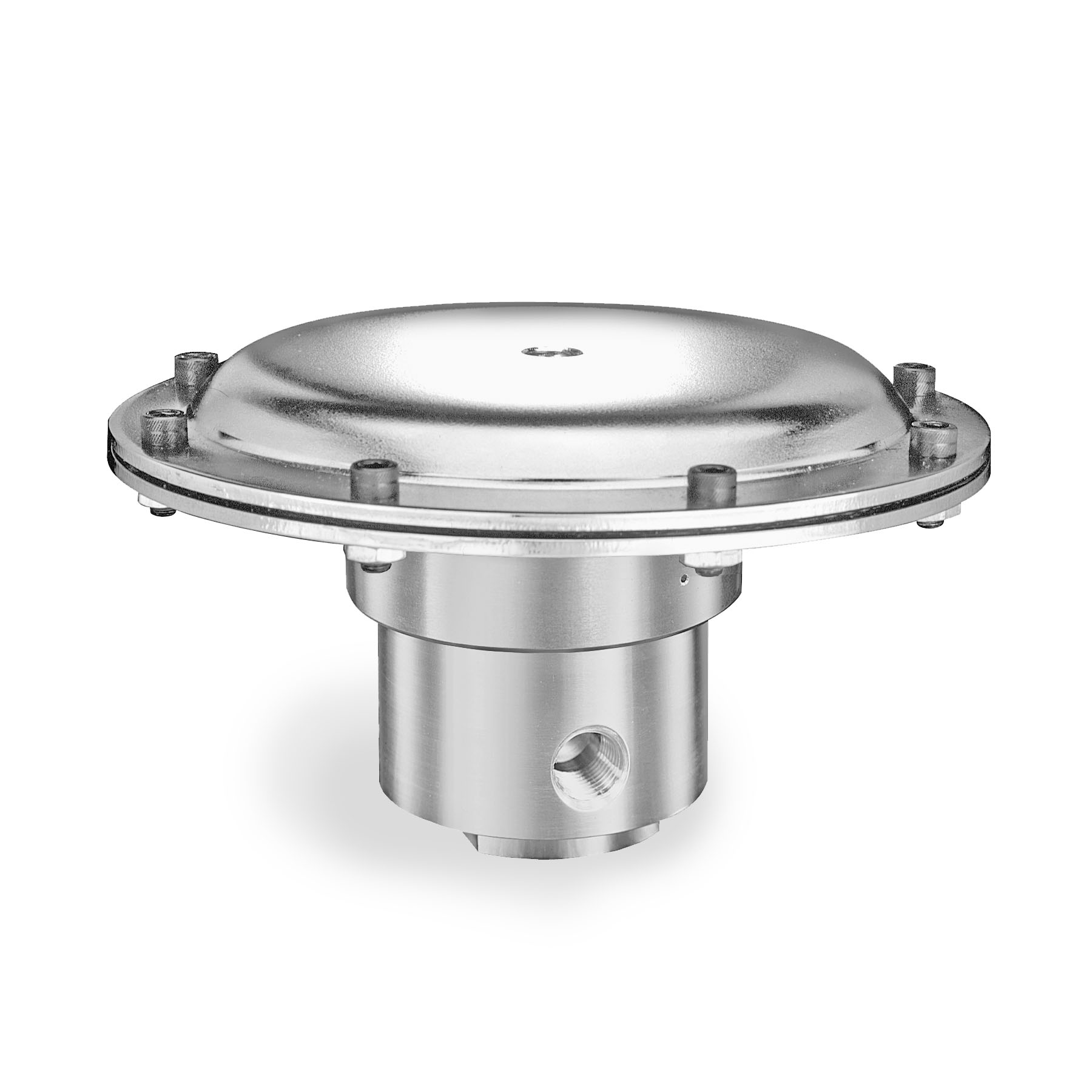

TESCOM™ 44-4600 Single Stage Regulator

Contact Sales
44-4600 Series is an extremely sensitive, high purity, single-stage regulator for specialty, flammable and industrial gases for low pressure and sub-atmospheric pressure control. Diffusion-resistant metal diaphragm seal ensures gas purity and leak integrity. Ideal for use in analytical systems, sample systems, process systems, pilot plants and calibration.

Specifications

Pressure RatingInlet Pressure Range: Atmospheric to 400 psig / 27.6 bar <br>Outlet Pressure Range: 50 mm Hg absolute - 15 psig / 1.0 bar
MaterialsBody & Diaphragm: 316 Stainless Steel <br>Seat: Teflon®<br>Spring (main valve): Elgiloy®<br>Spring (bias): 316 Stainless Steel<br>Remaining Parts: 316 Stainless Steel
Operating Temperature-40°F to 165°F / -40°C to 74°C
Port Size & Type1/4 NPTF
Flow CapacityCv = 0.24
Weight (without gauges)2.75 lbs / 1.2 kg
Additional InformationFor custom modifications or a complete system solution, please contact your local sales office.
